2023 Denver Tecnika Elite 5-Axis CNC Stone Bridge Saw

2023 Denver Tecnika Elite 5-Axis CNC Stone Bridge Saw

Low hours | Fully loaded

Purchased New May 2024

Machine Overview

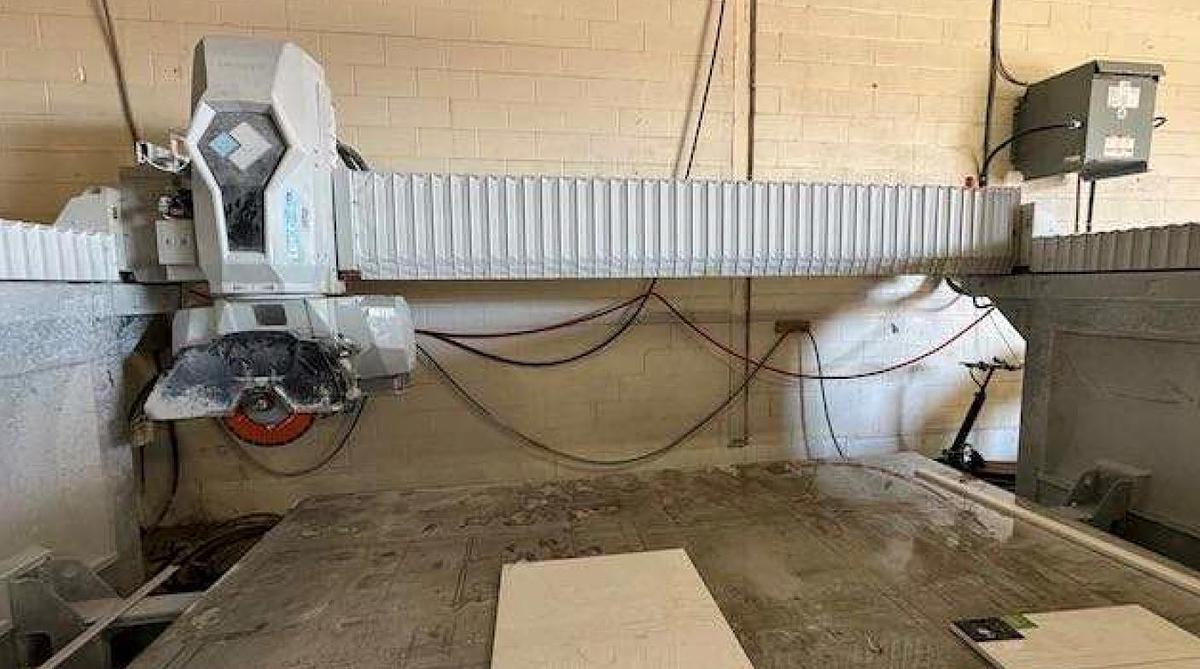

Italian-made Denver Tecnika Elite monobloc 5-axis interpolated CNC bridge saw designed for high-speed, high-precision fabrication of natural stone, engineered stone, quartz, porcelain, ceramic, and ultra-compact materials. Ideal for countertops, mitered edges, sink cutouts, curved/shaped profiles, nesting, and vein-matched work.

Key Features & Options

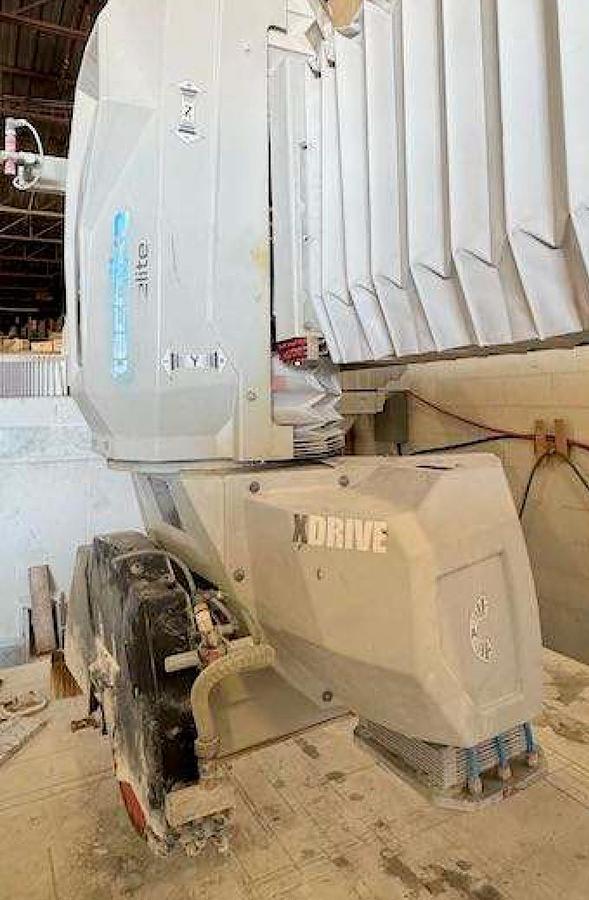

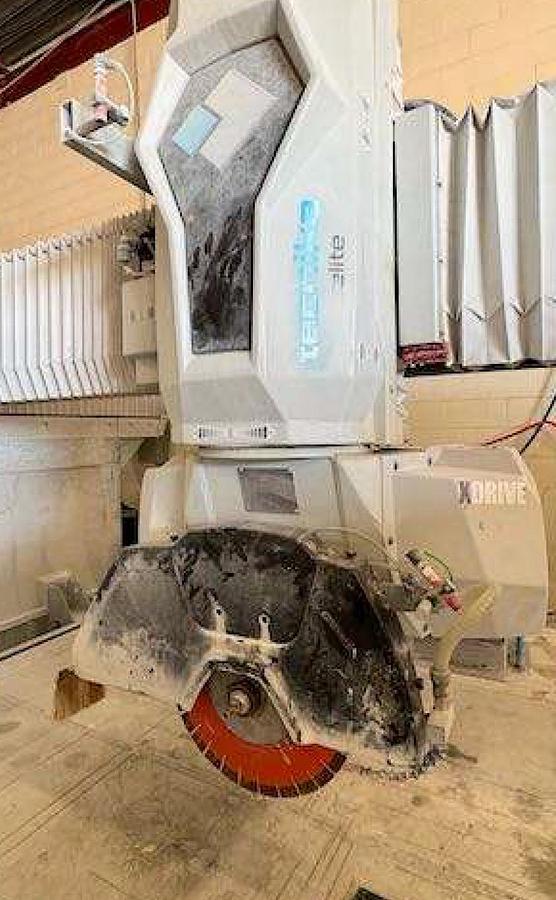

• 5-axis head with 370° and 0–90° A-axis motorized tilt
• 15 HP / 13 kW (S6) blade motor with ½" gas tool connection, adjustable speed up to 4000+ RPM
• X-Motion cut-and-move vacuum system with side table extensions
• Hydraulic tilting table with factory rubber (polyurethane) surface
• Touch probe for slab thickness detection
• Touch probe for automatic blade diameter detection

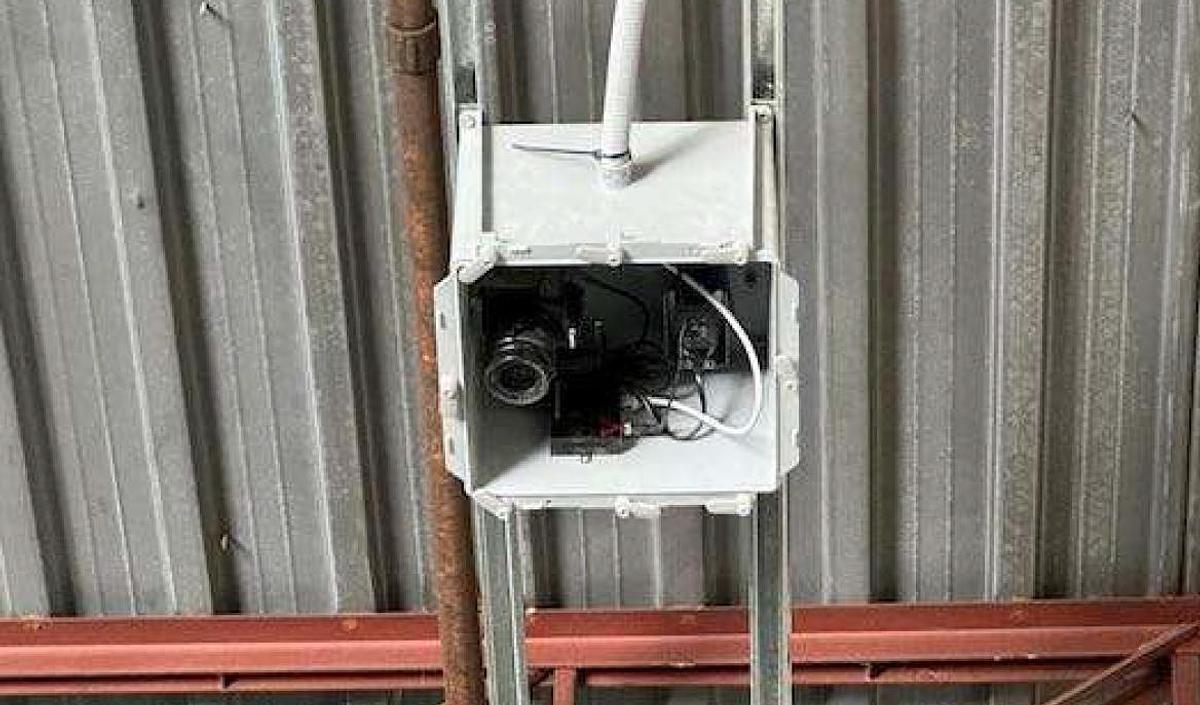

• Camera system for slab imaging

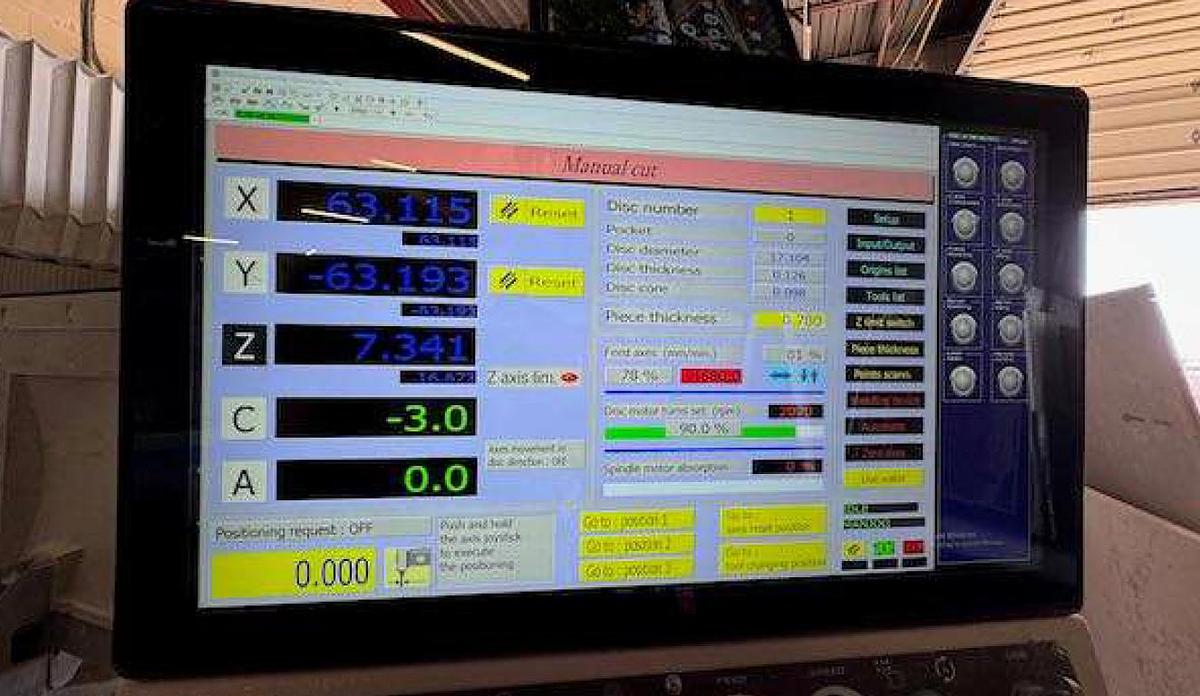

• PC software for cutting, routing, and multi-slab vein matching / book matching
• Line and point lasers
• CSA/ULc certified electrical system
• Safety front doors (noise-dampening ABS)
• 1-year parts & labour warranty (from original purchase)
• 60 hours of installation and training by Intel Power technician (completed)

Technical Specifications

Axes 5-axis interpolated (X, Y, Z, A, C)

X-axis stroke~3600 mm (approx. 142")

Y-axis stroke~2650 mm (approx. 104")

Z-axis stroke370 mm (approx. 14.6")

Working tableApprox. 3500 × 2265 mm

Blade diameter350–625 mm (14"–24.6")

Max cut thicknessUp to ~200–205 mm (depending on blade)

Motor15 HP / 13 kW (S6), adjustable RPM

WeightApprox. 3,800 kg (machine, ~8,400 lbs)

FootprintApprox. 6030 × 4900 × 2790 mm

Electrical400V 3-phase, 50A, 60 Hz (CSA/ULc)

WaterRequired (typical 30–40 L/min external + internal)AirRequired (typical compressor support)
