2012 SCM SI 400 EP CNC SLIDING TABLE SAW

2012 SCM SI 400 EP CNC SLIDING TABLE SAW

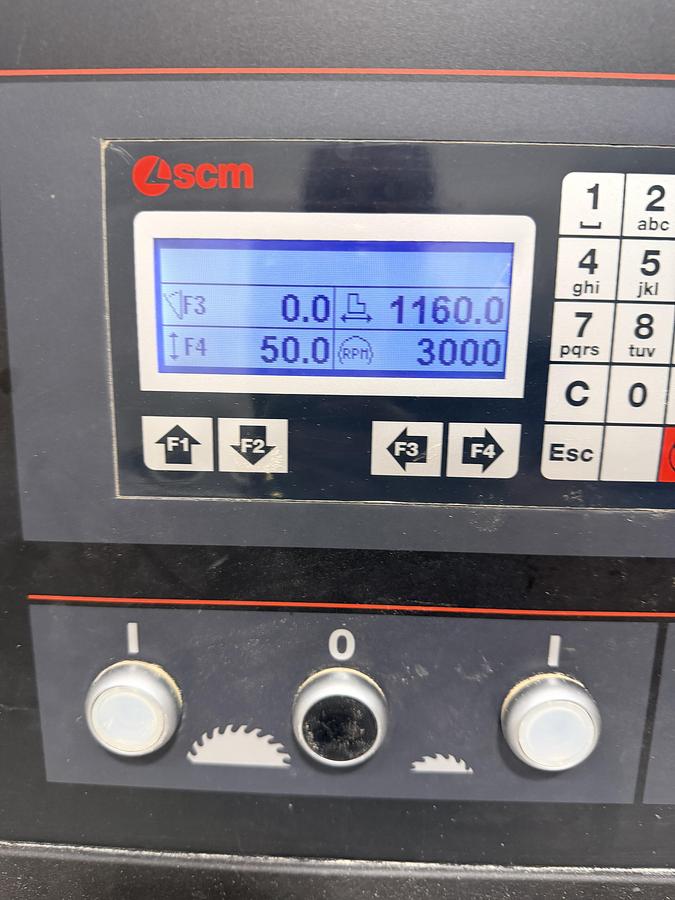

The “EP” is the electronic programmer for blade height, tilt, and (on many setups) rip fence.

• Powered blade height and tilt with digital/programmable control
• Independent scoring unit for chip-free laminate/melamine cuts

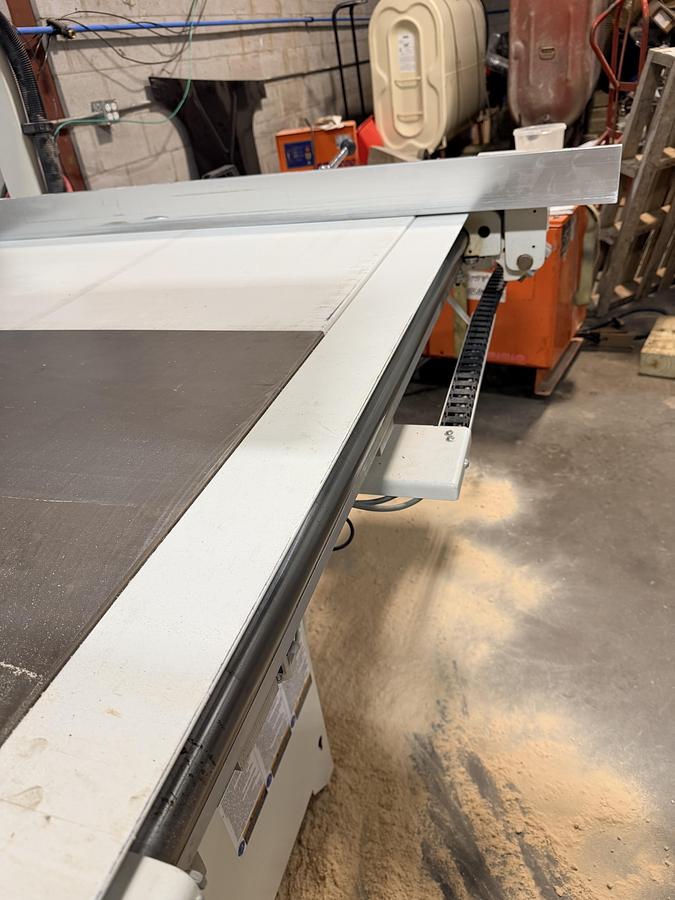

• Full-size sliding table for 4x8 / 5x10 sheet work
• Cast-iron table and dedicated rip fence with micrometric adjustment
• Start/stop on sliding table (if equipped)
• Overhead blade guard and outfeed support
• Max main blade: 400 mm (15.75")
• Independent scoring blade: 120 mm, ~8500 rpm
• Cut height: 140 mm @ 90° / 97 mm @ 45°
• Blade tilt: 90°–45°, powered rise/fall/tilt
• Sliding carriage / squaring stroke: typically 3200 mm (10.5')
• Rip capacity: typically 1270 mm (some machines 1000–1500 mm)
• Main motor: 7–9.5 HP (7–8 kW) class, 3 speeds 3000 / 4000 / 5000 rpm
• Scoring motor: independent, ~1.3–1.7 HP
• Control: READY / Easy electronic programmer (store repeat jobs)
• Carriage: SCM arch-ground steel slideways (±0.05 mm over full length)
• Dust: 120 mm base + 80–100 mm overhead guard
• Power: 3-phase (208/230/400/600 V )
