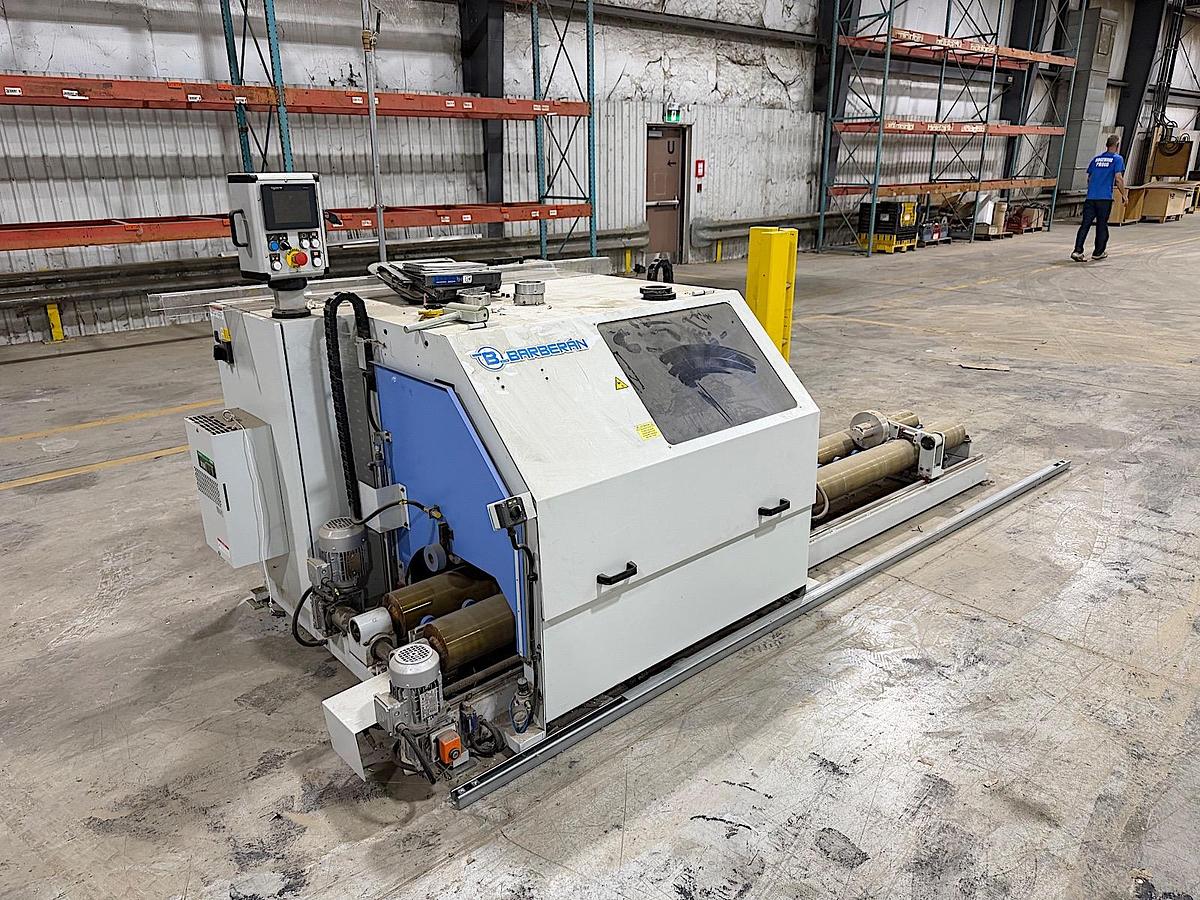

2022 Barberan TP-1-E Roll Cutting Foil Paper Saw

2022 Barbarian TP-1-E CNC Roll Cutting Foil Paper Saw

Professional paper foil / decorative foil roll cutting machine by Barberan. Designed to cut segments (widths) directly from mother rolls/spools using a direct-driven circular saw blade. Ideal for panel laminating, profile wrapping, furniture, and surface finishing operations.

Key Features

• Cuts paper foil, CPL, veneer, and similar materials directly from the mother spool
• Circular saw with direct motor drive

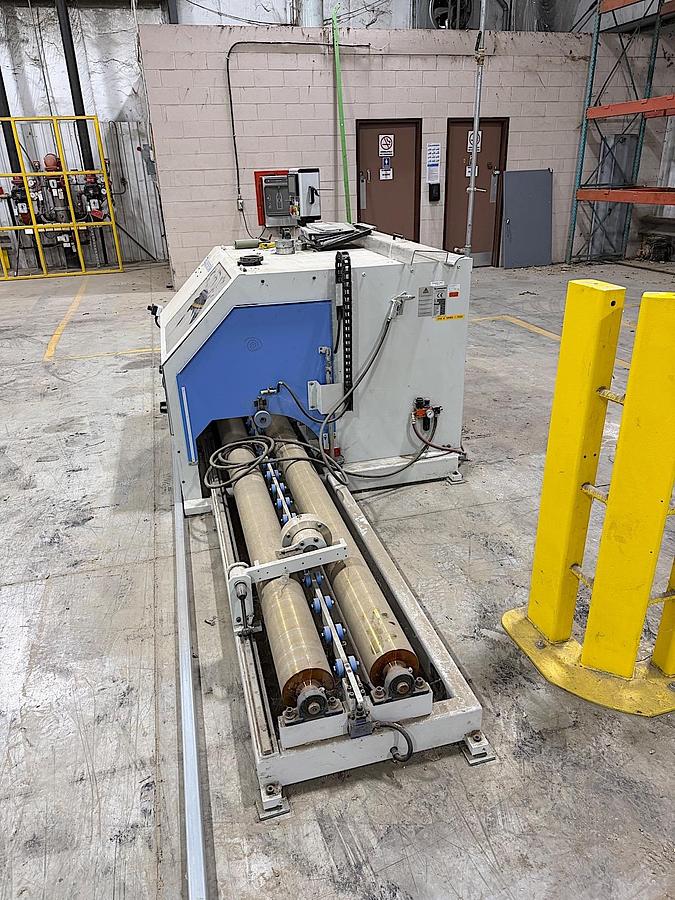

• Spool rests on two motorized rollers that rotate during the cut for clean, controlled cutting
• Frequency inverter control of saw speed — faster approach/retract than cutting speed for efficiency and reduced cycle time
• Quick spool changeovers (minimal setup between different widths/formats)
• Robust industrial construction typical of Barberan equipment

Typical Specifications (TP series / TP-1 class)

• Max. spool/roll width: Up to 2200 mm (86.6")
• Cutting method: Direct-driven circular saw blade
• Support system: Dual motorized rollers
• Speed control: Frequency converter / inverter for saw approach, cut, and retract
• Primary materials: Paper foil, CPL, veneer
