2015 Homag BMG 311 Vantage 12L

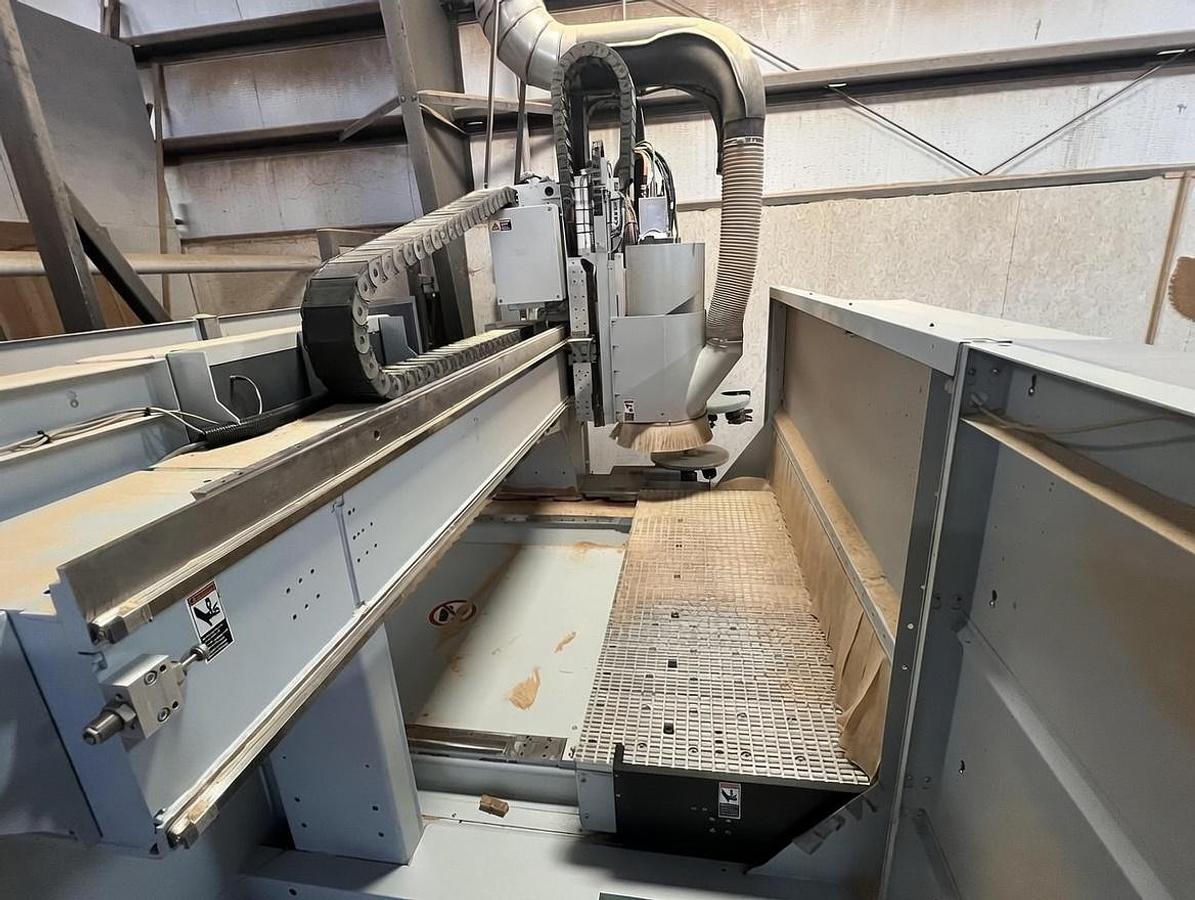

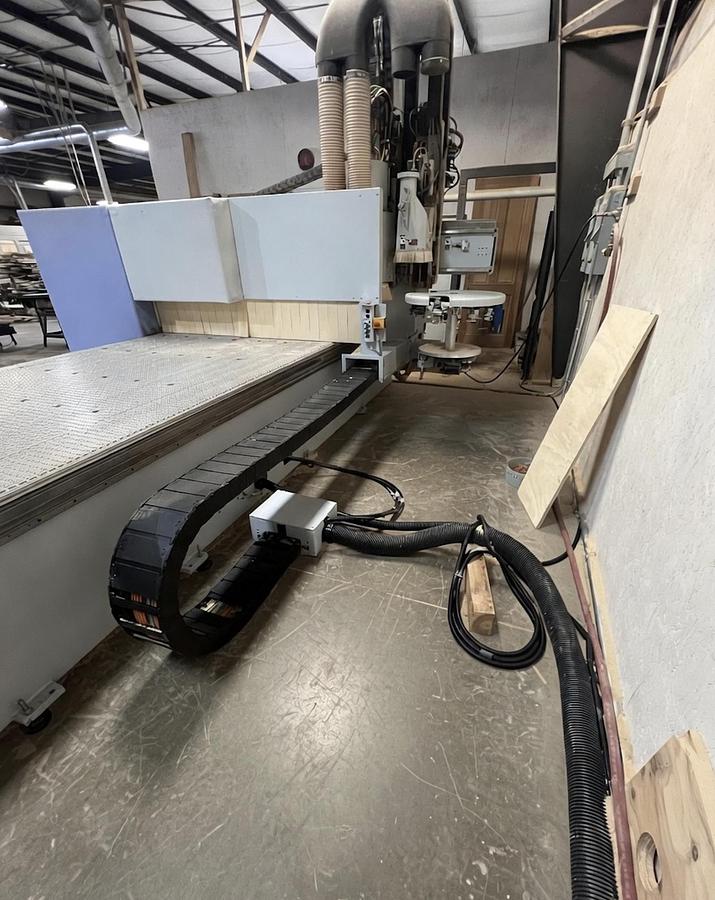

2015 Homag BMG 311 Vantage 12L Gantry CNC Processing Center

Model: BMG 311 Vantage 12L

Year: 2015

Condition: Excellent used condition – High-performance industrial machine ready for production

Overview

The Homag Vantage 12L is a robust gantry-style CNC machining center designed for complex 4-axis operations, including routing, drilling, and contouring on large panels. Ideal for high-volume furniture, cabinetry, solid wood, and non-ferrous material processing.

Key Features

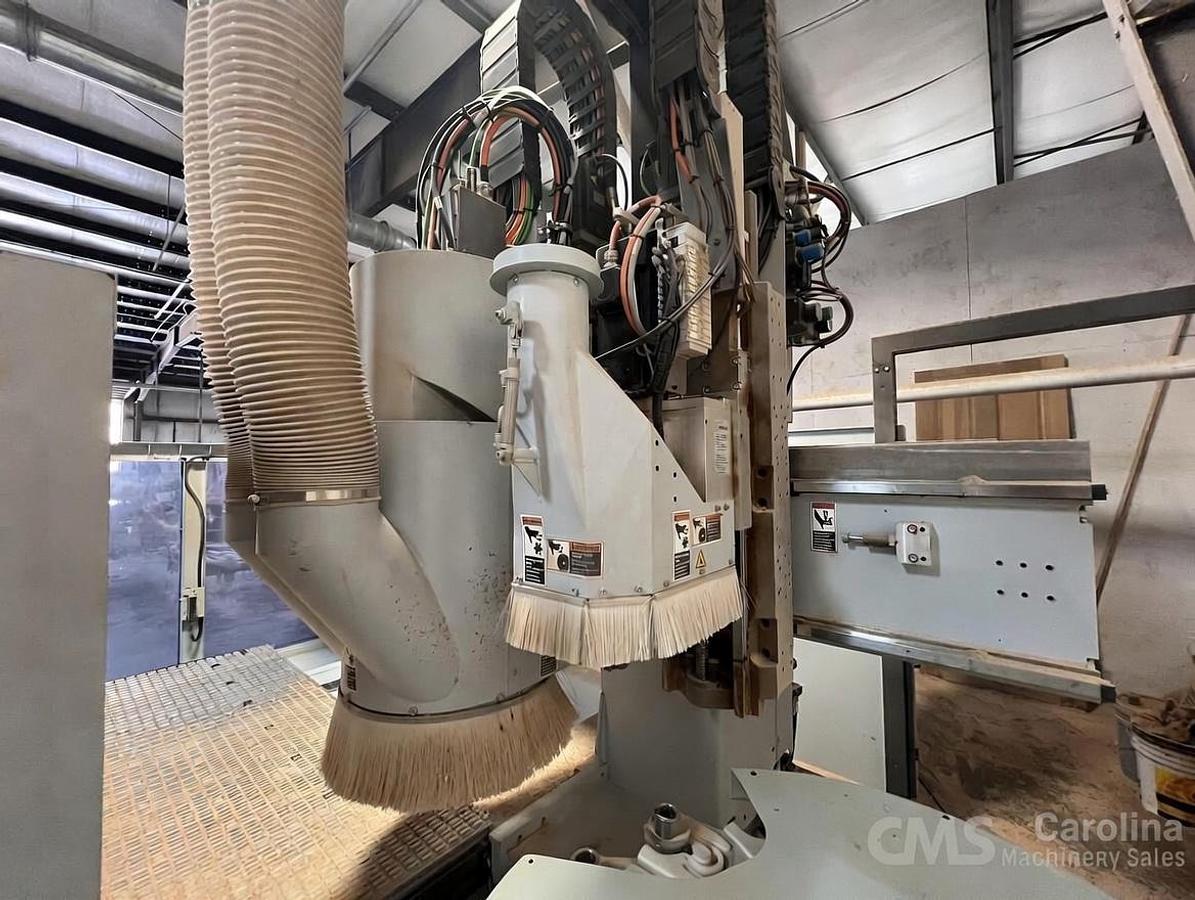

• 4-Axis Capability — Heavy-duty router spindle with C-axis and Flex5+ interface for full 360° rotation
• 13-Spindle Boring Head — L-shaped configuration (9 vertical + 4 horizontal)
• 14-Position Tool Changer — Plate-type HSK63F ATC (D=130 mm) mounted on the gantry

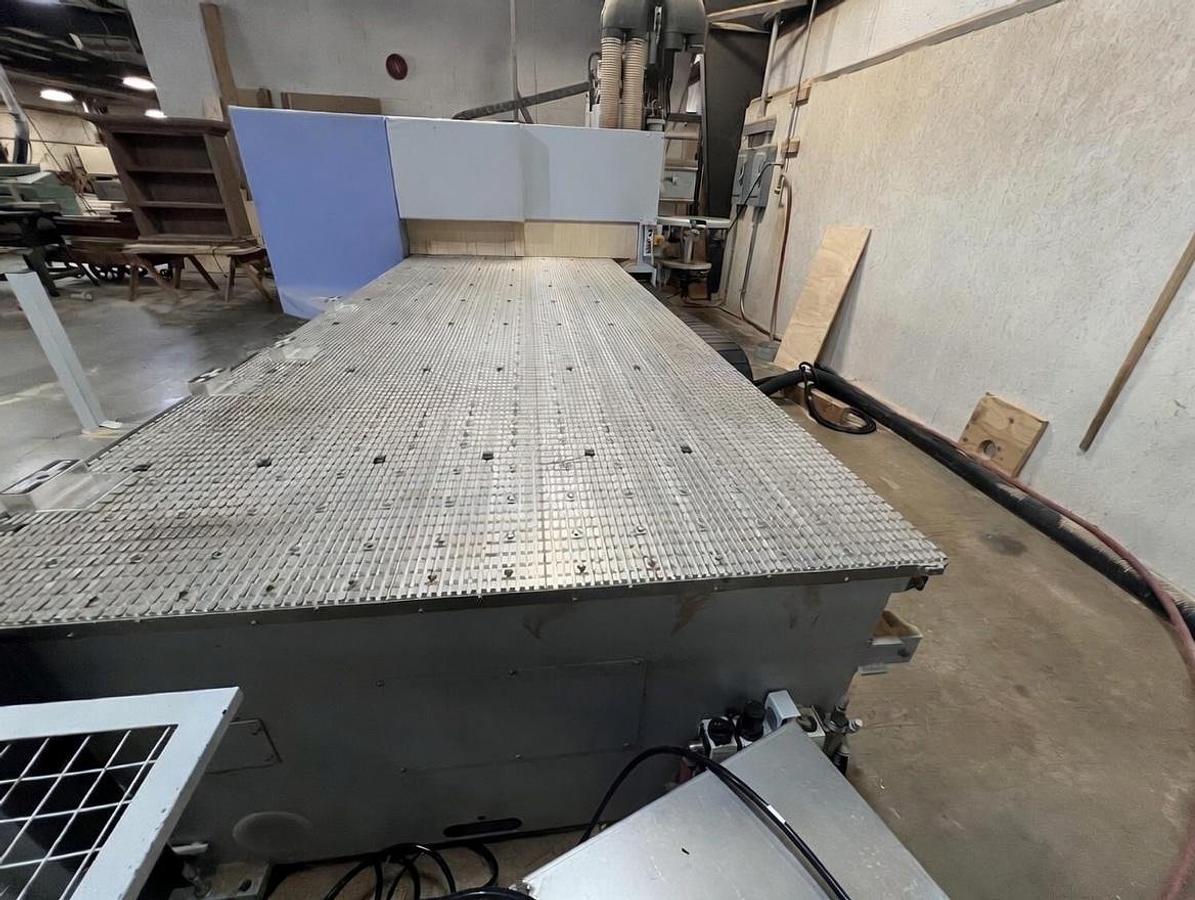

• Table — Large R-type cross-grooved vacuum Matrix table (approx. 4,200 mm x 1,550 mm)
• Powerful Spindle — 12 kW (16 HP) / 15 kW (20 HP) liquid-cooled HSK63F, 1,000–24,000 RPM

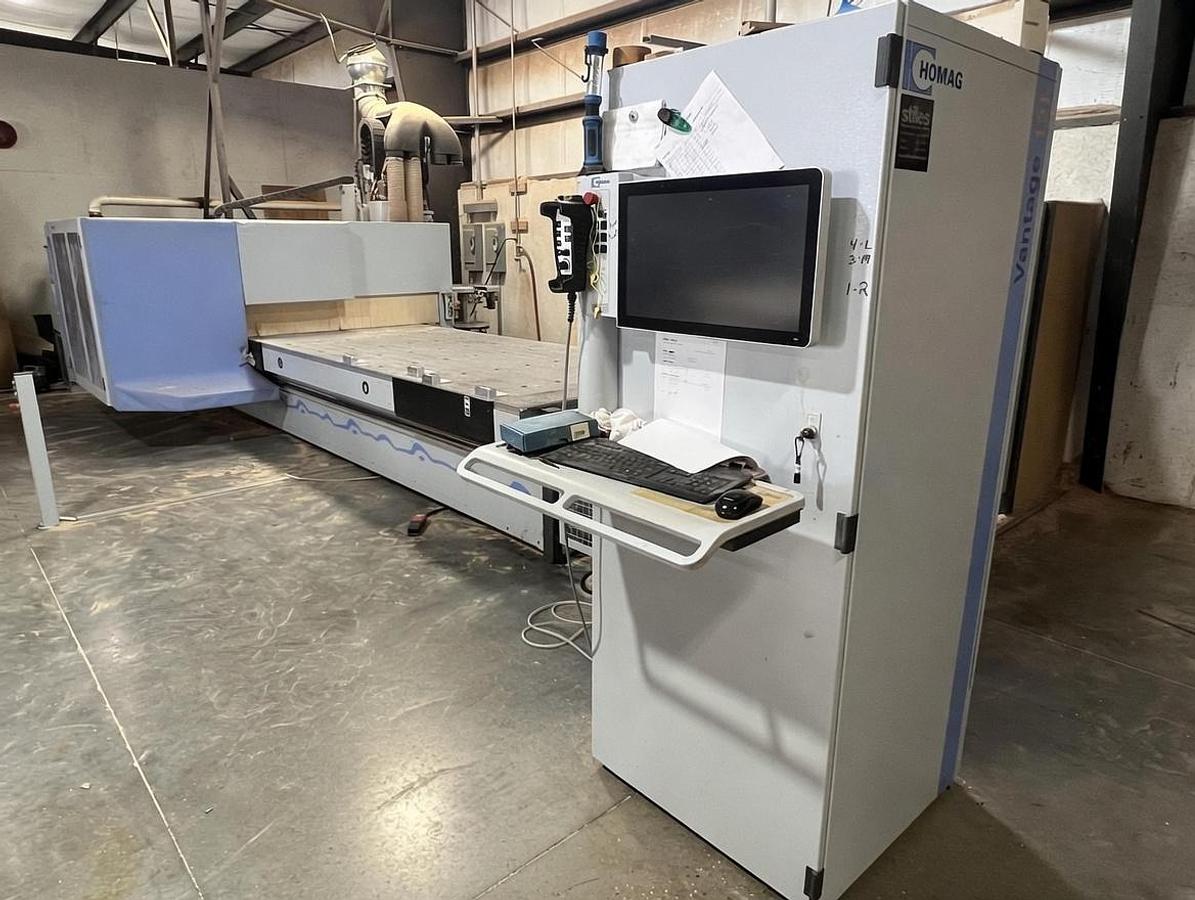

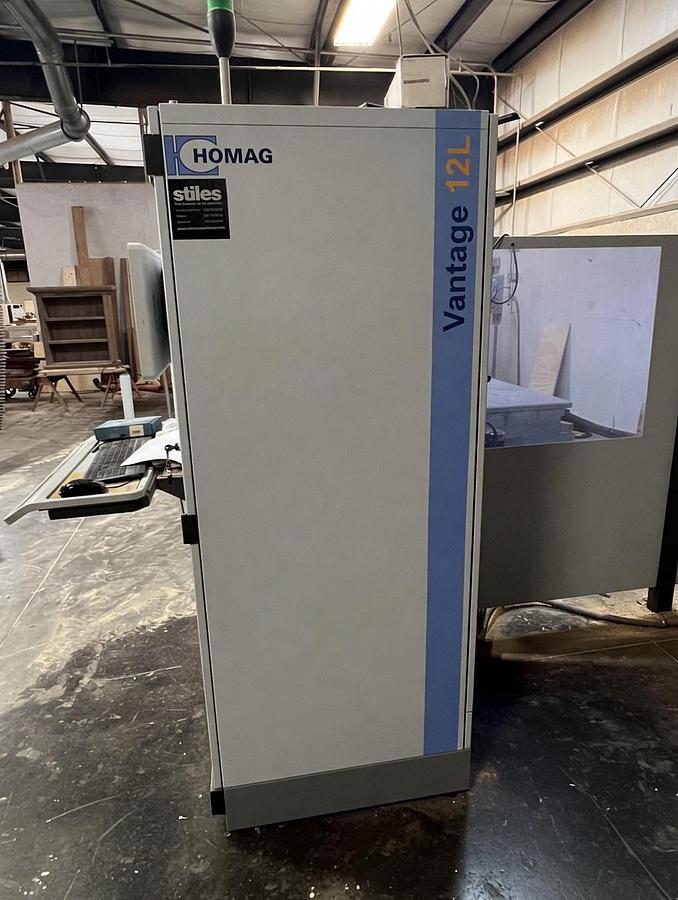

• Control — PowerControl PC86 with PowerTouch multi-touch interface and woodWOP software

Technical Highlights

• Working Area: Generous 5' x 12'+ table with pendulum / alternating operation capability
• Axis Travels: Large X/Y strokes for big parts (see full specs)

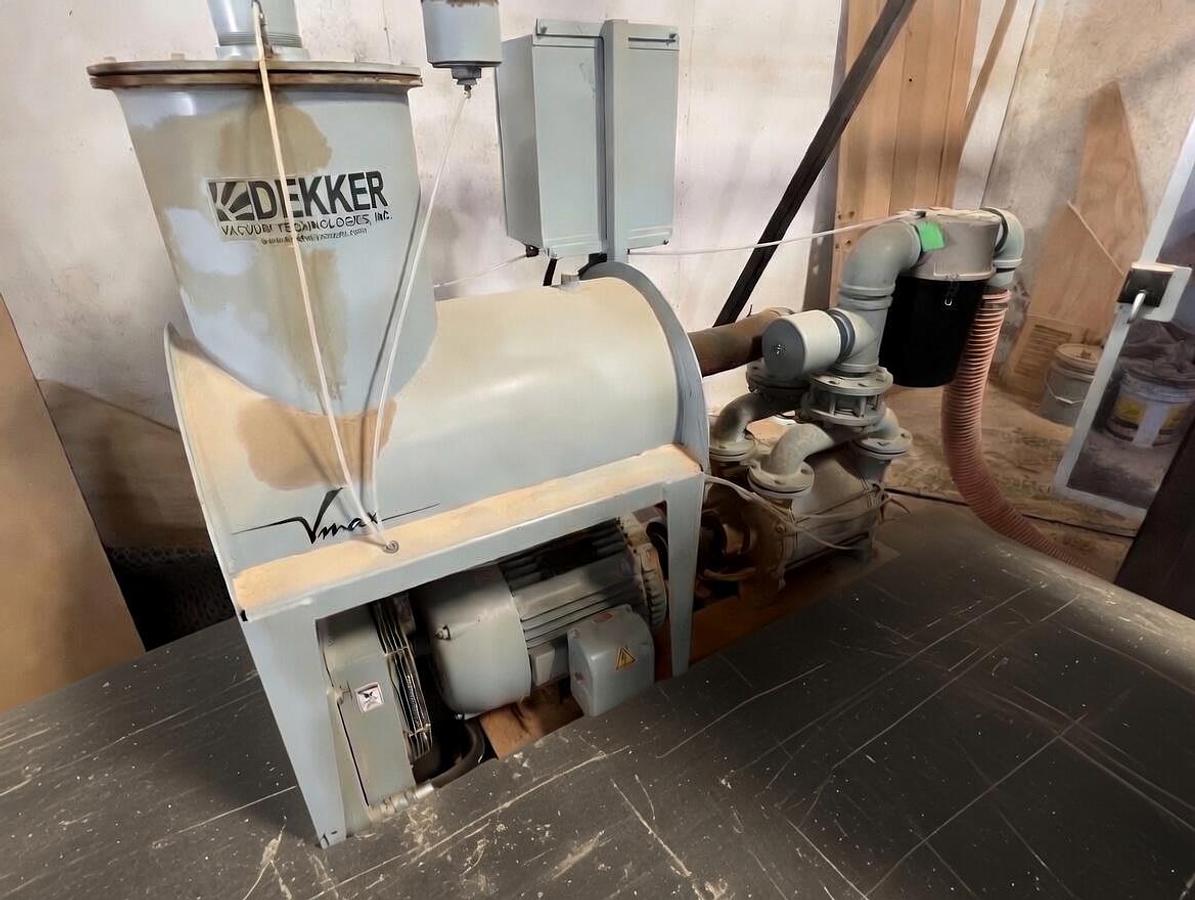

• Vacuum System: High-capacity with multiple pumps
• Automation Ready: Prepped for external loading/unloading and safety fencing

Ideal For

• Cabinet and furniture manufacturers
• Architectural millwork
• Shops needing 4-axis flexibility and high throughput
