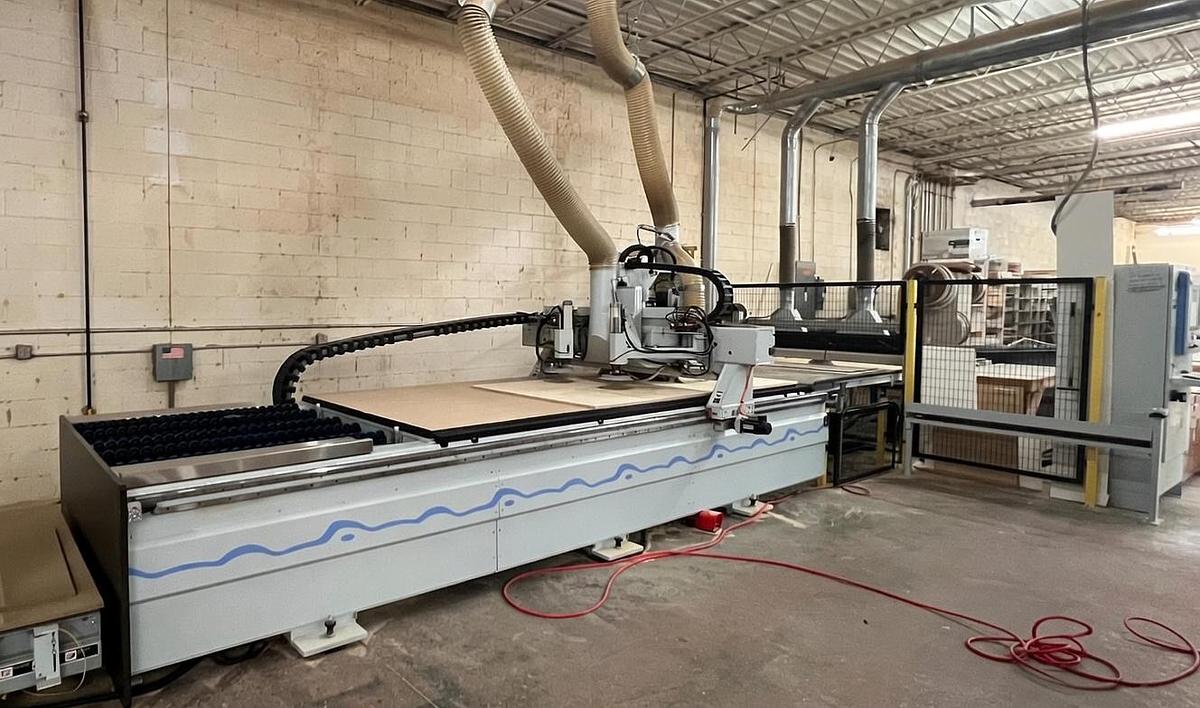

2015 Homag Vantech 512 Centateq N-300 Auto Load / Unload CNC Router

2015 Homag Vantech 512 Centateq N-300 Auto Load / Unload CNC Router

• Full Auto Loading Cell – Gantry-mounted vacuum loader with scissor lift for automatic sheet feeding from stack
• Automated Push-Off & Offloading – Conveyor system for finished nests with simultaneous load/unload capability
• Nesting-Based Machining – Optimized for high-volume panel processing (cabinets, furniture, etc.)
• Matrix Table – 5' x 12' (1,550 mm x 3,700 mm) grooved phenolic vacuum table

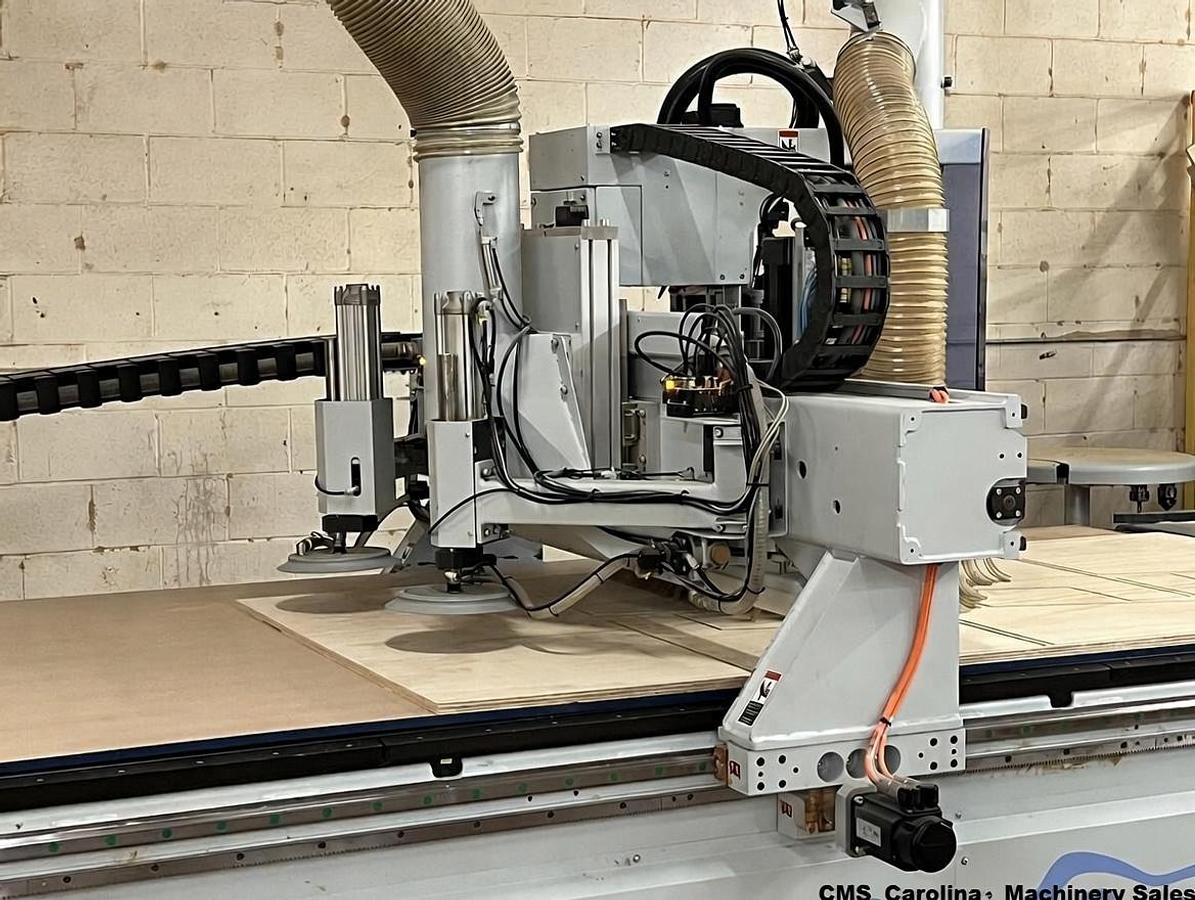

• Powerful Spindle – HSK63 9.0 kW (12 HP) router spindle, 1,250 – 24,000 RPM
• Tool Changer – 13-position automatic rotary ATC
• Drilling – 12-spindle vertical drill block (X-9 / Y-3 configuration)
• Control – Power Control PC85T with woodWOP software (Windows-based, very user-friendly)

Technical Specifications

• Working Area: 3,700 mm (X) x 1,550 mm (Y) – Max workpiece thickness 100 mm
• Axis Speeds: High-speed THK linear guides with rack & pinion (X) and ball screws (Y/Z)
• Vacuum System: 4 high-capacity pumps (total 432 m³/h)
• Electrical: 480V / 3-phase / 60 Hz, ~50 Amps
• Weight: Approx. 7,936 lbs (machine only)

Ideal For: High-production cabinet shops, furniture manufacturers, or anyone needing reliable nested-based CNC with minimal operator intervention. This machine can run nearly lights-out with the full auto load/offload cell.
