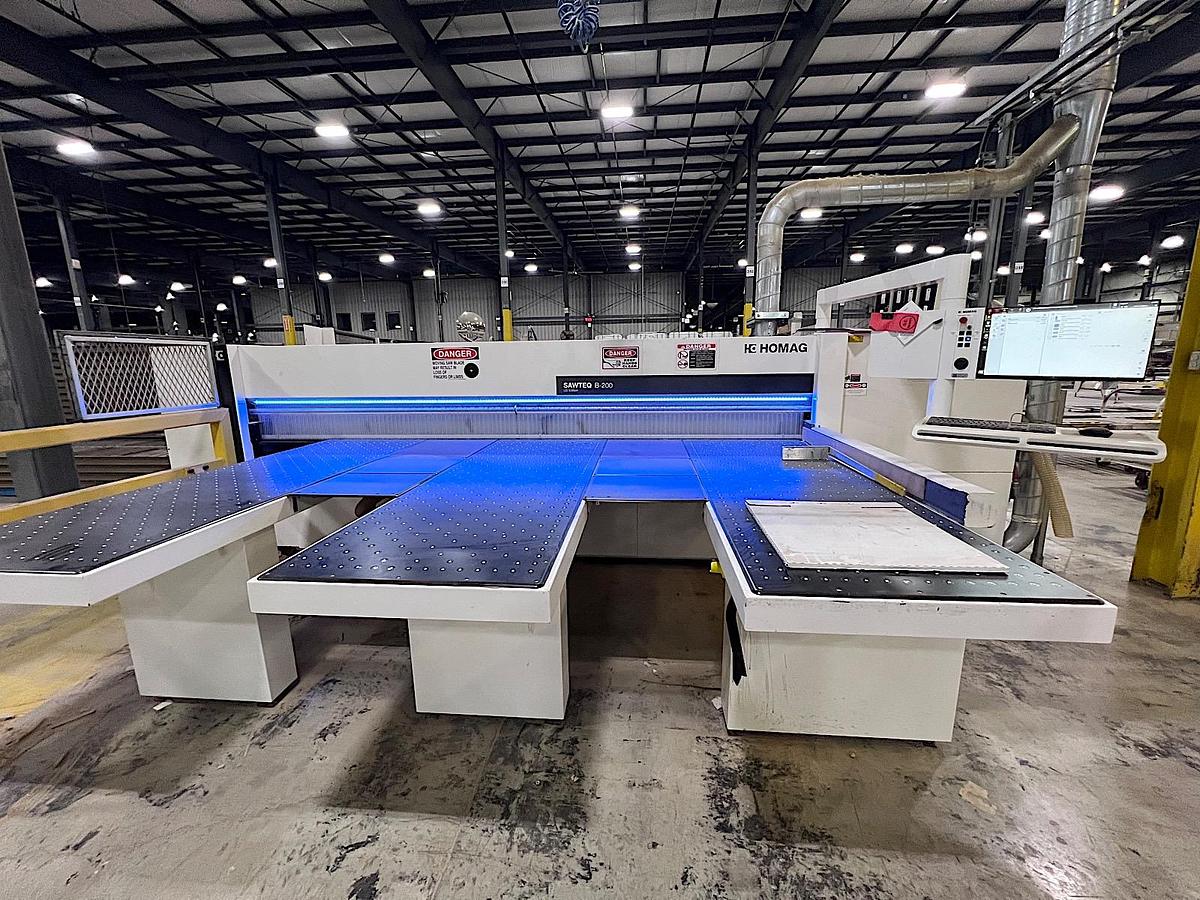

2021 Homag SAWTEQ B-200 HPL200/38/16 Rear Load Automatic Panel Saw

2021 Homag SAWTEQ B-200 HPL200/38/16 Rear Load Automatic Panel Saw

Manufacturer: Homag

Model: SAWTEQ B-200 HPL200/38/16 (HPL 200/38/16)

Condition: Excellent Key Specifications

• Cutting Length (Rip Capacity): 149.6" (3,800 mm)
• Pull-Back / Cross-Cut Capacity: 145.6" (3,700 mm)
• Main Saw Blade Projection: 2-1/2" (65 mm)
• Main Saw Motor: 37.5 HP (28 kW)
• Scoring Saw Motor: 2 HP (1.5 kW)
• Saw Carriage Speed: Forward & Reverse up to 492 FPM (150 m/min)
• Program Fence (Pusher) Speed: Electronically controlled, up to 492 FPM (150 m/min)
• Max. Stack Height: Approx. 25.98" (660 mm)
• Control System: CADmatic with touchscreen monitor (scoring saw adjustment via control)

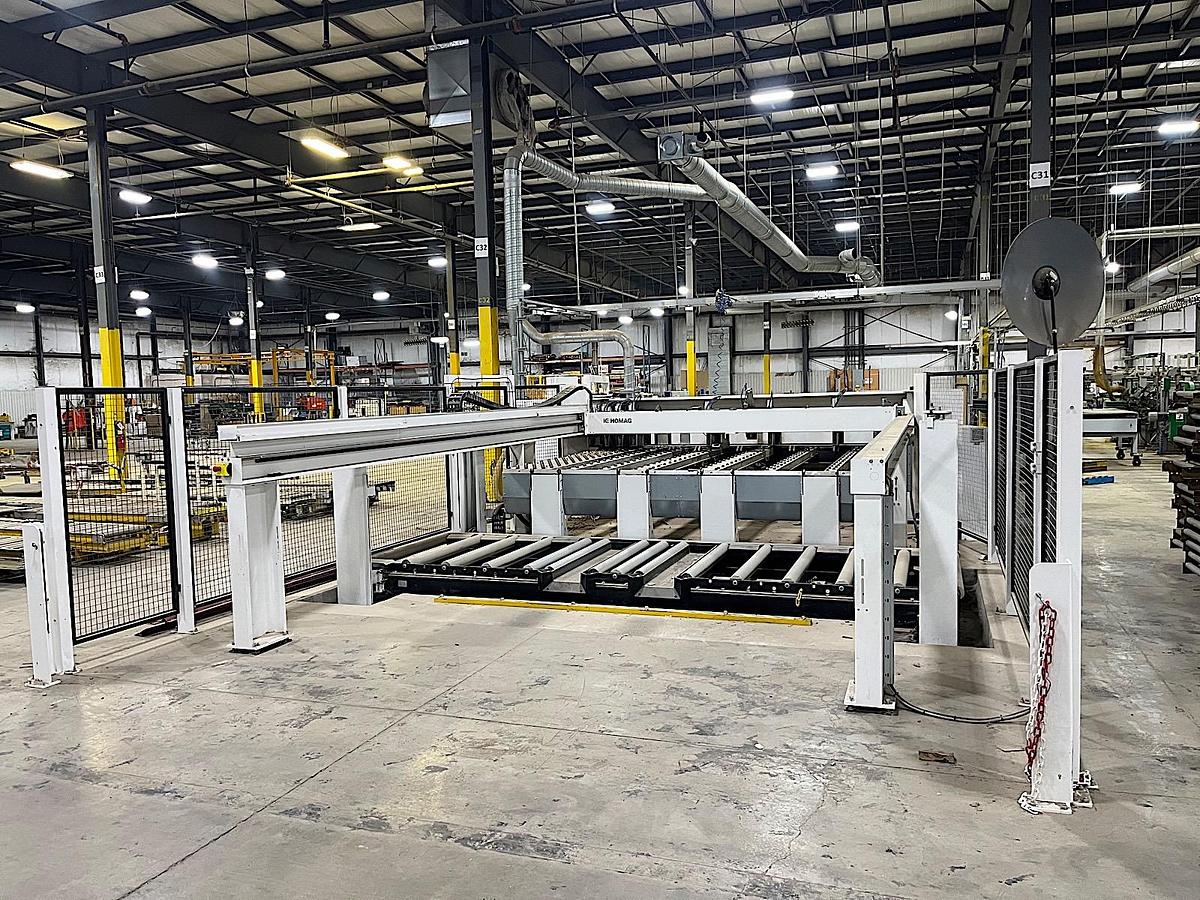

• Loading Type: Rear-load automatic (with lift table or stacking table for panel stacks)
• Features:
• High-precision cutting with powerful main and scoring saws
• Automatic pusher fence for efficient positioning
• Optimized for high-volume panel processing (wood, wood-based panels, etc.)
• Dust extraction ready
• Robust construction for reliable industrial use

The Homag SAWTEQ B-200 HPL200/38/16 is a highly productive rear-load automatic panel saw designed for efficient cutting of panel materials in medium to large production environments. With a generous 3,800 mm cutting length and powerful 28 kW main motor, it delivers fast cycle times, excellent cut quality, and high throughput. The rear-load configuration allows for automatic feeding of panel stacks, reducing manual handling and increasing operator efficiency.

Ideal for manufacturers of furniture, cabinetry, millwork, and other wood-based products. The machine combines precision engineering with user-friendly CADmatic software for easy programming and optimization.

Included Options (Typical for this model)

• Automatic rear loading system
• Electronic program fence with gripper system
• Variable speed saw carriage
• Scoring saw with automatic adjustment
• Air flotation table or support tables (depending on configuration)
