2022 KRC PHANTOM 510 CNC Router

2022 KRC PHANTOM 510 CNC Router

This is a premium industrial CNC nesting router from the KRC Phantom line (known for exceptional speed and automation in cabinetry, furniture, signage, and high-volume woodworking). The Phantom series excels in automated workflows, especially with features like rapid labeling and multi-part processing.

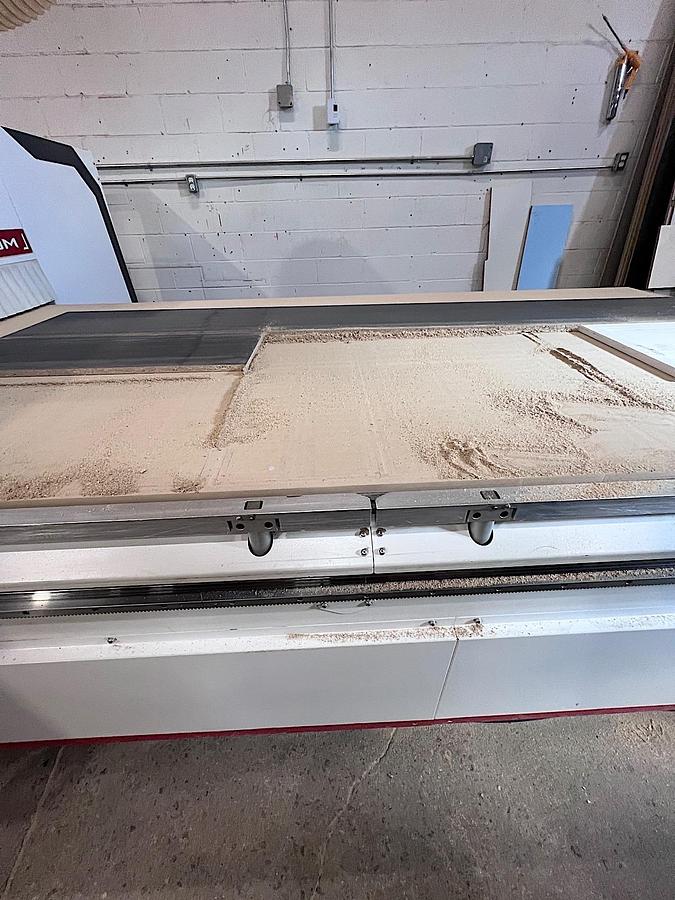

Table Size: 5' x 10' (60" x 120") phenolic matrix grid vacuum table – typically 6–8 independent zones for excellent hold-down on nested sheets

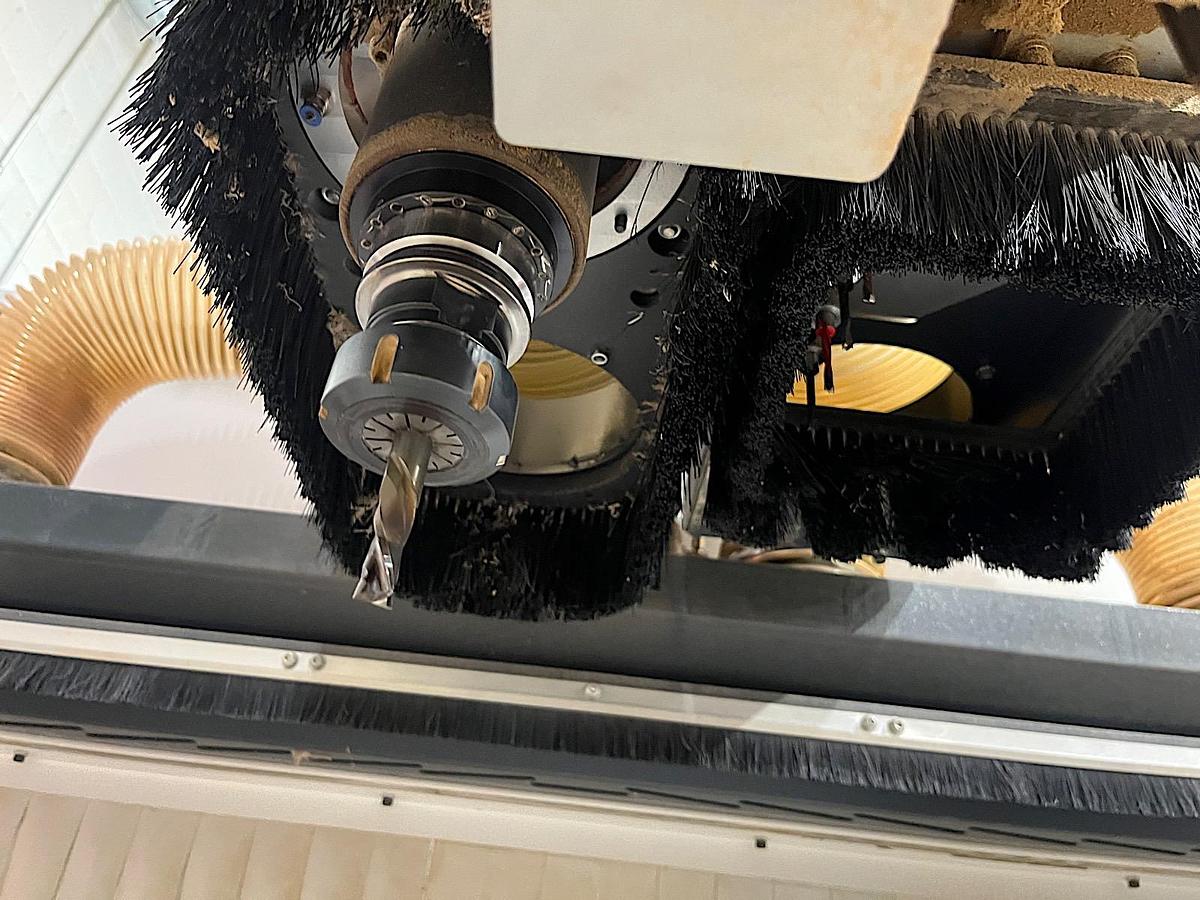

Spindle: 11 kW (≈15 HP) Hiteco air-cooled HSK F63 automatic tool changer spindle, up to 24,000 RPM

Tool Changer : 8-position linear or

Drive System: Beckhoff servo motors (X: 2.3 kW, Y: 2 × 2.3 kW, Z: 2.3 kW)

Speeds: X/Y rapid 90 m/min each axis | Vectorial/combined speed up to 127 m/min | Acceleration 6 m/s² | Z rapid 30 m/min

Z-Axis Clearance: ≈250 mm (9.8") – supports push-off device for automated unloading if equipped

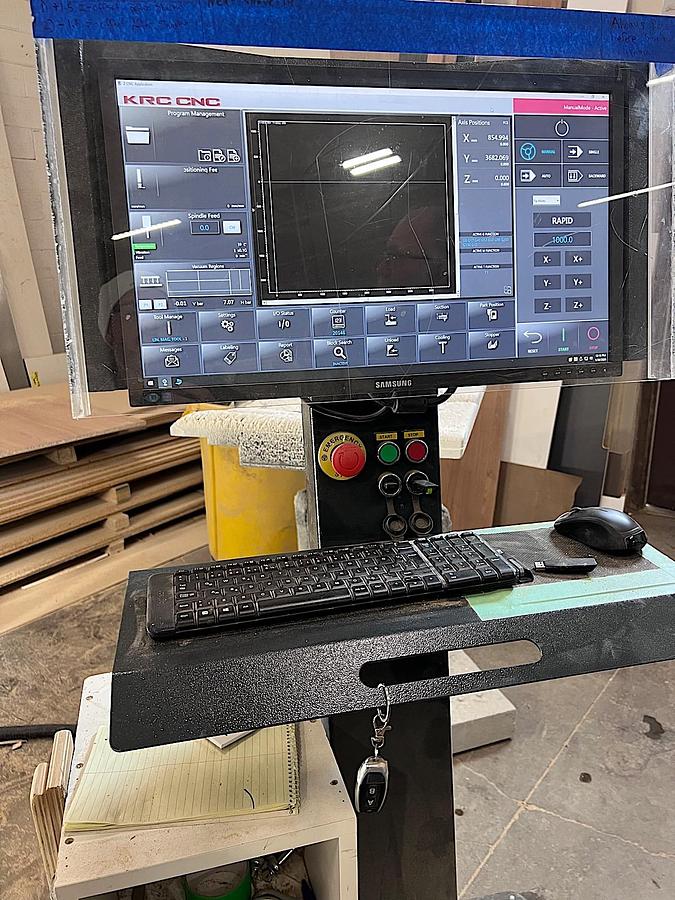

Control: Advanced Beckhoff-based CNC controller – user-friendly for nesting jobs, job folder queuing, unattended operation

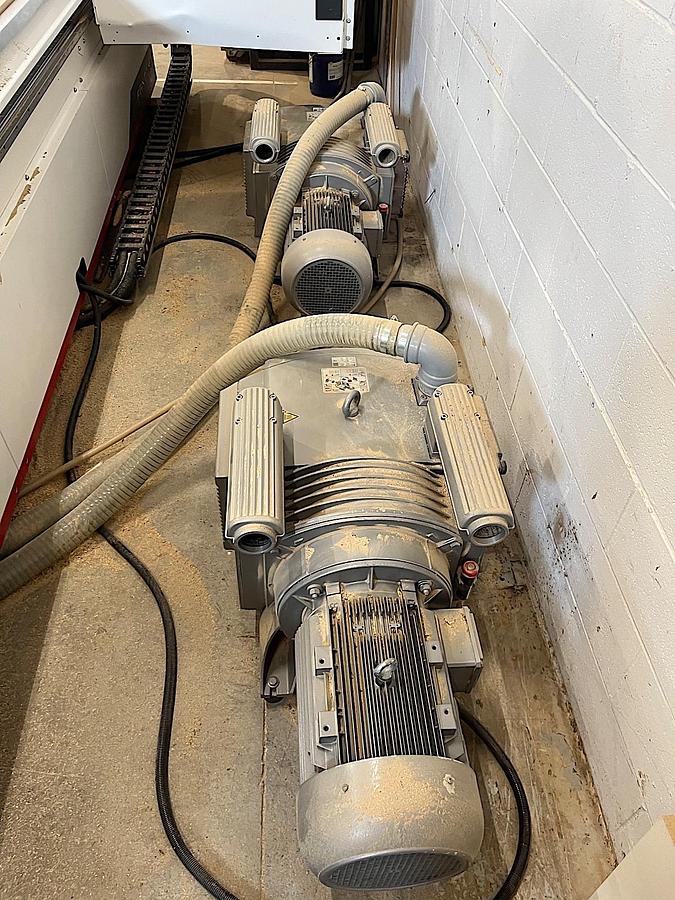

Vacuum System: x2 250m3 Becker
