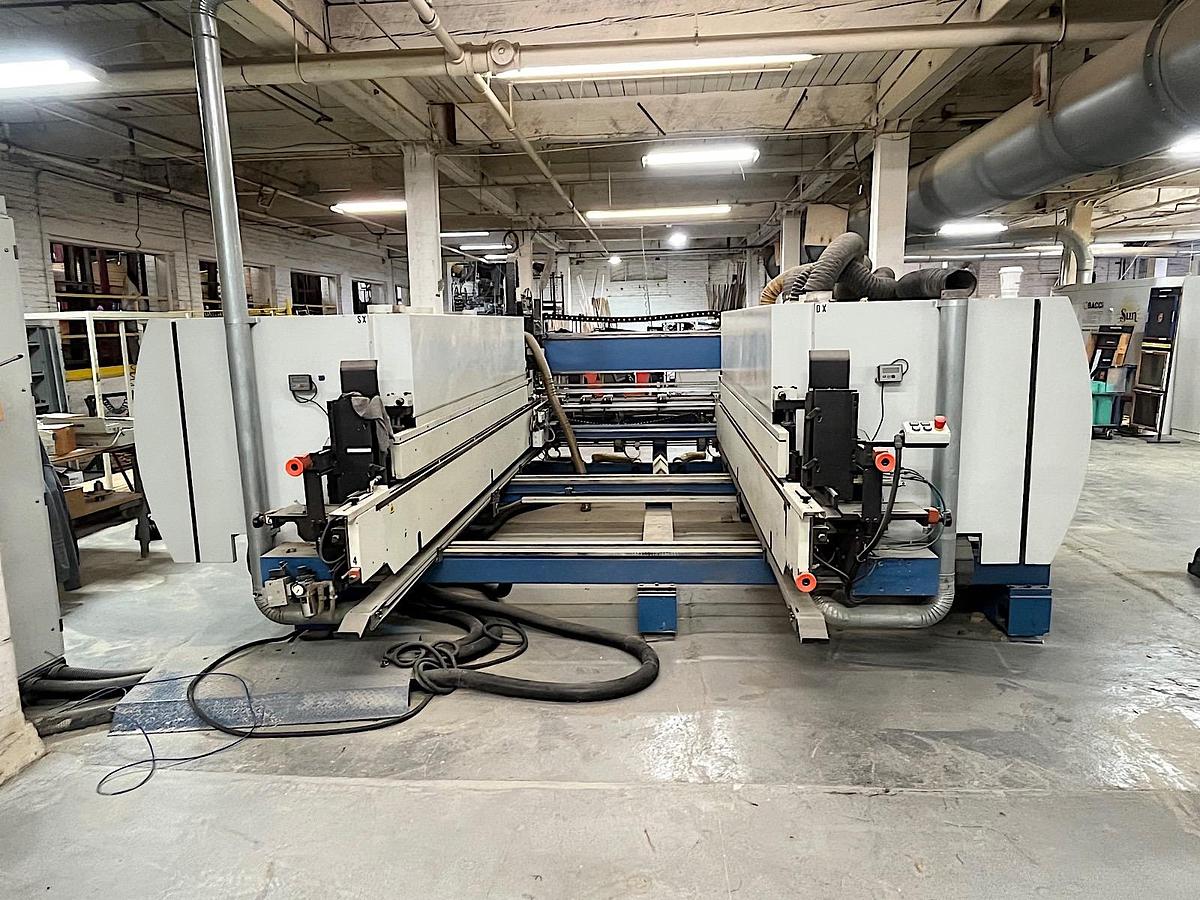

Working Units (per side – 4-station layout)

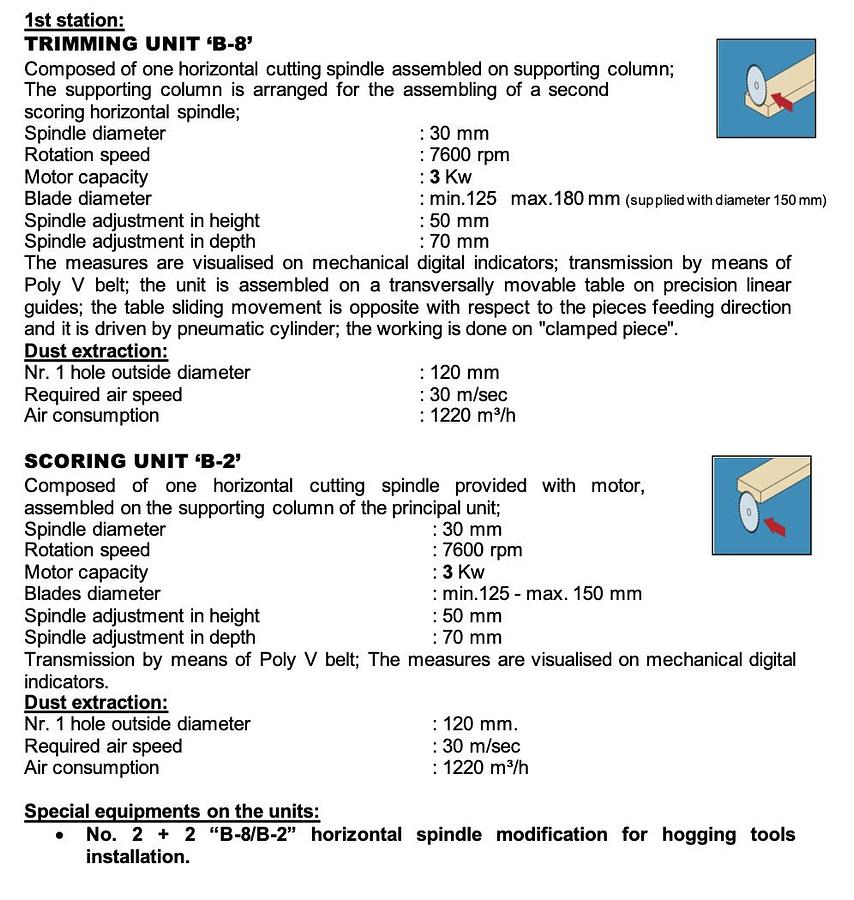

1. Station 1 – Trimming Unit B-8 (3 kW, 7600 rpm, 30 mm spindle, 125–180 mm blade) + Scoring Unit B-2 (identical) → Hogging-tool ready

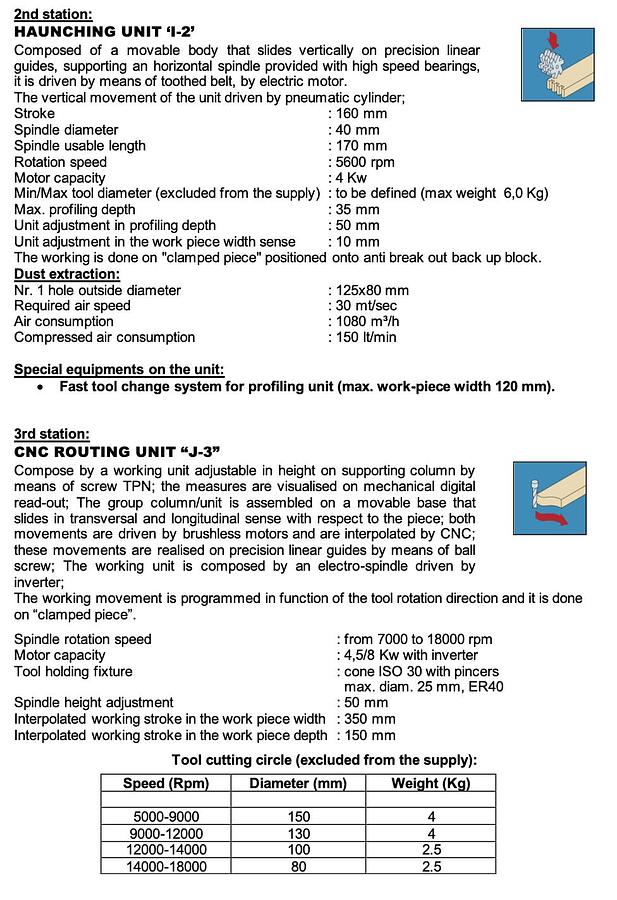

2. Station 2 – Haunching Unit I-2 (4 kW, 5600 rpm, 40 mm spindle, 170 mm usable length) → 160 mm vertical stroke, fast tool-change system (max 120 mm width), anti-breakout backup

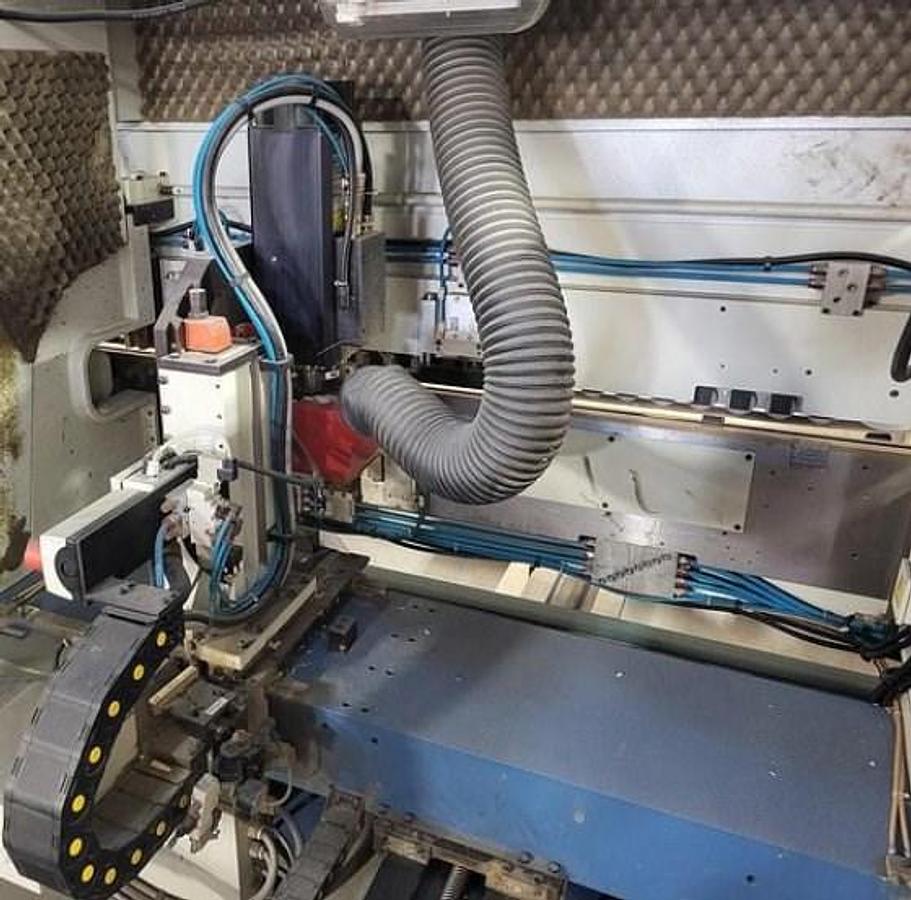

3. Station 3 – CNC Routing Unit J-3 (4.5/8 kW inverter, 7,000–18,000 rpm, ISO 30 / ER40) → Full 3-axis interpolation (350 mm width × 150 mm depth stroke)
4. Station 4 – Free station (ready for future unit)

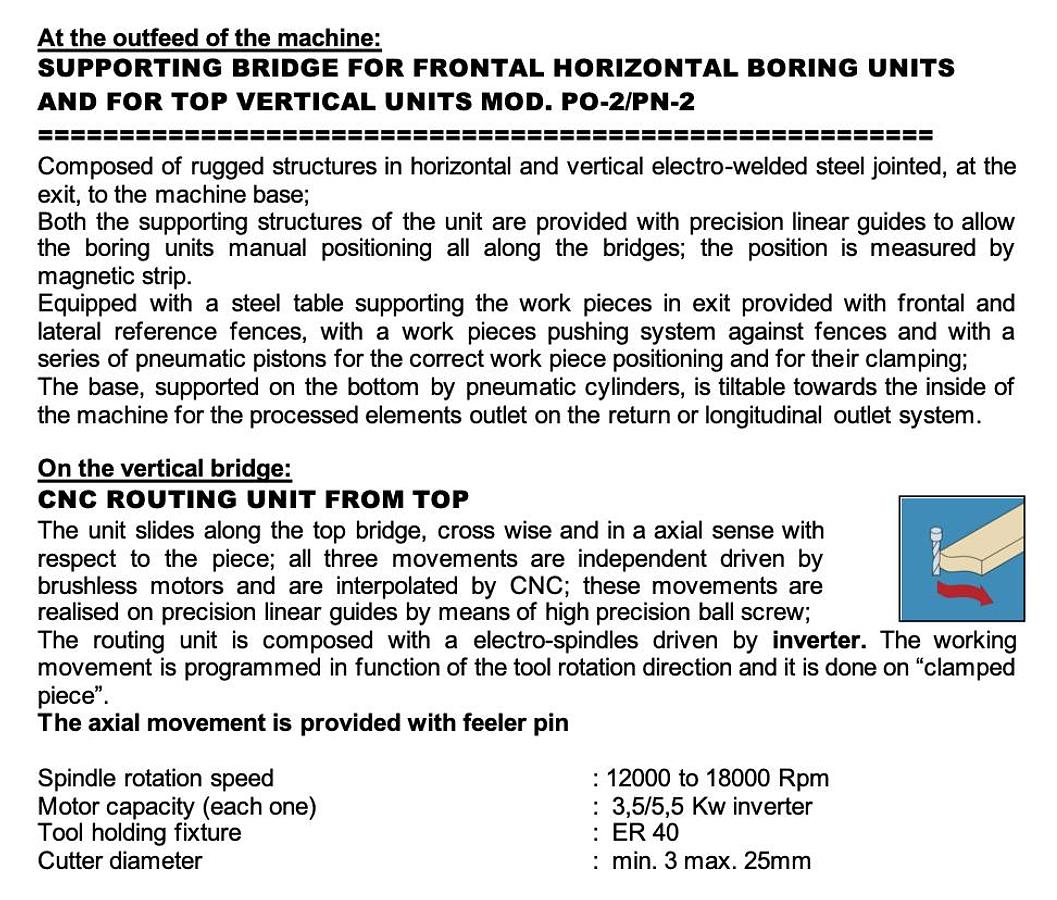

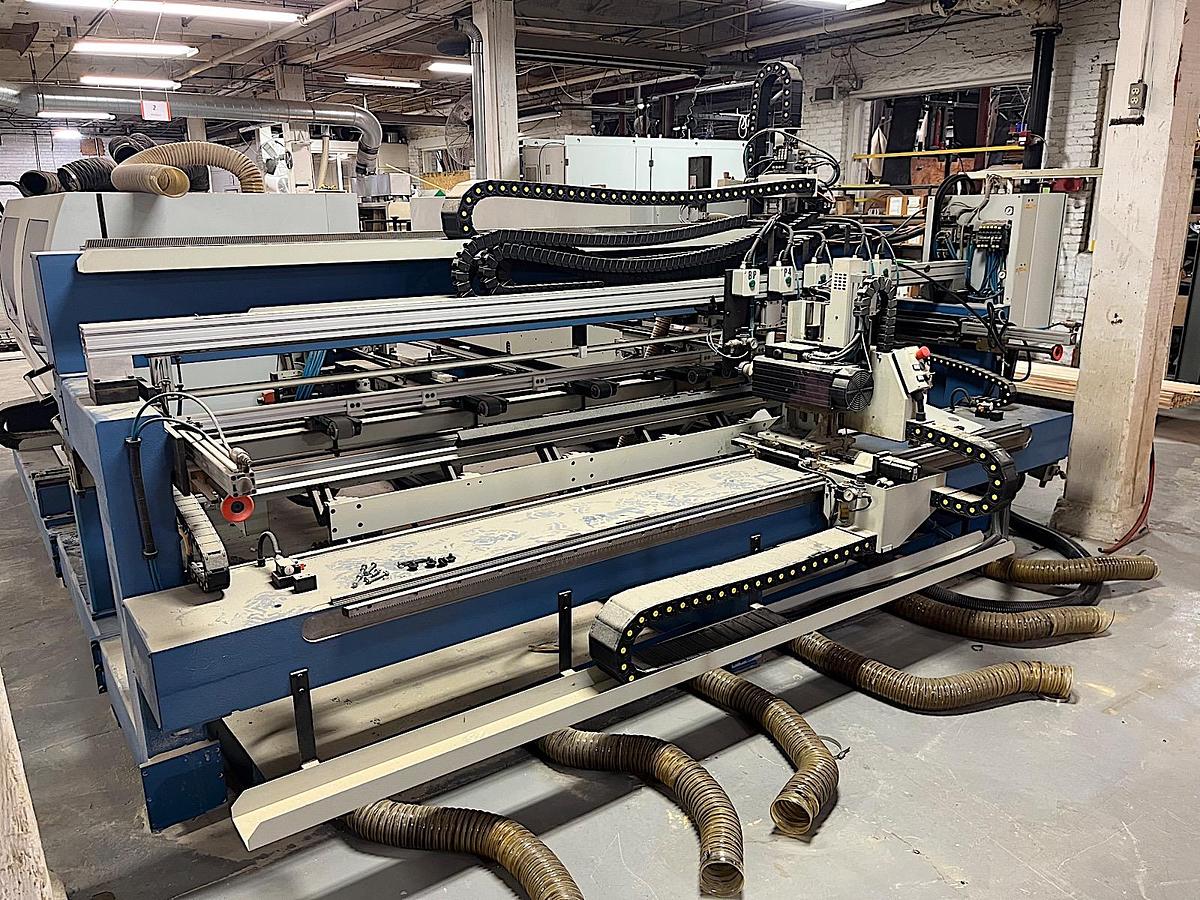

Outfeed Bridge Units (additional CNC power)

• Top Vertical Bridge: CNC Routing Unit + pneumatic drilling head (3.5/5.5 kW, 12,000–18,000 rpm, ER40, 3–25 mm cutters)
• Horizontal Bridge: CNC Routing Unit J-4 (4.5/8 kW inverter, ISO 30 / ER40) → 350 mm width × 200 mm thickness interpolated stroke

Special Equipment Included

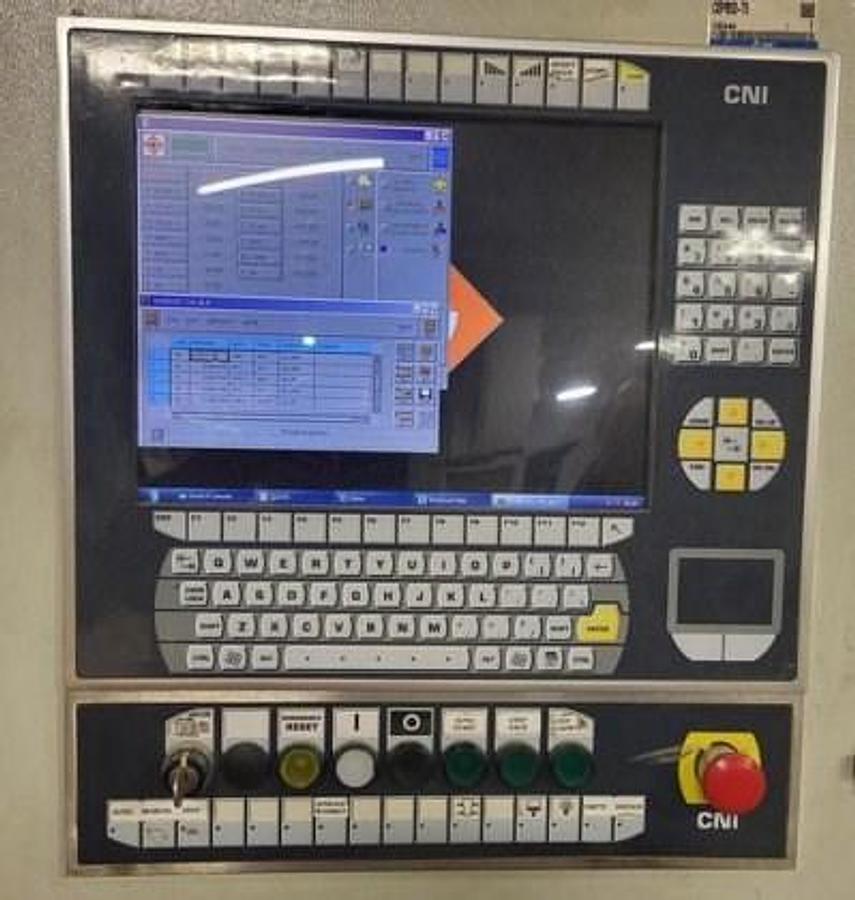

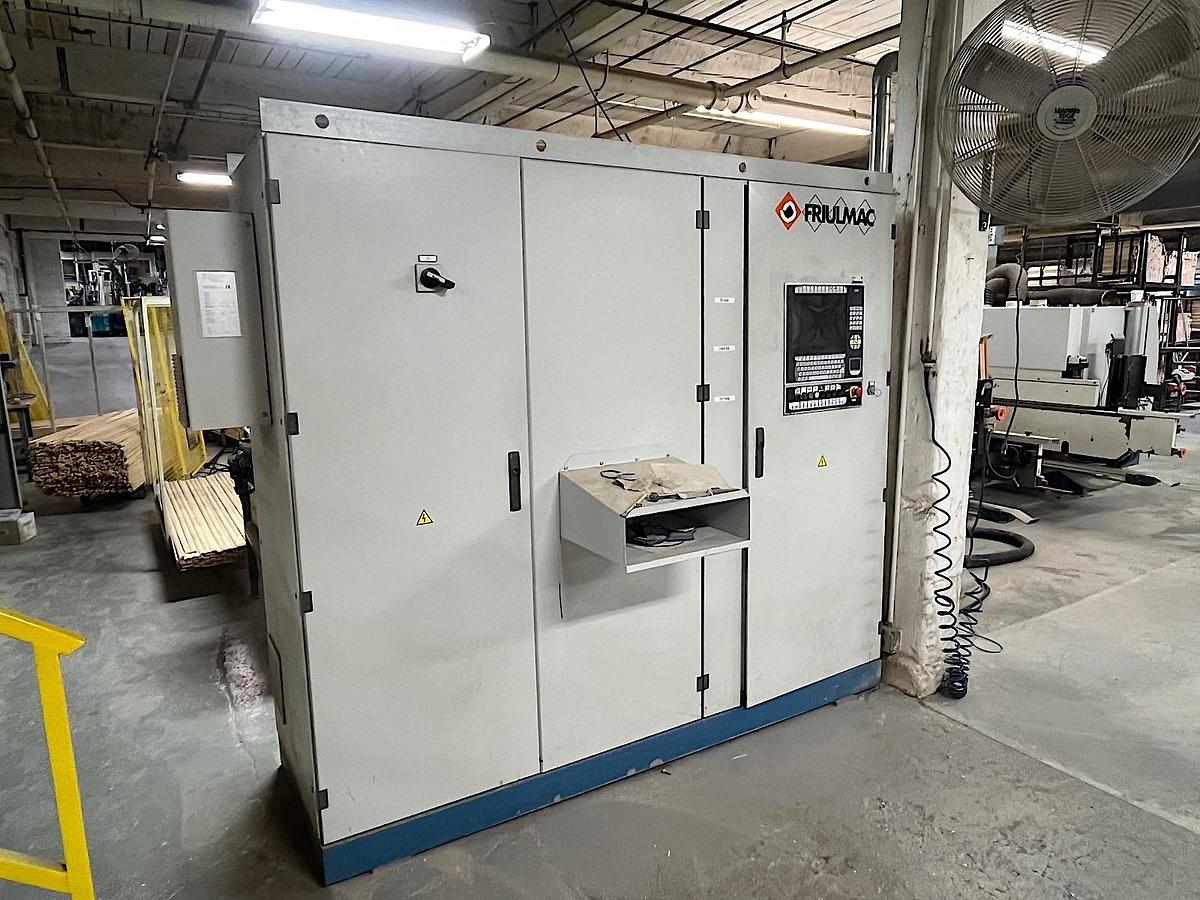

• Full 12-axis CNC control (interpolated 2-by-2) with air-conditioned cabinet + office link for daily work lists

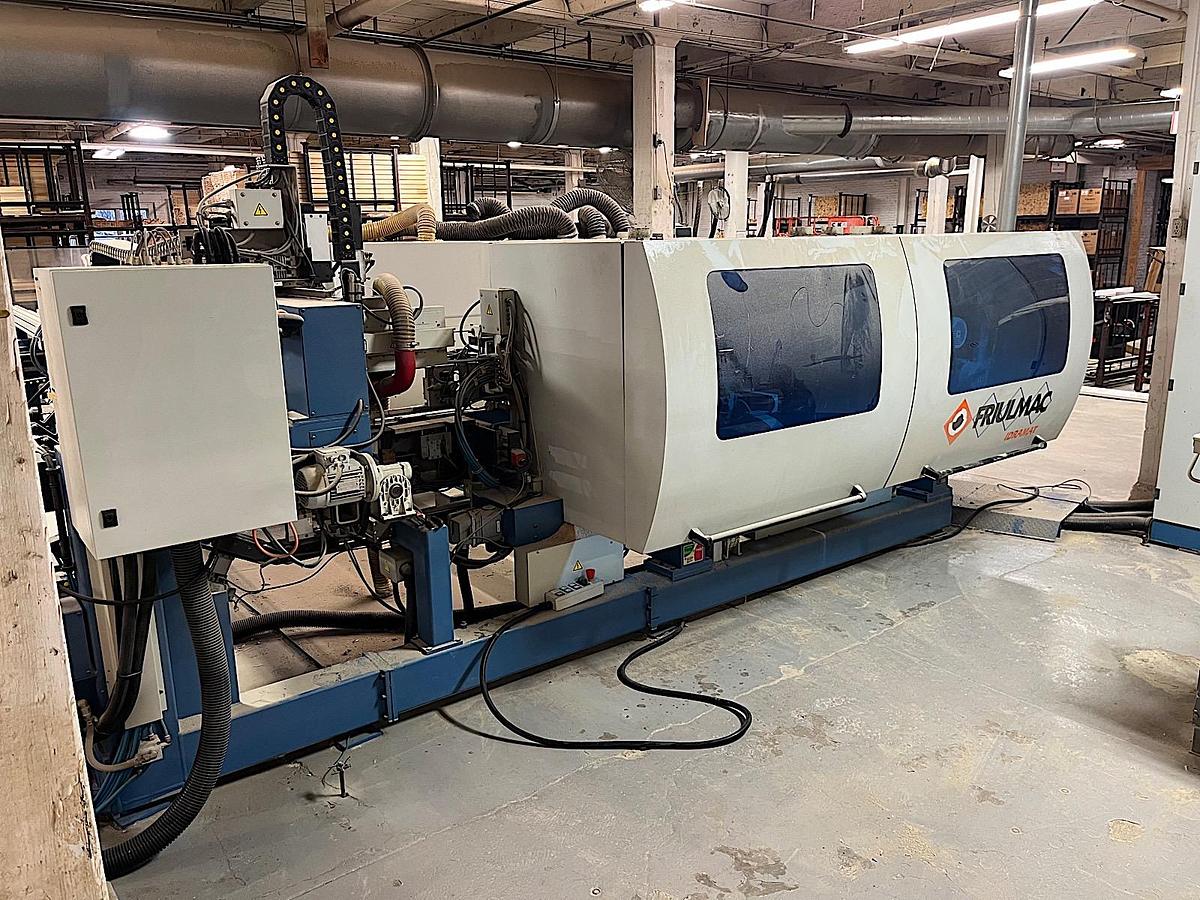

• Sound safety enclosure with wing doors

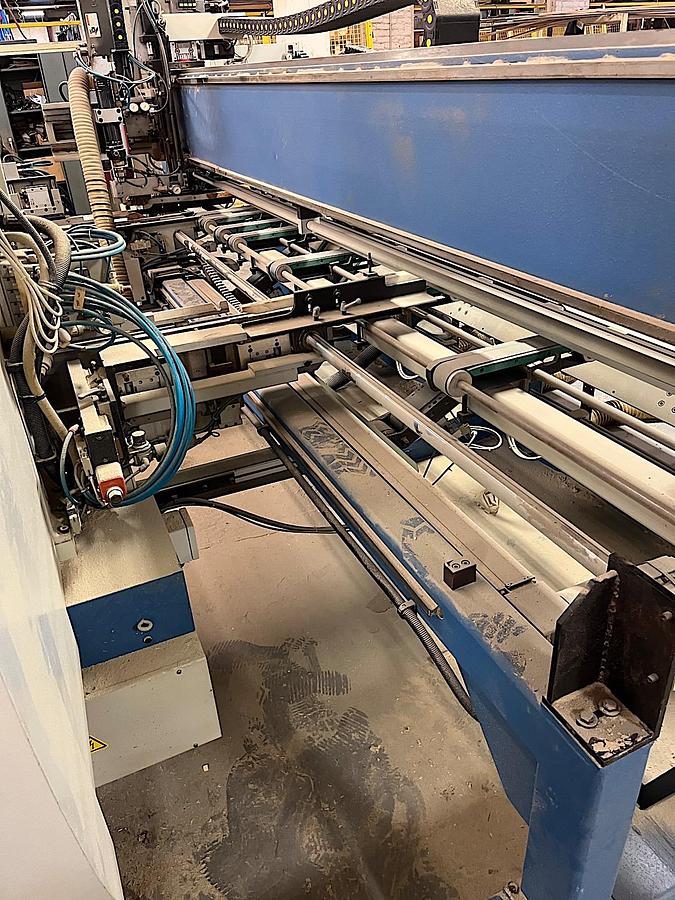

• Workpiece return conveyor with lowering device
• Central support + pneumatic straightening system (frontal & top) – CNC-controlled last section
• Magnetic-strip clamp positioning with red/green interference lights
• Boring/frontal mortising heads (per drawing 000580071) for OWDH-111-1 series
• HP ball-screw extension on J-4
• USA electrical package

Production Capabilities (from original component analysis)

Processes 20+ window/door profiles (OWDH, OCDH, OVCS, OHCS series)

• Lengths: 12"–96" (305–2,438 mm)
• Rates: up to 14 pieces/min (trim/score/haunch/profile)
• Down to 3–7 pcs/min on complex lock-center routing & multi-bore parts
• Full end-trim, scoring, vertical haunching, horizontal/vertical CNC routing, point-to-point drilling, special mortising with radius work (6 mm bit)
