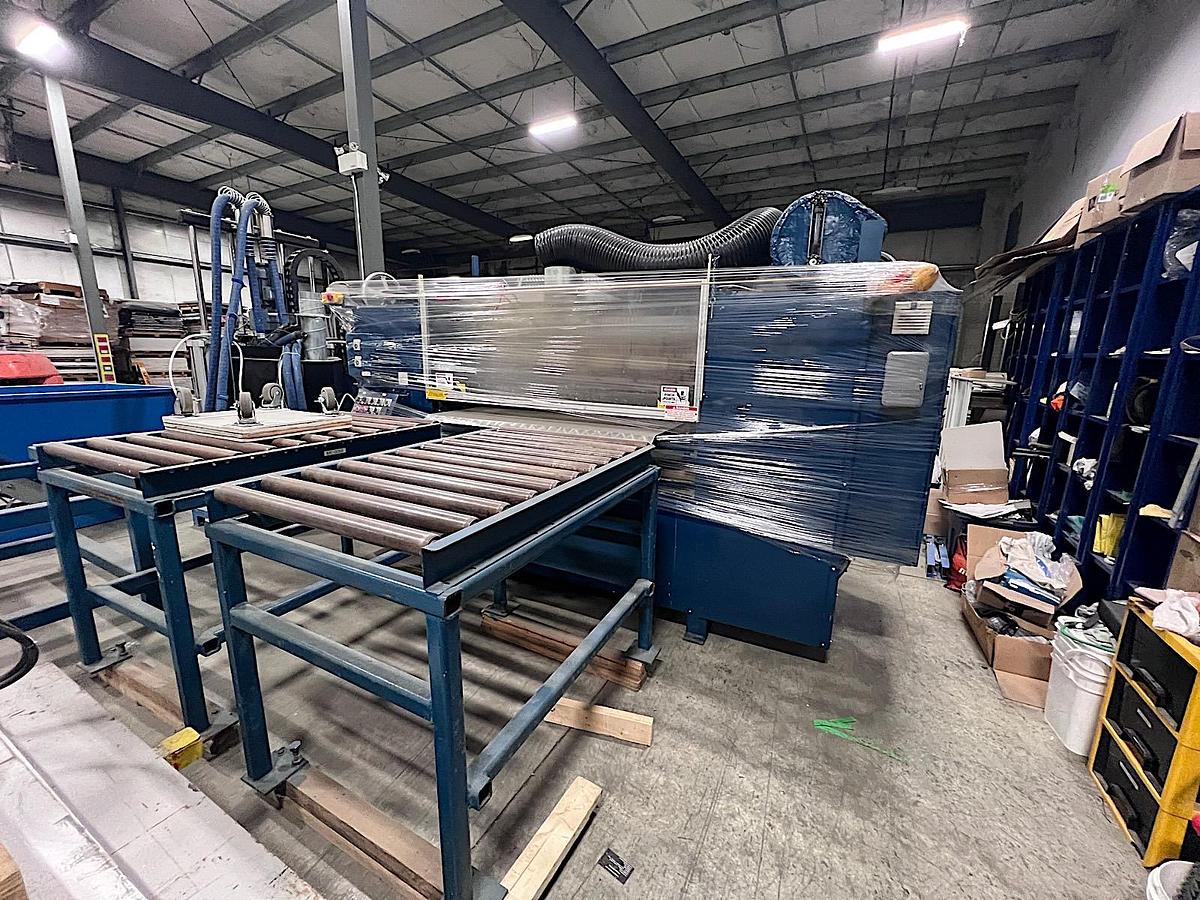

2022 Union Tool Company 15-A-54" HMRC Hot Melt Roll Coater

2022 Union Tool Company 15-A-54" HMRC Hot Melt Roll Coater

Single Sided Roll Coater

Coating Width: Up to 54" nominal (typical working/max material width around 48").

Material Thickness Capacity: Up to ~4" thick (common across Series #15 hot melt models).

Rolls:

• Coating roll diameter: 6.5" (standard for Series #15).
• Doctor roll diameter: ~4.375".
• Rolls mounted in self-aligning, sealed-for-life bearings.
• Laminating rolls (if combined with laminator): 6-1/2" diameter with 1" thick neoprene rubber covering (mechanical standard).

Speed: Variable, typically 30-60 linear feet per minute (LFPM).

Application: Top-side only hot melt coating (Model A); designed for precise, controlled application of hot melt materials.

Construction: Heavy-duty welded tubular steel frame; rugged for industrial use.

Common Uses: Applying adhesives for lamination, foam bedding, panel processing, or similar flat material operations. Often combined with rotary laminators or unwind stands in integrated setups.

Other Features (typical for Series #15 hot melt versions): Heated reservoirs or applicators for hot melt, variable speed drives, and options for custom configurations.
