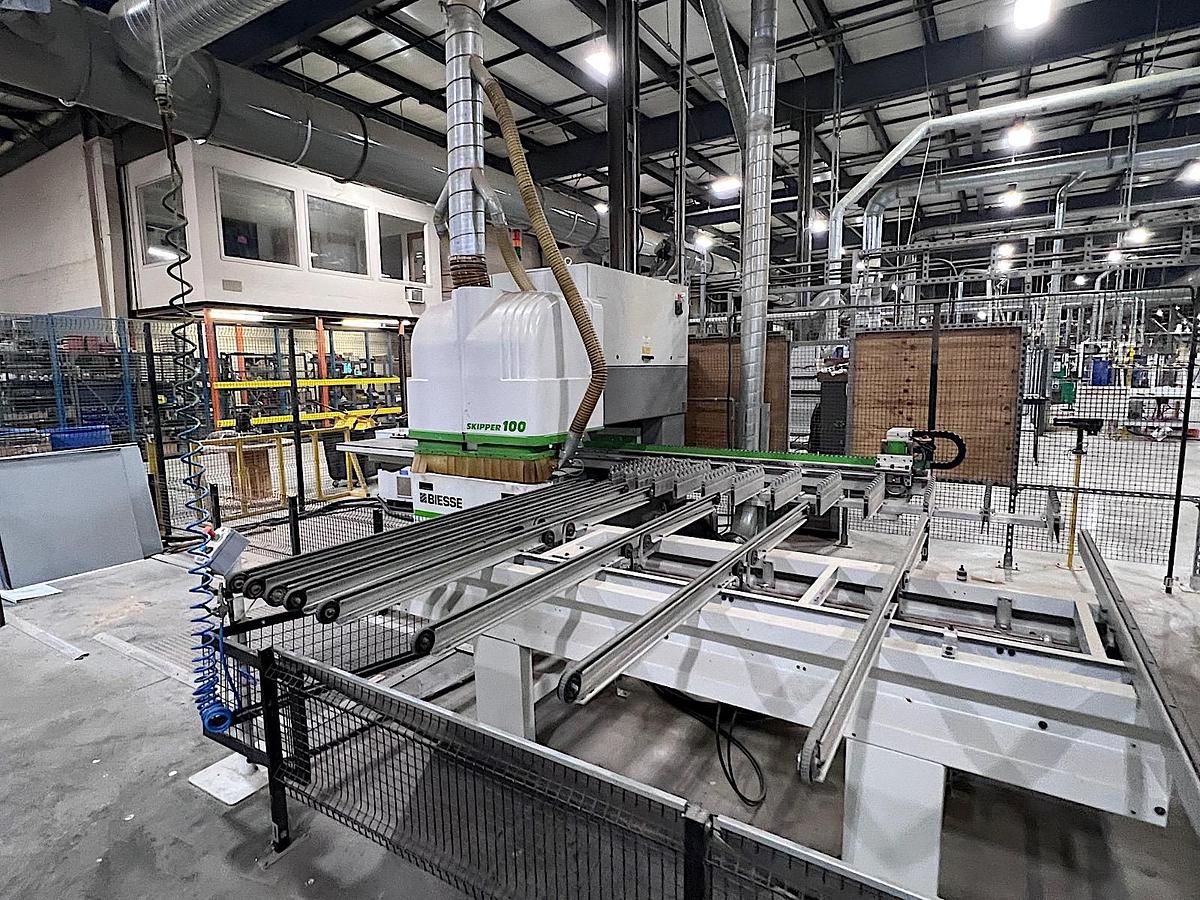

2010 Biesse Skipper 100 CNC Through-Feed Machining Center

2010 Biesse Skipper 100 CNC Through-Feed Machining Center (Top & Bottom Heads)

Excellent condition well-maintained machine, ready for immediate production. Ideal for high-volume cabinetry, furniture component drilling, grooving, and light milling in batch-1 or series production. Patented fixed-tool / mobile air-cushion panel system allows real-time processing with zero downtime for setup changes. Simultaneous top + bottom machining (and even two stacked panels per cycle) doubles output while preventing tear-out/splintering.

Key Working Capacity

• Panel length (X): 90–3,000 mm (3.5"–118")
• Panel width (Y): 70–1,000 mm (2.7"–39.4")
• Panel thickness: 8–60 mm (0.3"–2.4")

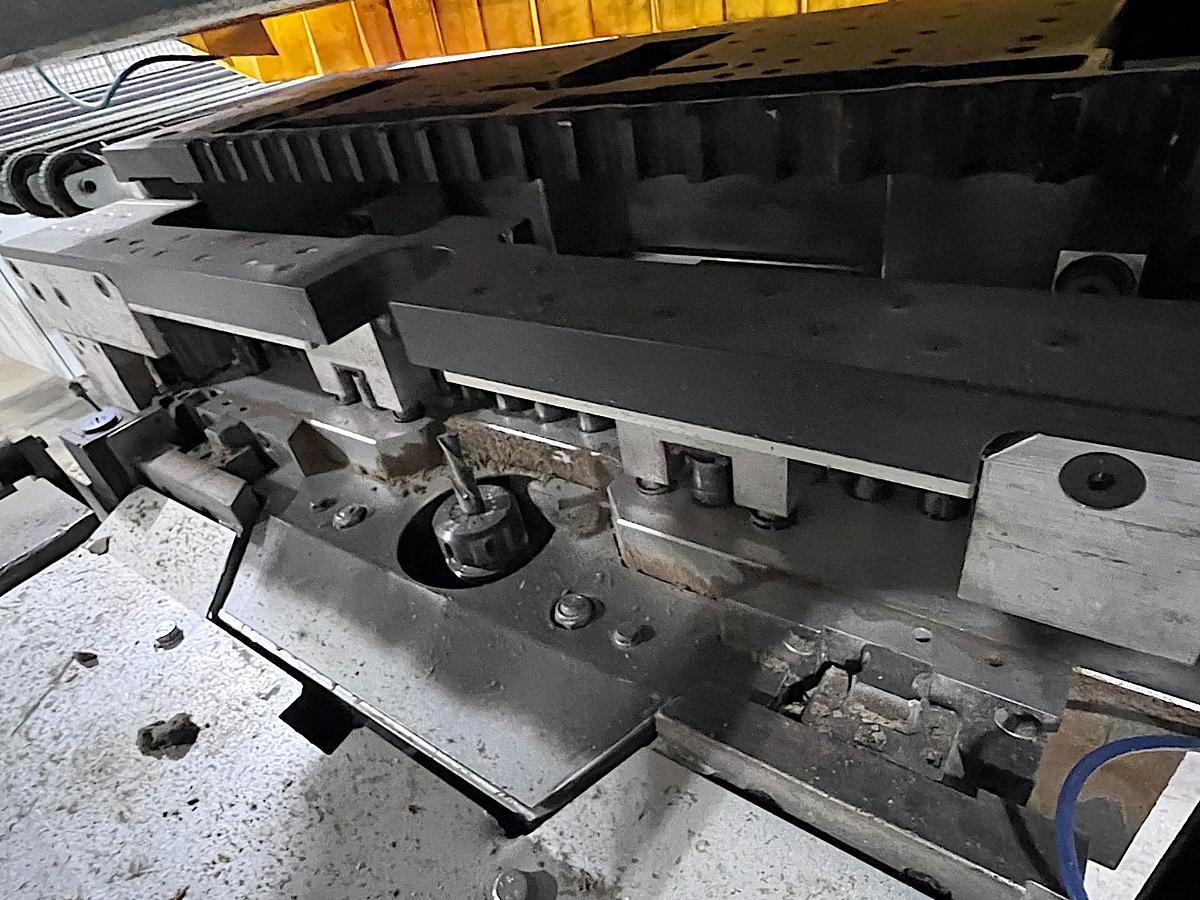

Operating Units (Top + Bottom – Mirror Configuration)

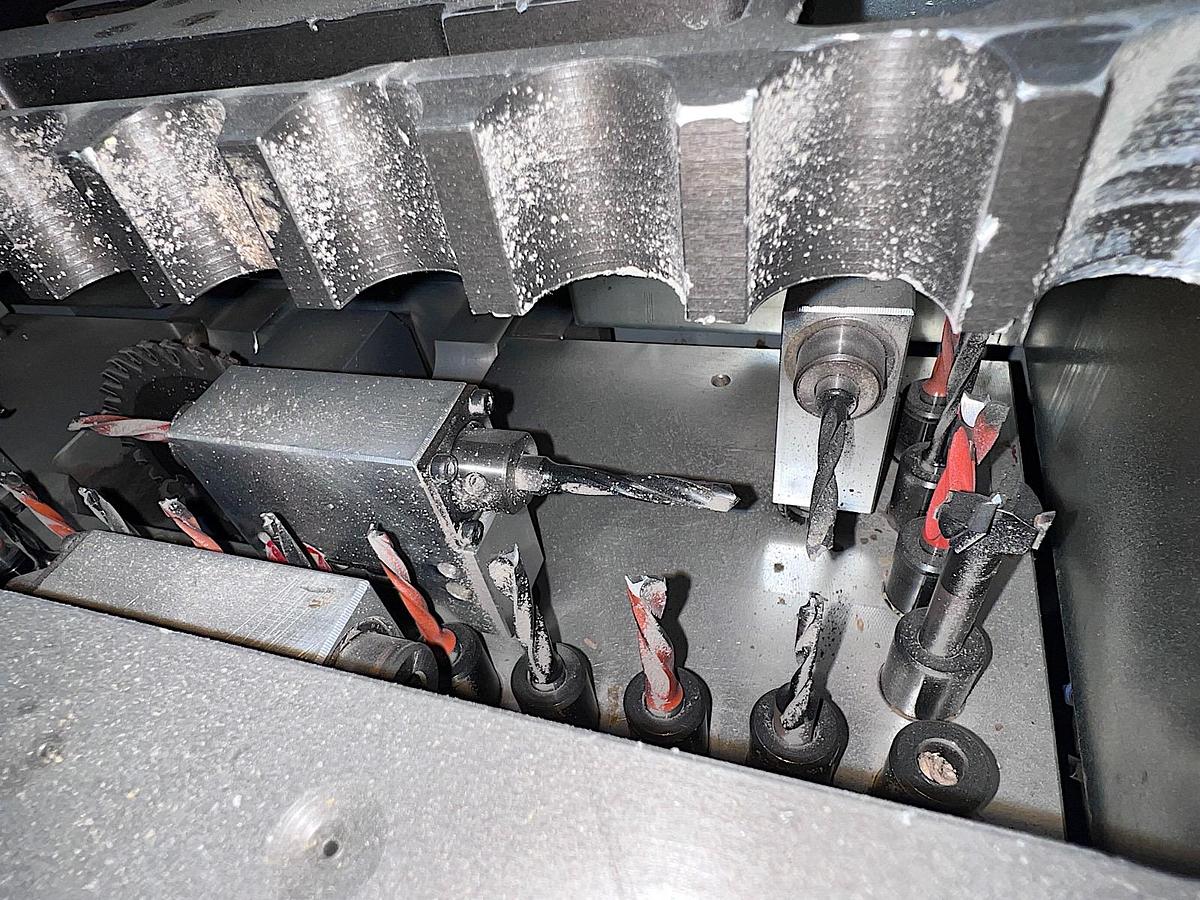

• Vertical drilling spindles: 29 + 29 (total 58) – independent, 32 mm grid (System 32)
• X-direction: typically 17 per head
• Y-direction: typically 12 per head
• Horizontal drilling spindles:
• X-direction: 8 + 8 (4 double-acting units per side)
• Y-direction: 2 + 2
• Max drilling spindle speed: 4,000 RPM
• Electrospindle (top + bottom): 3.5 kW (≈4.8 HP) each, air-cooled, HSK D50 tool holder
• Speed range: 7,000–18,000 RPM (inverter controlled)
• Grooving saw (top + bottom):
• Typically 1.7 kW (≈2.3 HP) for 150 mm dia. blade (some configs 3.5 kW / 160 mm)
• Fixed in X-direction for blind lengthwise grooves

Speeds & Features

• Rapid traverse:
• X-axis: up to ≈394 ft/min (120 m/min)
• Y-axis: up to ≈295 ft/min (90 m/min)
• Z-axis: up to ≈98 ft/min (30 m/min)
• Air-cushion work table with automatic panel size detection (real-time X/Y measurement & positioning)

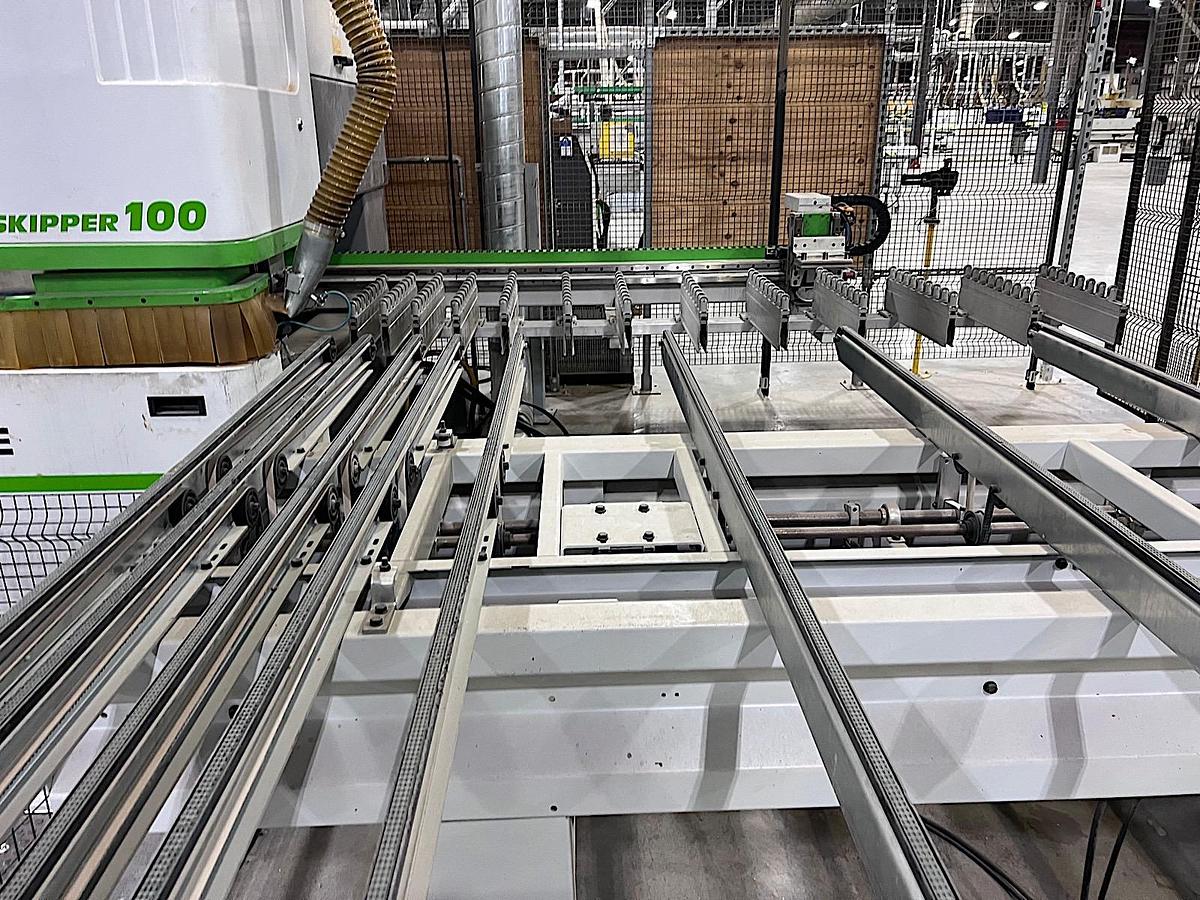

• Manual front loading with floating air table
• Automatic rear unloading conveyor with belts
• BiesseWorks CNC control software (PC-based, user-friendly programming)
• Safety: Full perimeter guarding, emergency mats, CE compliant
