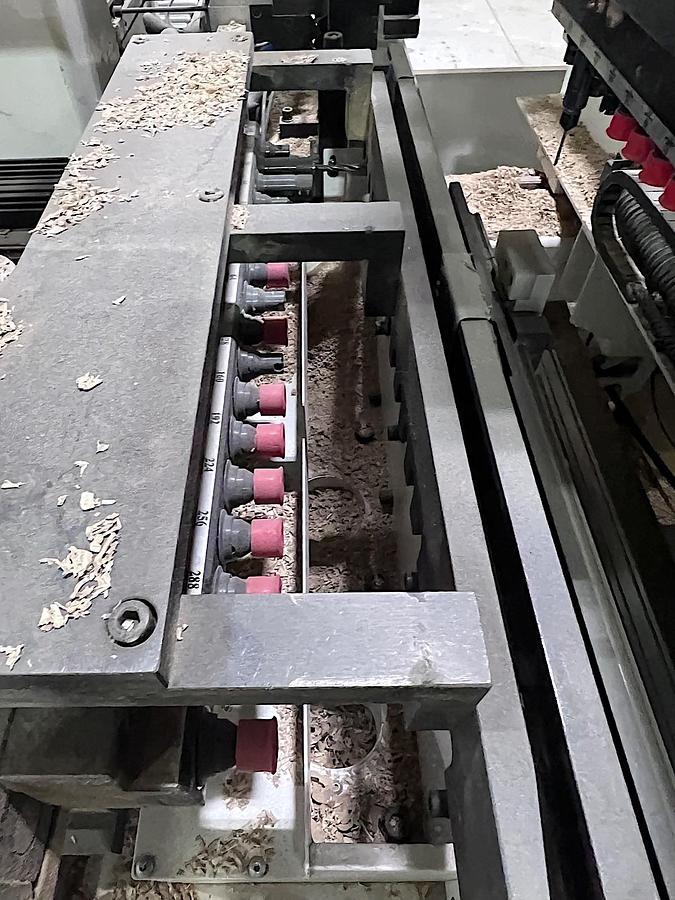

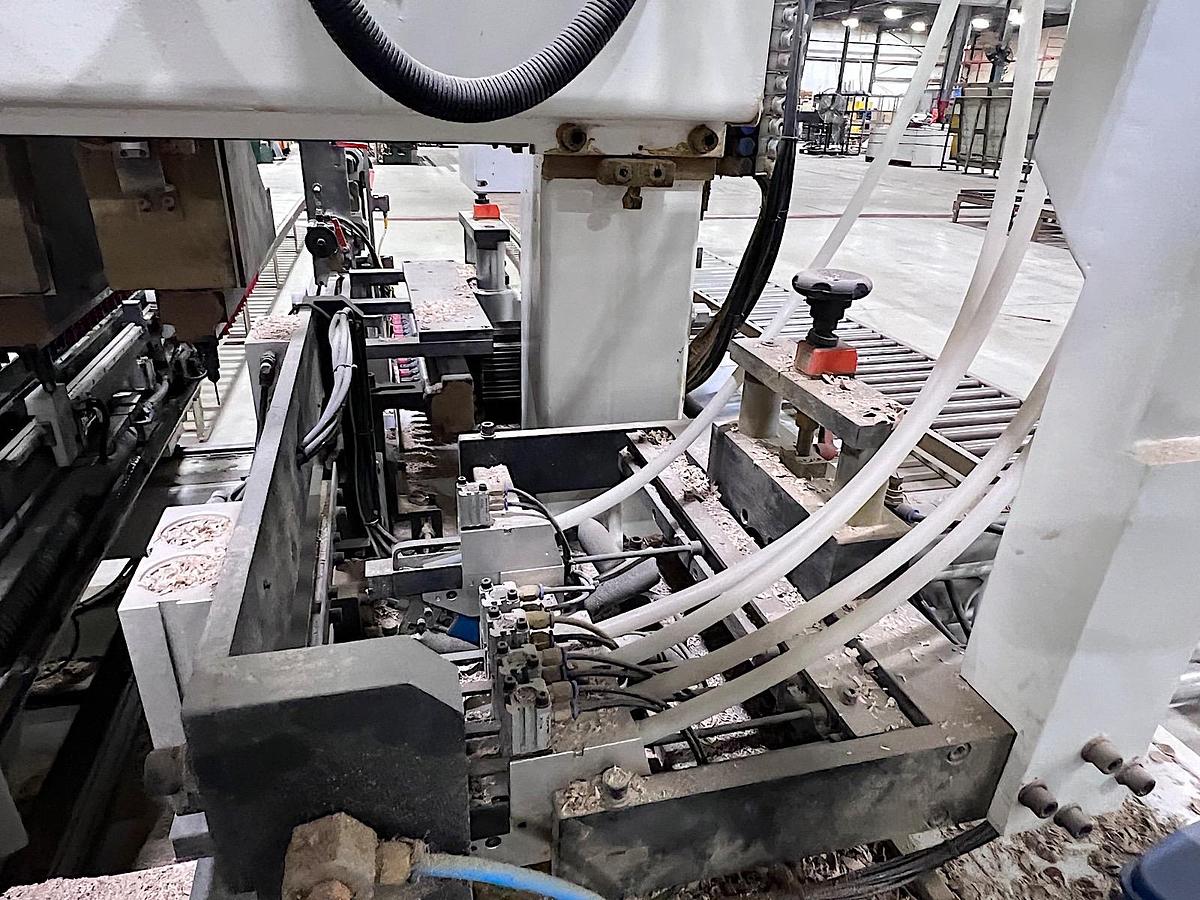

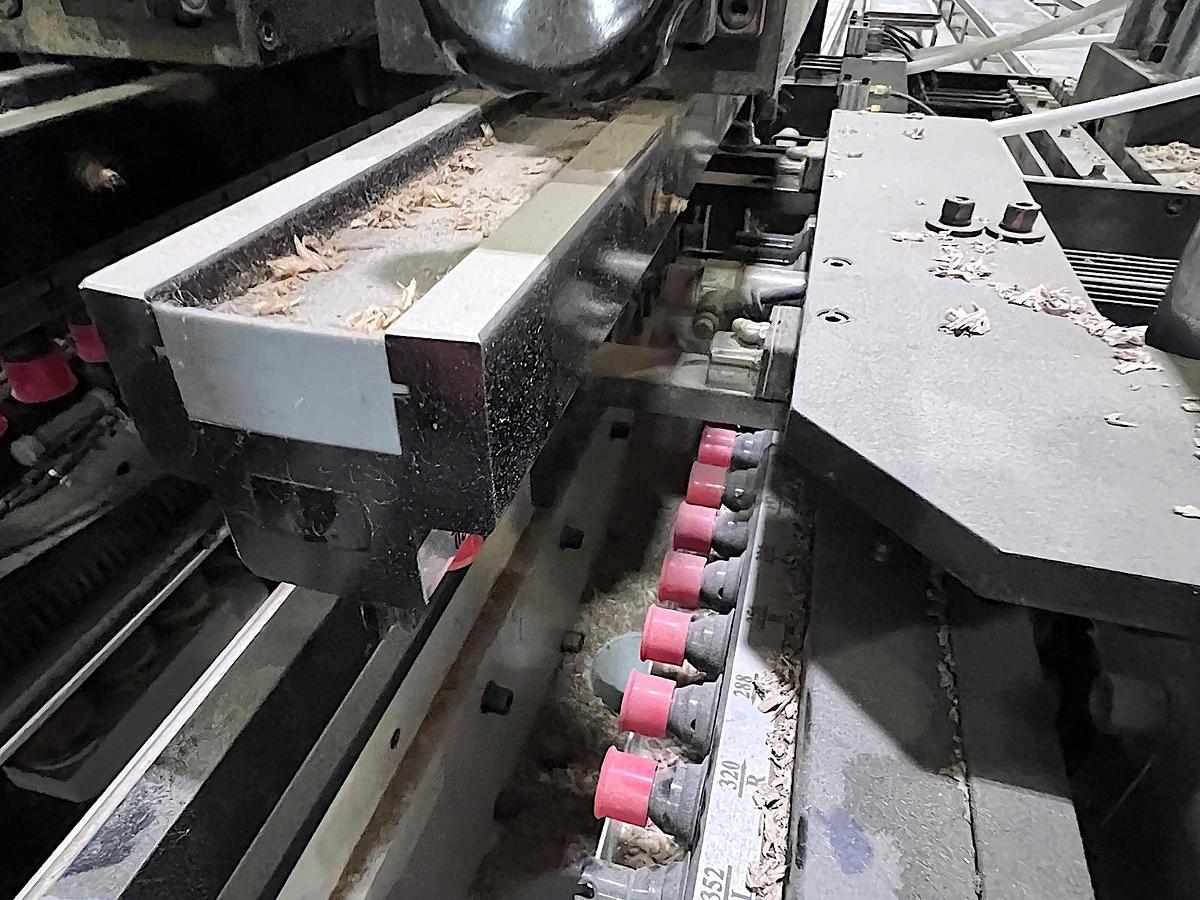

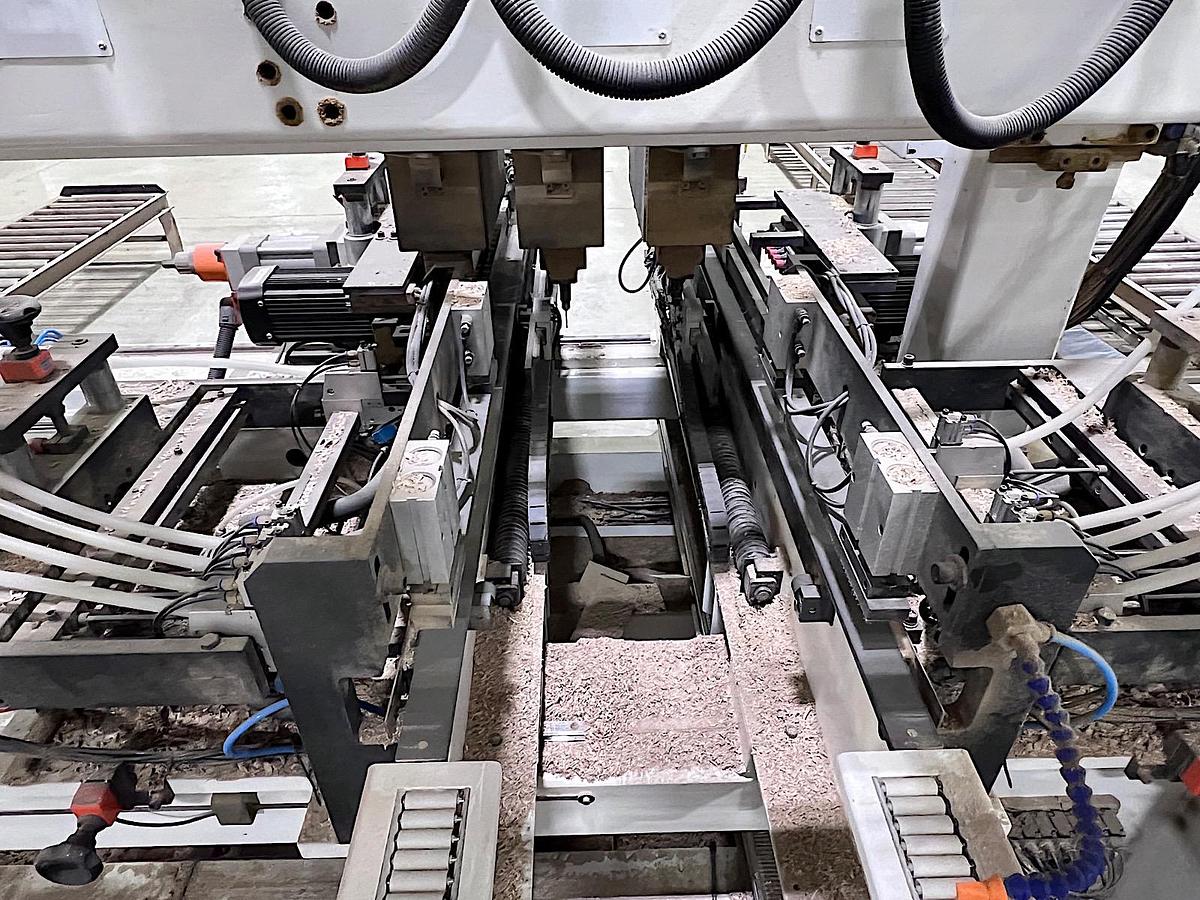

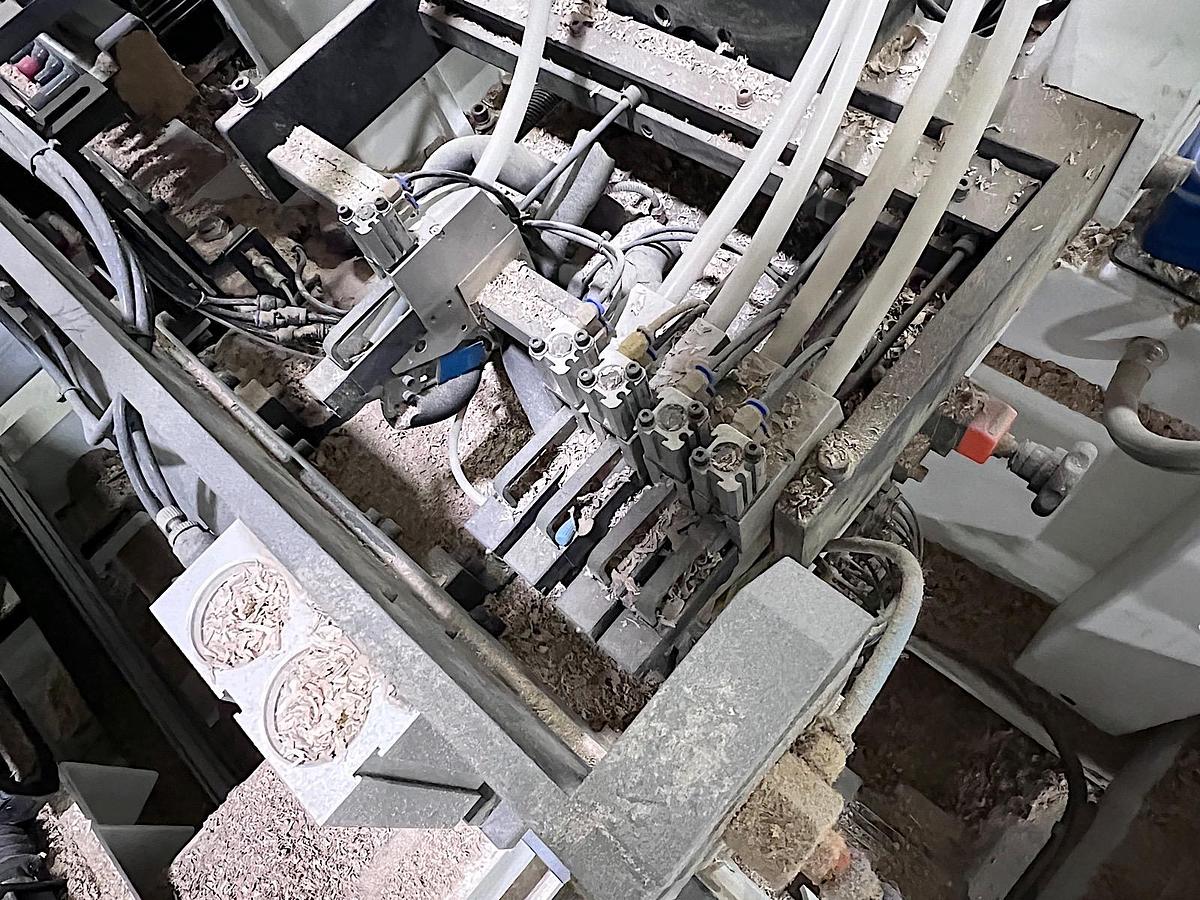

2021 NANXING FALIT WDA032LD10 FEED THROUGH DRILLING DOWEL INSERTION MACHINE

2021 NANXING FALIT WDA032LD10 FEED THROUGH DRILLING DOWEL INSERTION MACHINE

Key Features & Benefits:

• Specially designed for small narrow boards – perfect for drawer sides, small furniture components, cabinet parts, etc.
• Double-end simultaneous processing → significantly increases productivity
• Precise horizontal + vertical drilling + automatic dowel insertion in one pass
• High-speed operation with reliable pneumatic feeding
• Ideal for panel furniture, woodworking factories, and custom cabinet shops looking to automate small-part production

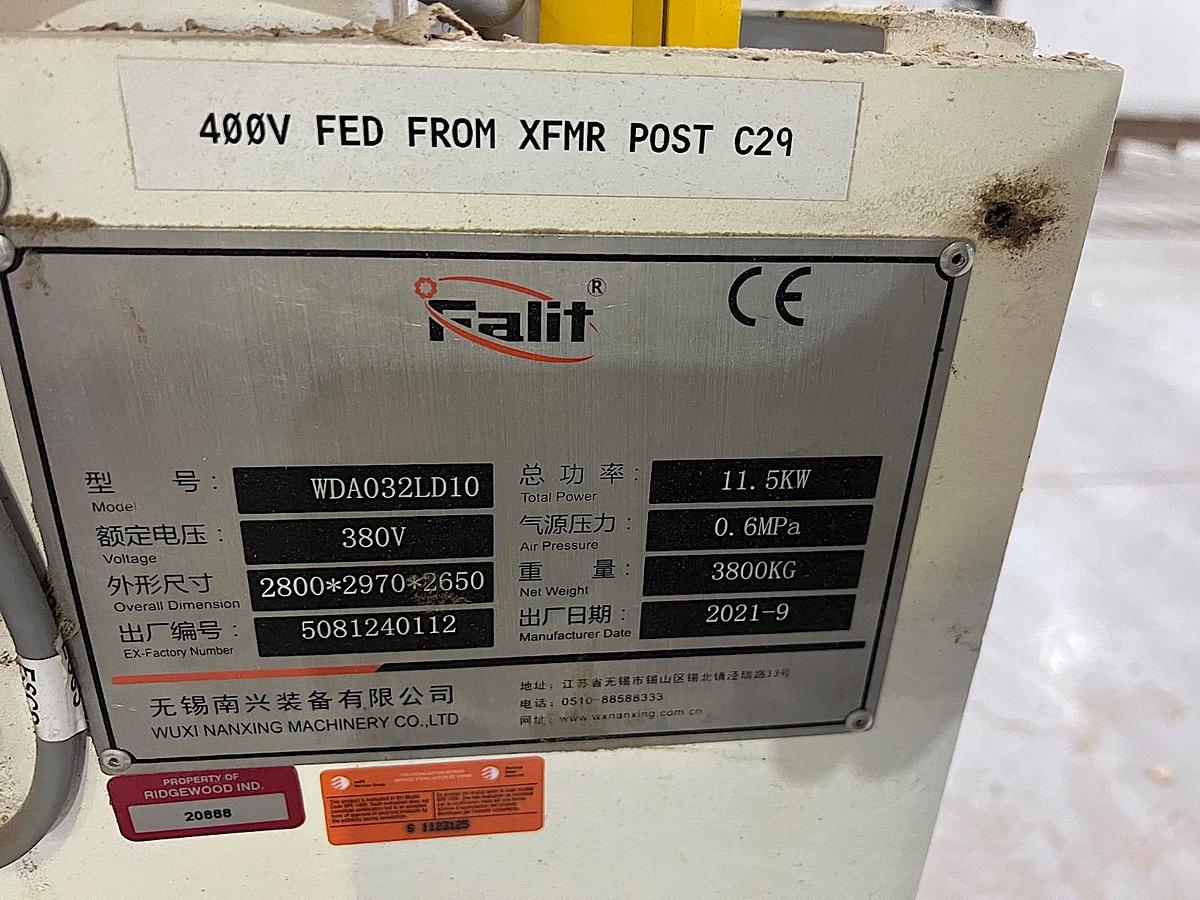

Technical Specifications:

Panel Length: 250–1200 mm

Panel Width: 30–530 mm

Panel Thickness: 10–25 mm

Drill Spacing: 32 mm (standard European/Euro 32 system compatible)

Drilling Motor Power: 1.5 kW × 5 (multiple spindles for multi-hole drilling)

Feeding Mode: Pneumatic

Dowel Insertion Quantity: 5+5 pcs (up to 10 dowels total per cycle; optional configurations like 3+3 or 4+4 available)

Total Power: 13.5 kW

Maximum Processing Speed: 12–20 pieces/min (depending on part size, hole count, and setup)

Machine Dimensions (L × W × H): 2900 × 2900 × 2650 mm
