2021 NANXING NCP3312Z2 CNC MACHINING CENTRE POD AND RAIL

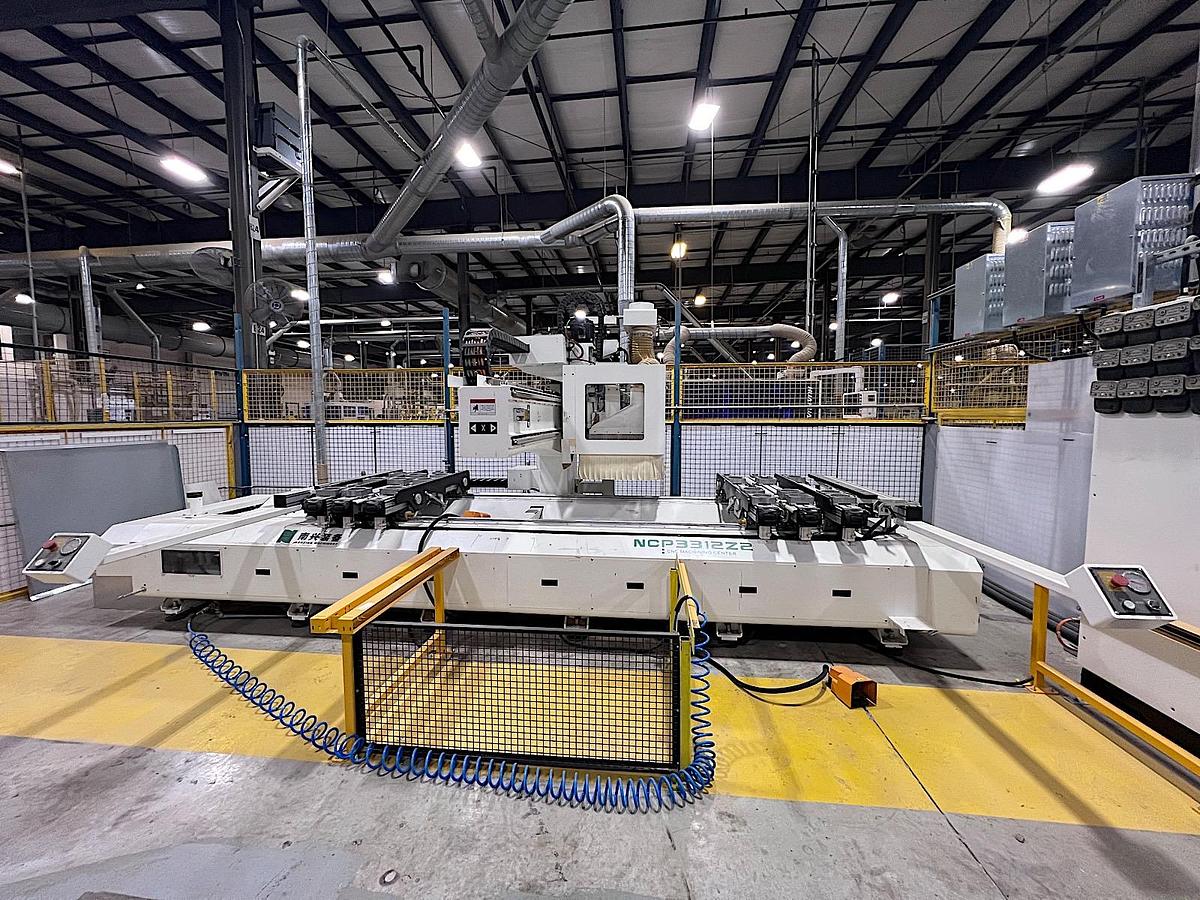

2021 Nanxing NCP3312Z2 CNC Machining Centre – Pod & Rail Table, 5-Side Boring, Dual Zone, High-Efficiency Furniture Production

This advanced CNC machining center with pod and rail table is ideal for customized furniture manufacturing. It bores 5 sides and routes the top side in a single process, with two alternating working stations for higher production efficiency. The machine integrates seamlessly with furniture design software (open port to FCC software) – no extra setup required. Operators can easily track panel shapes, processing status, edit designs, and view order data. Servo-controlled axes (X, Y, Z) and automatic tool changes deliver precision and speed.

Key Features & Benefits

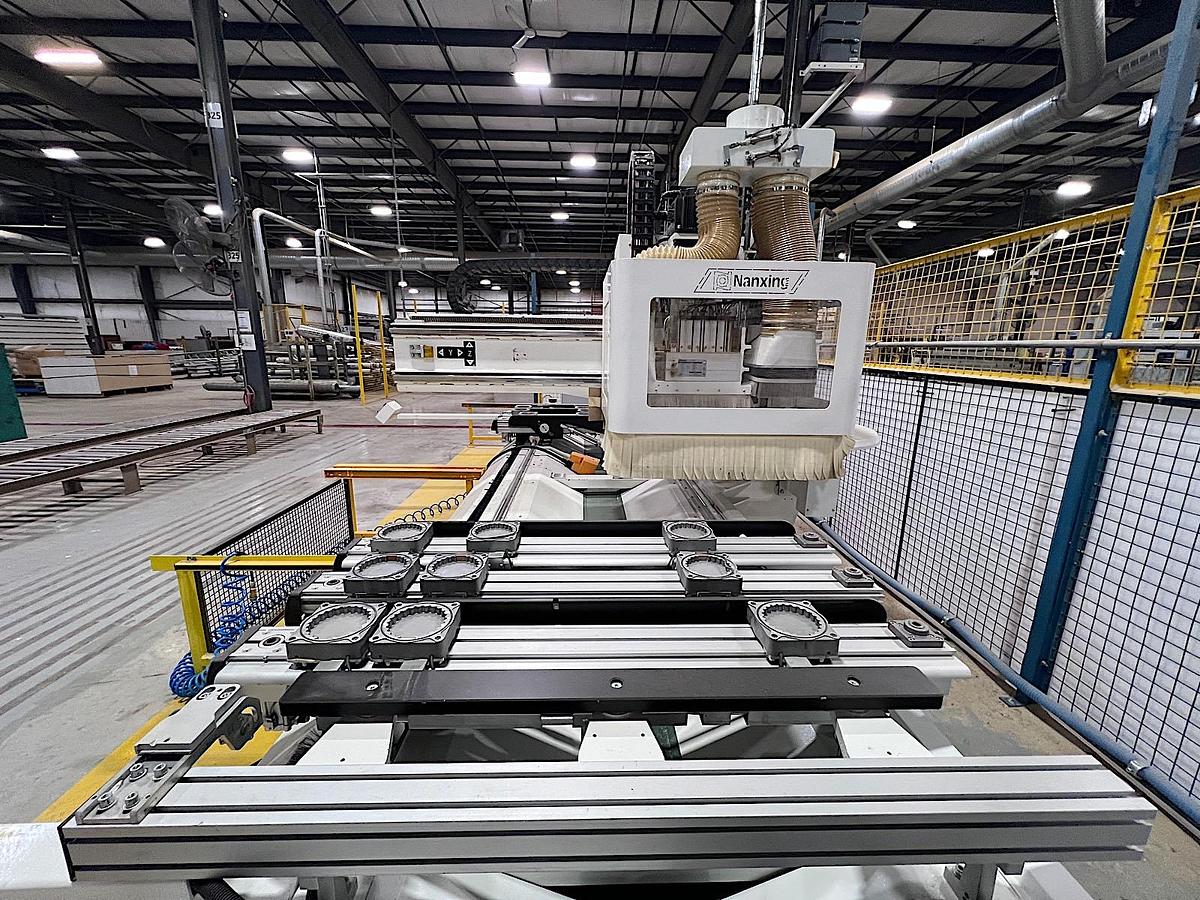

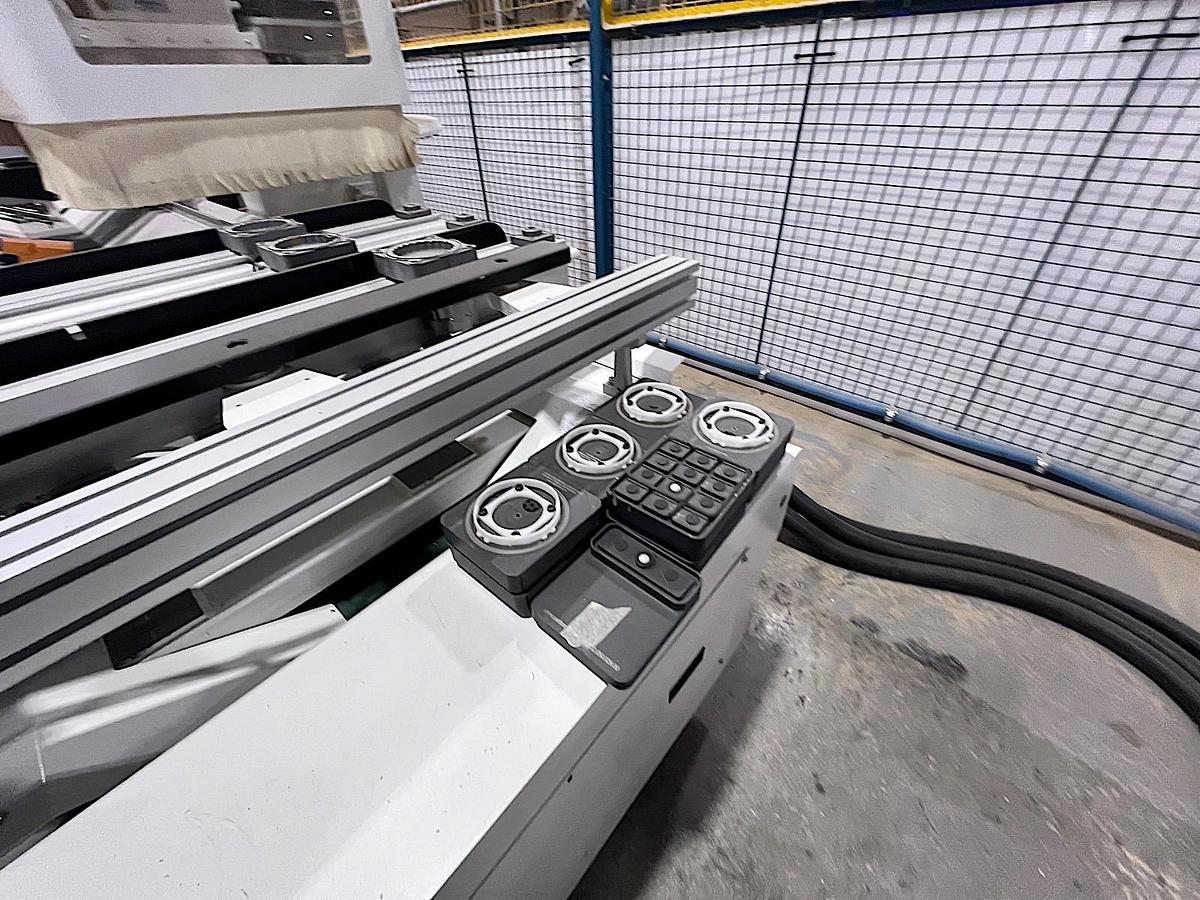

• Pod & rail table with 6 rails (4 suction cups each) and 18 fast-switch suction pods; supports 3 pod types for various panel shapes/sizes, including narrow panels down to 50mm
• Dual working stations for alternate processing – greatly improves throughput

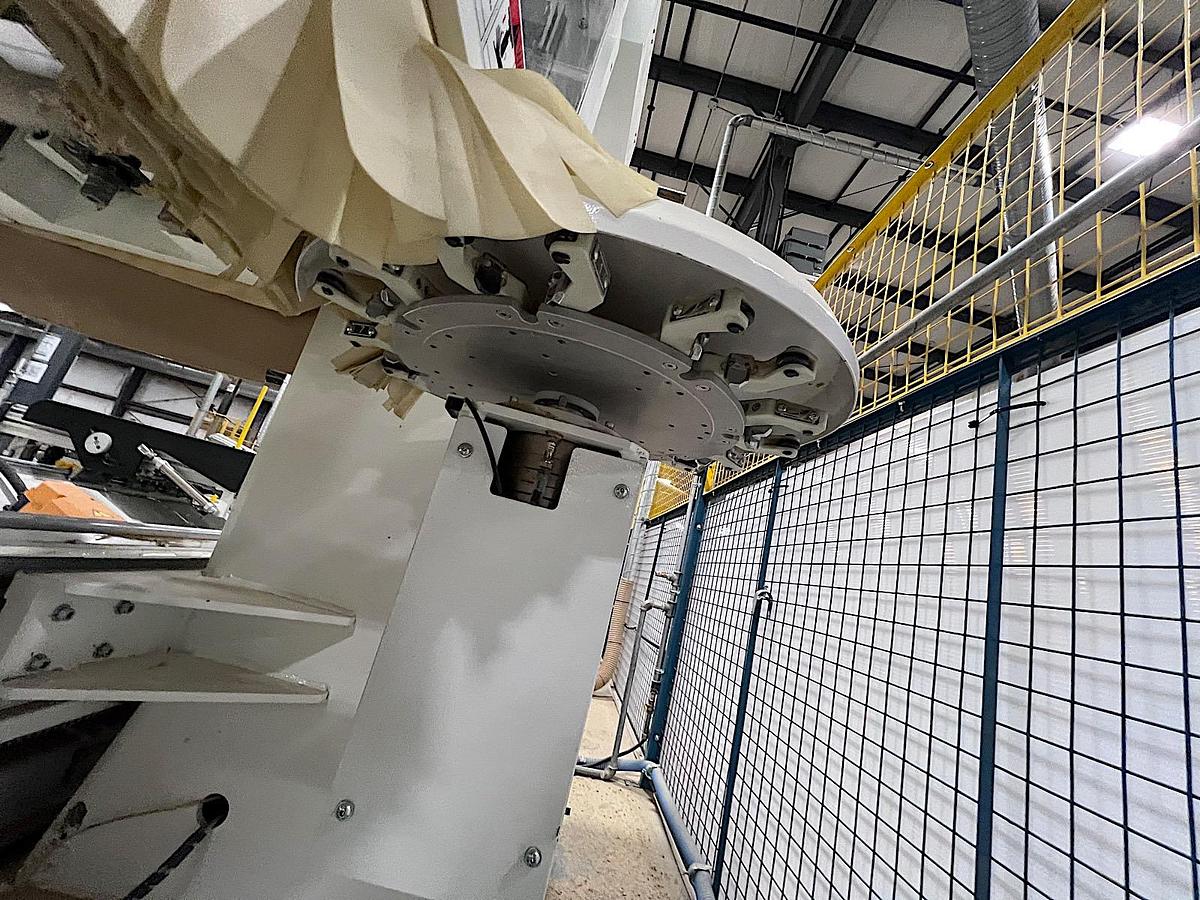

• Automatic tool changer (ATC) with 8 slots (HSK-63F tool holder, ER32 collet); includes 1 tool coupler
• Powerful 12 kW air-cooled main spindle, up to 24,000 RPM

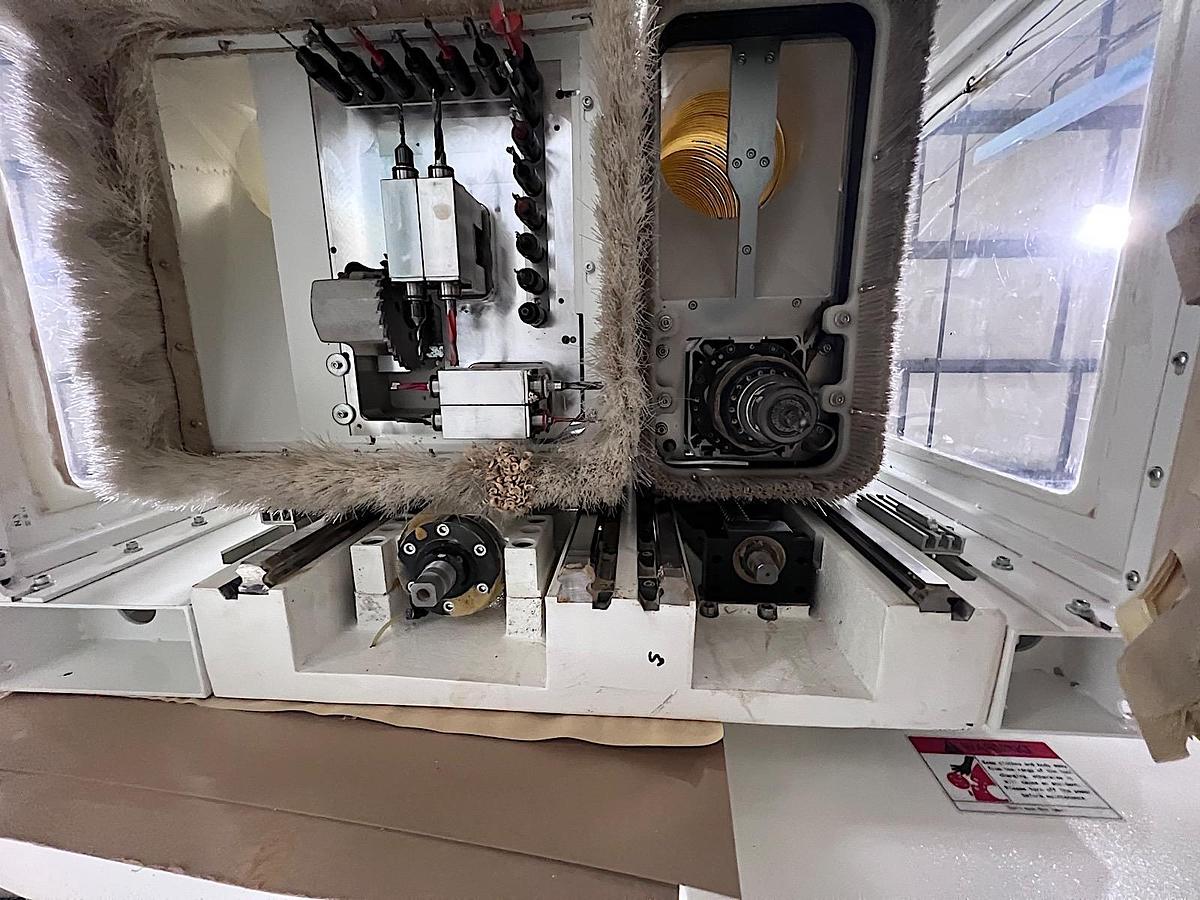

• Drilling unit: 1.7 kW, 4,000 RPM; 14 vertical drills + 8 horizontal drills (4X + 4Y) + 1 grooving saw blade (Φ120 mm)
• Safety features: safety light curtain for dual stations, independent dust extraction covers
• Barcode reader: scan panel info from furniture software for simple production-line operation
• Positioning devices: cylinder-driven positioning pins and special narrow-panel device
• Automatic lubrication system, high-quality drag chains, hand wheel for easy debugging

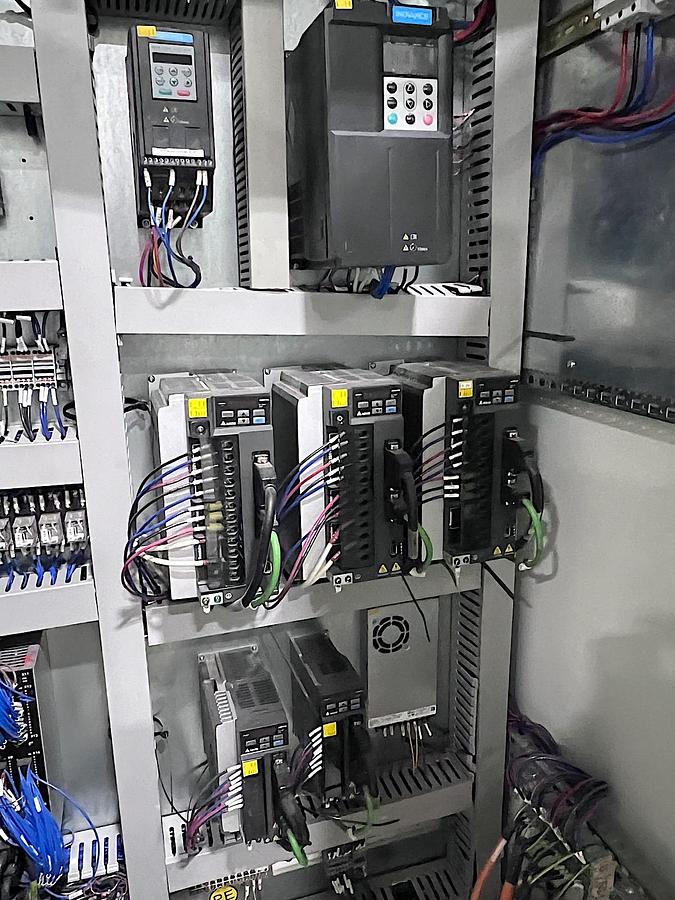

• Heavy-duty welded machine body with triangle support, stress-relieved components, and servo motors (X 3kW, Y 2kW, Z 1kW) for stability and reduced vibration
• Rack & pinion (X/Y), ball screw (Z) for accuracy

Technical Specifications

• Working Range: X: 3,300 mm, Y: 1,250 mm, Z: 170 mm
• Table Size: 3,300 × 1,250 mm
• Max. Travel Speed: X/Y: 80 m/min, Z: 30 m/min
• Vacuum Pump: 5.5 kW, 0.6 kg/cm², 160 m³/h flow rate (air-cooled)
• Dust Extraction: Φ200 mm outlet, 28 m/s required speed
• Air Supply: 7 kg/cm² required
• Power Supply: 380V, 3-phase, 50 Hz
• Total Power: 29 kW
• Overall Dimensions (L×W×H): 5,000 × 2,600 × 2,620 mm
• Net Weight: Approx. 4,800 kg
