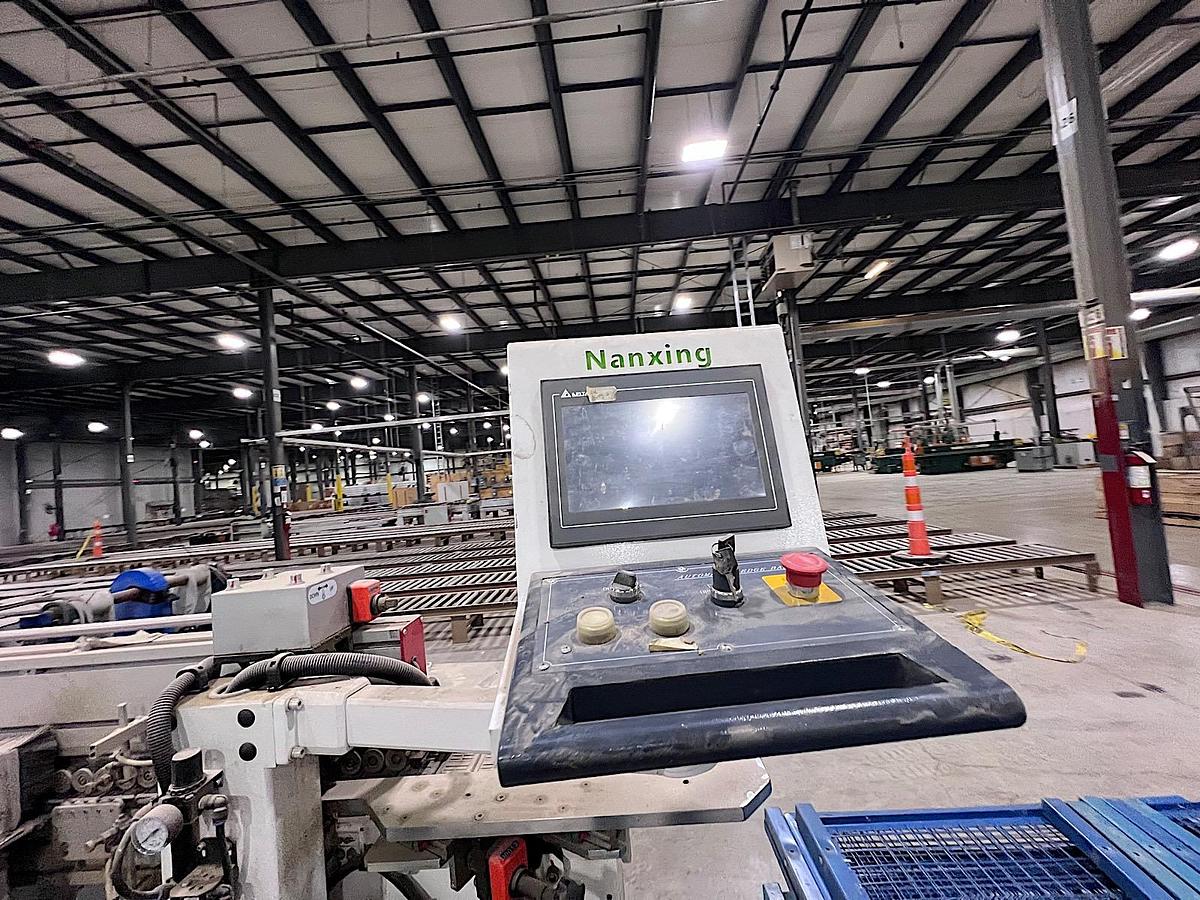

2021 NANXING NB7CJMN DOUBLE GLUING UNIT EDGEBANDER

2021 NANXING NB7CJMN DOUBLE GLUING UNIT EDGEBANDER

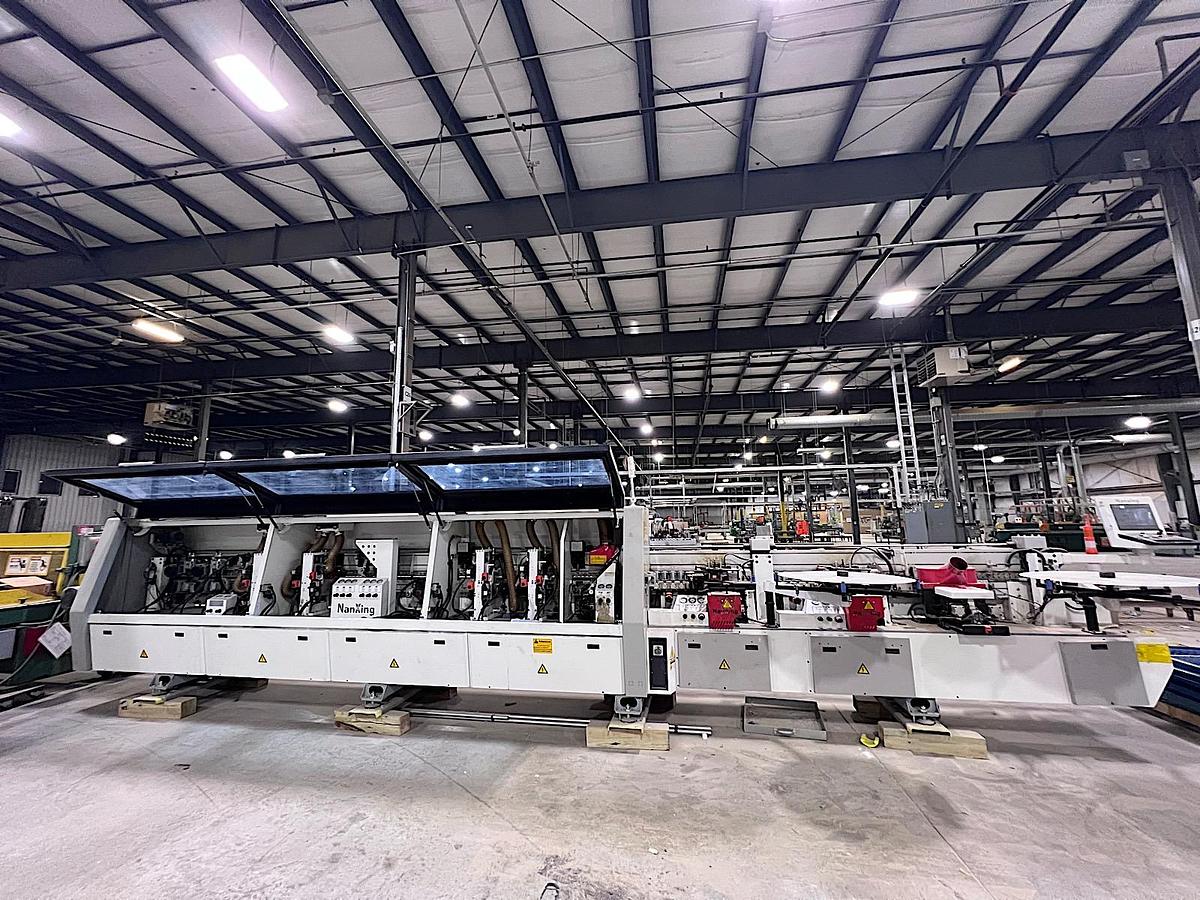

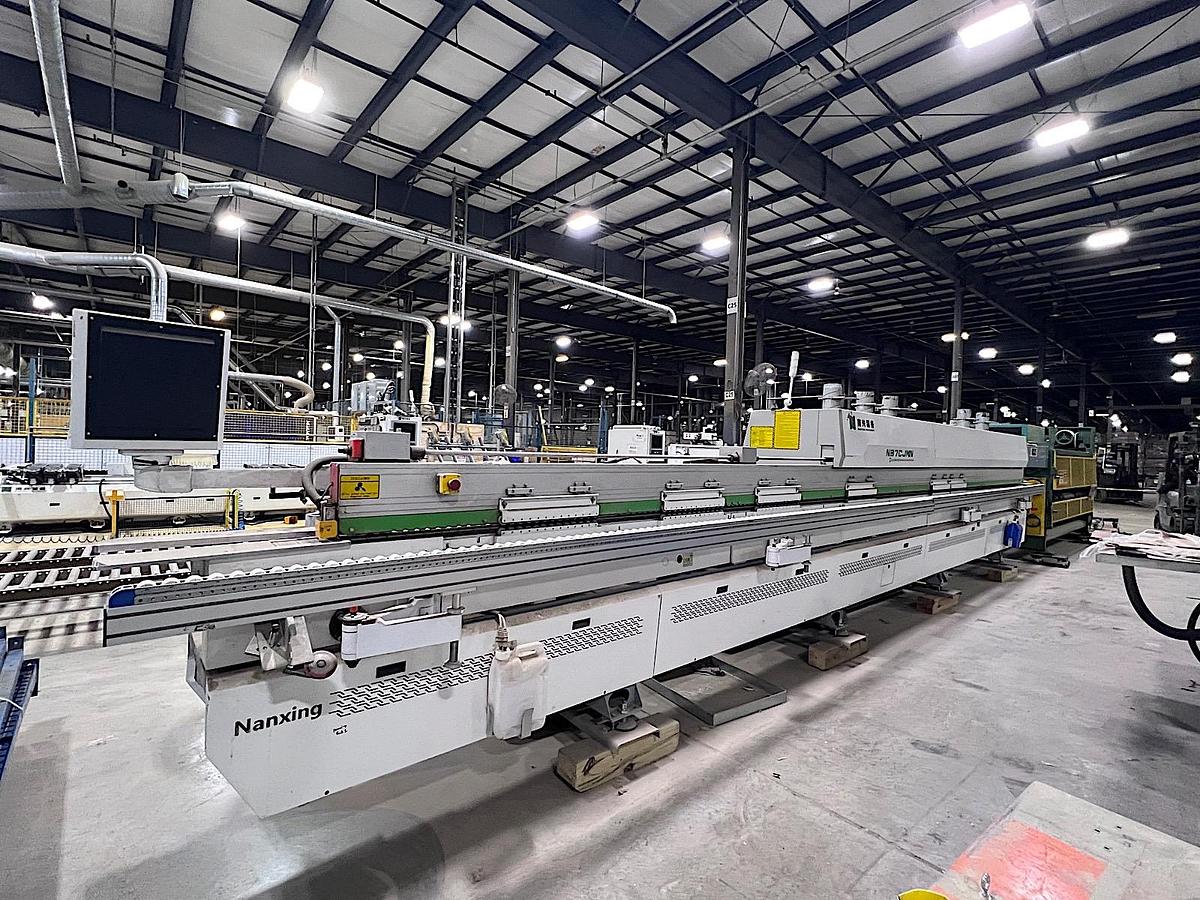

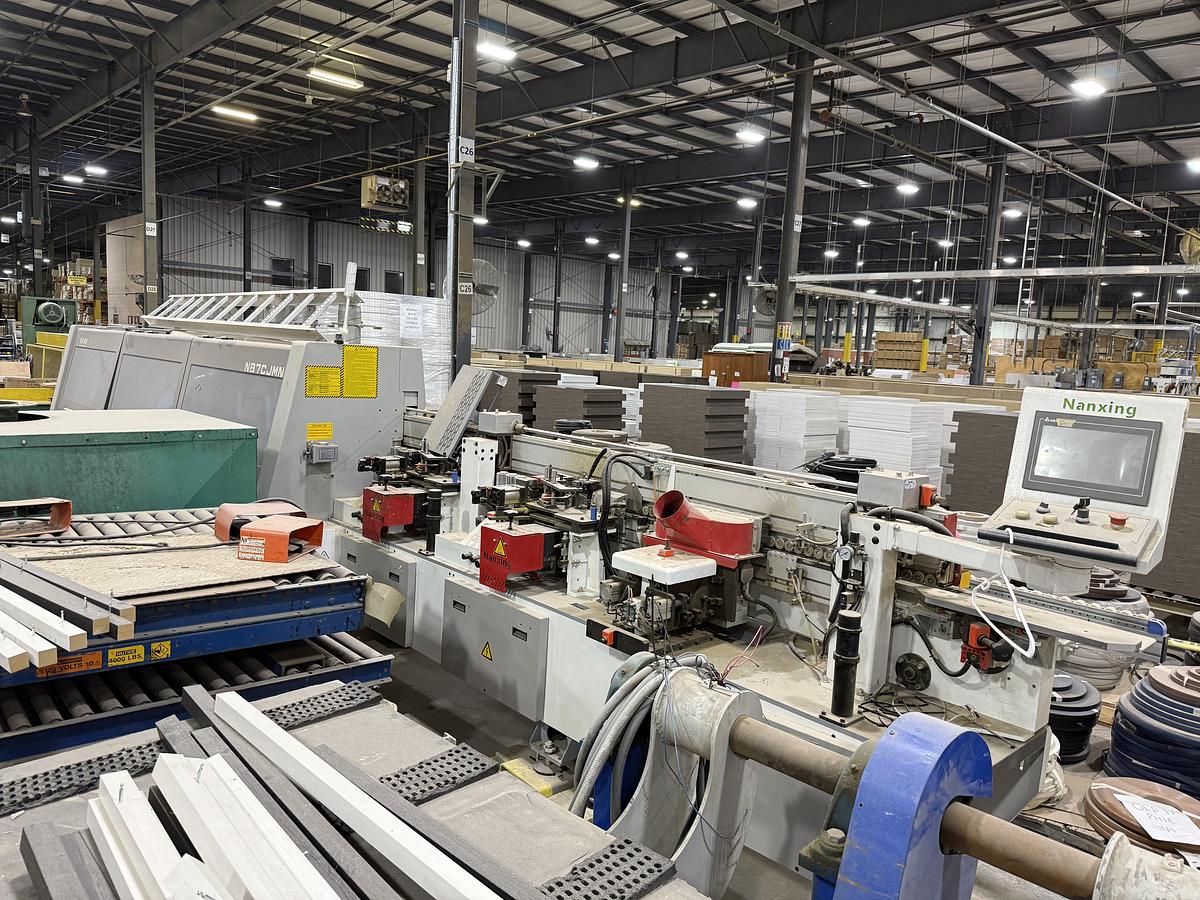

Automatic single-sided edgebander from Nanxing Machinery, specialized model NB7CJMN (variant of the NB7 series with narrow parts capability). This machine excels at edge banding narrow workpieces (down to ~30mm length with assistance rollers) and features dual gluing units for quick switching between colors/materials (e.g., light/dark glue without downtime).

Key Features & Stations (full-function in one pass):

• Pre-milling unit (diamond cutters for clean panel prep)
• Pre-heating

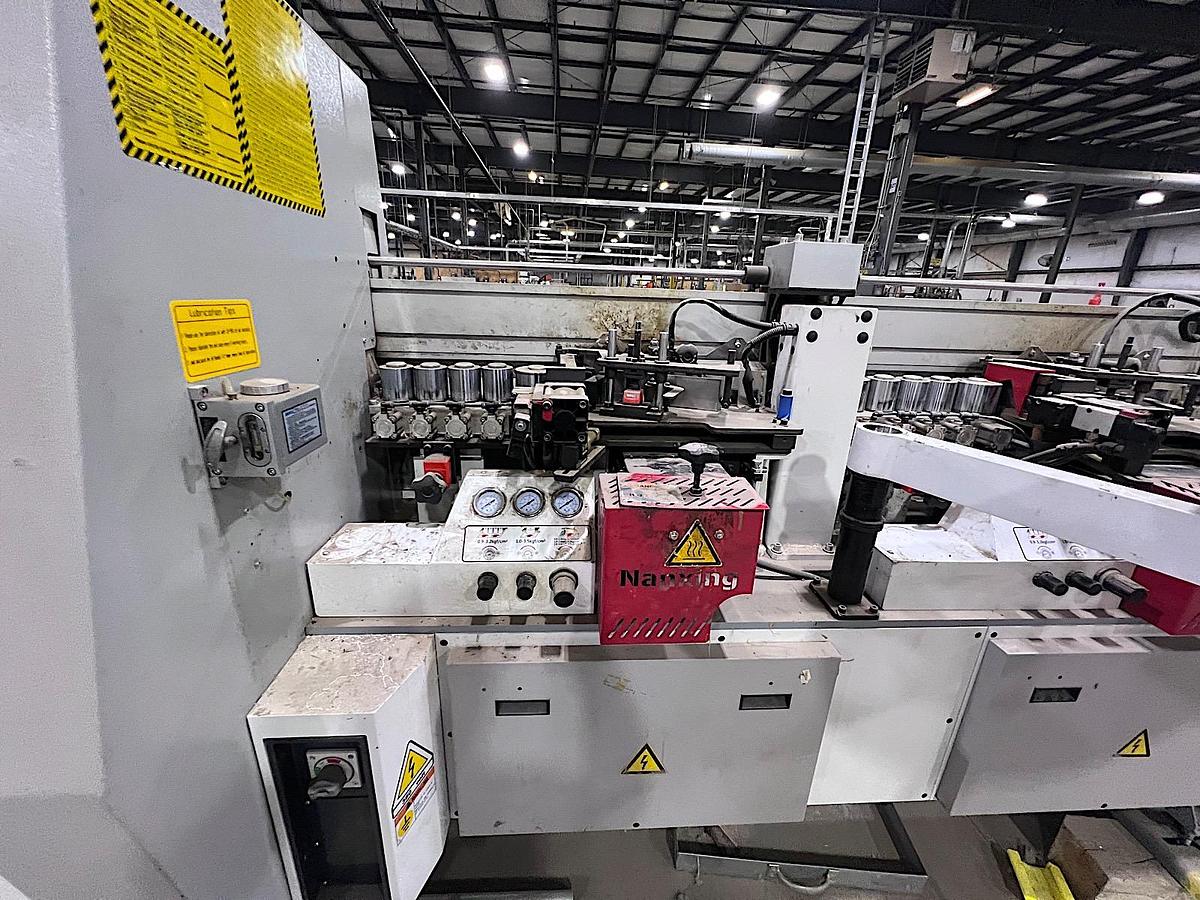

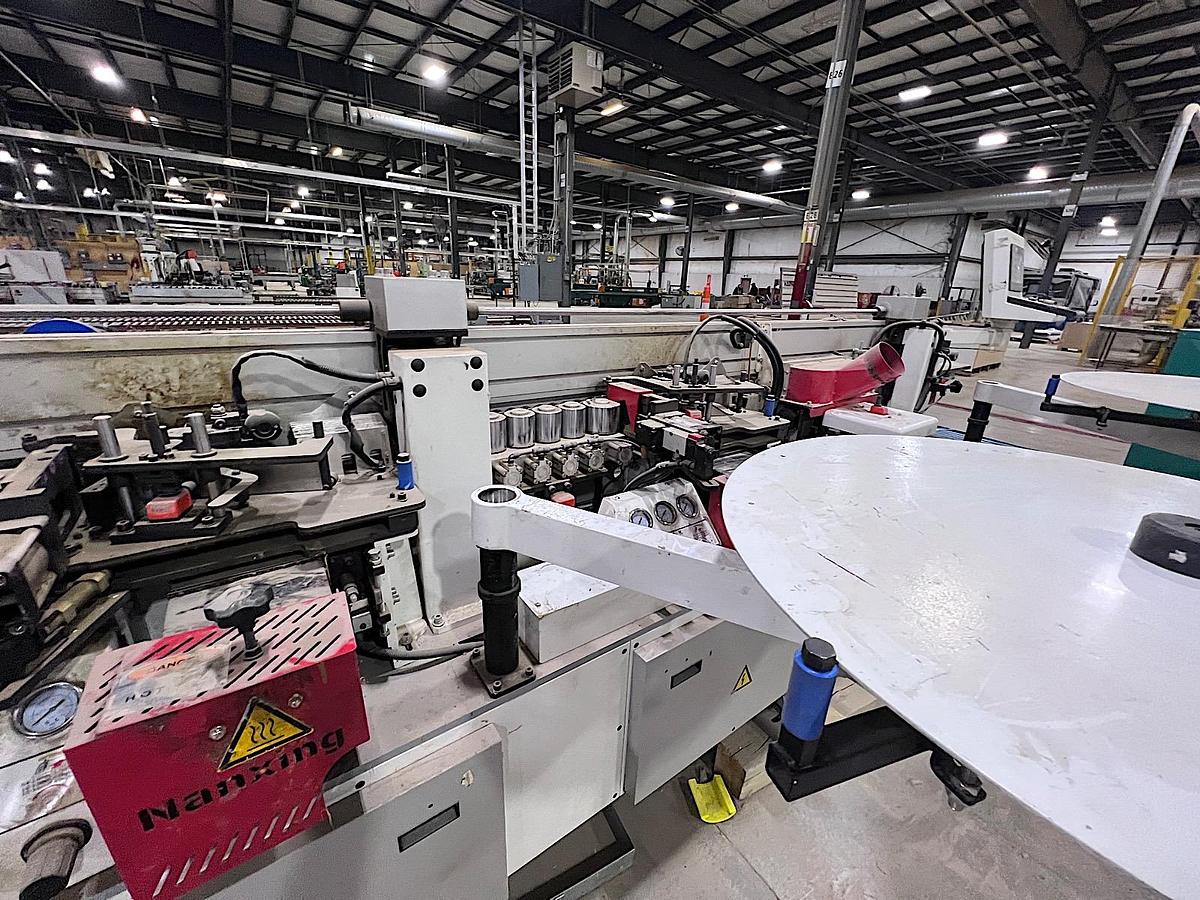

• Dual glue pots / double gluing units (ideal for PUR/EVA, fast color changes)
• Tape snipping (x2)

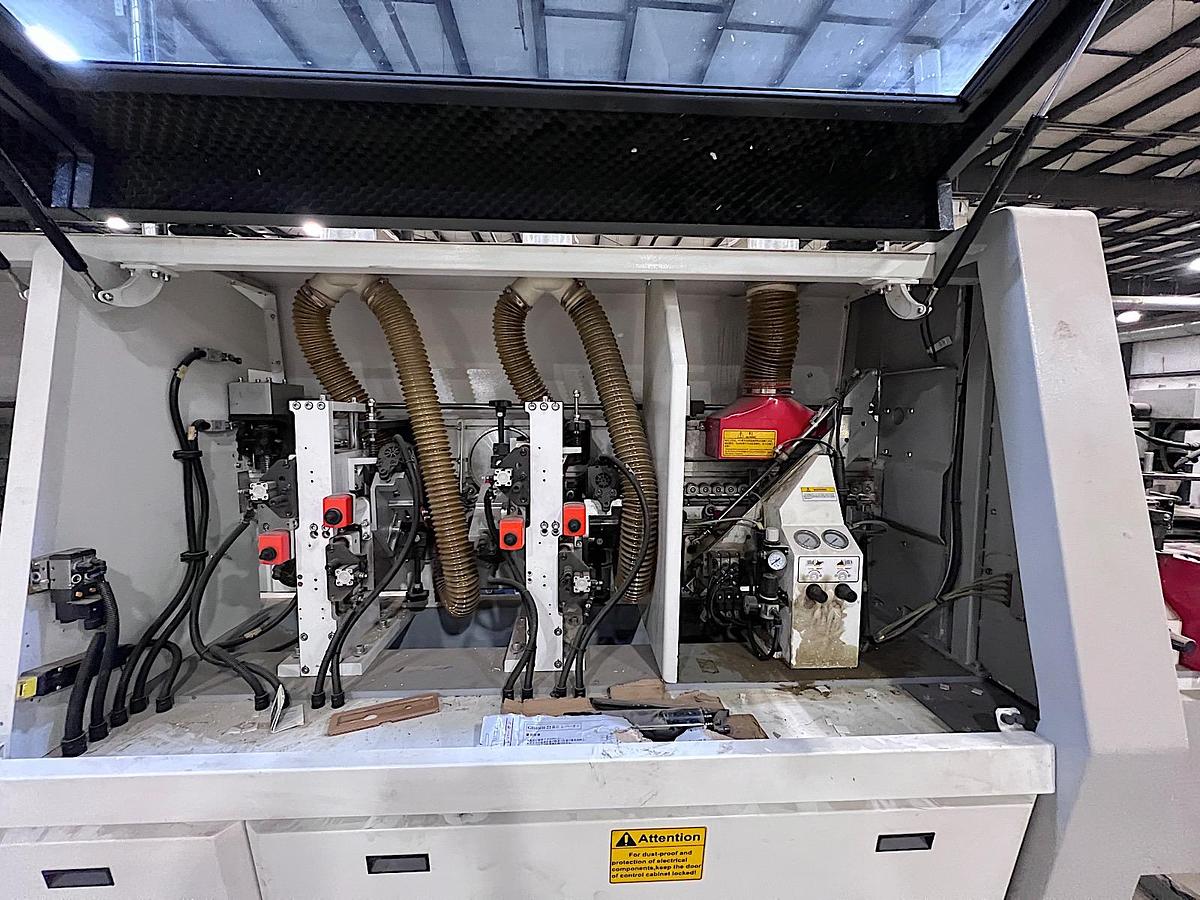

• End trimming

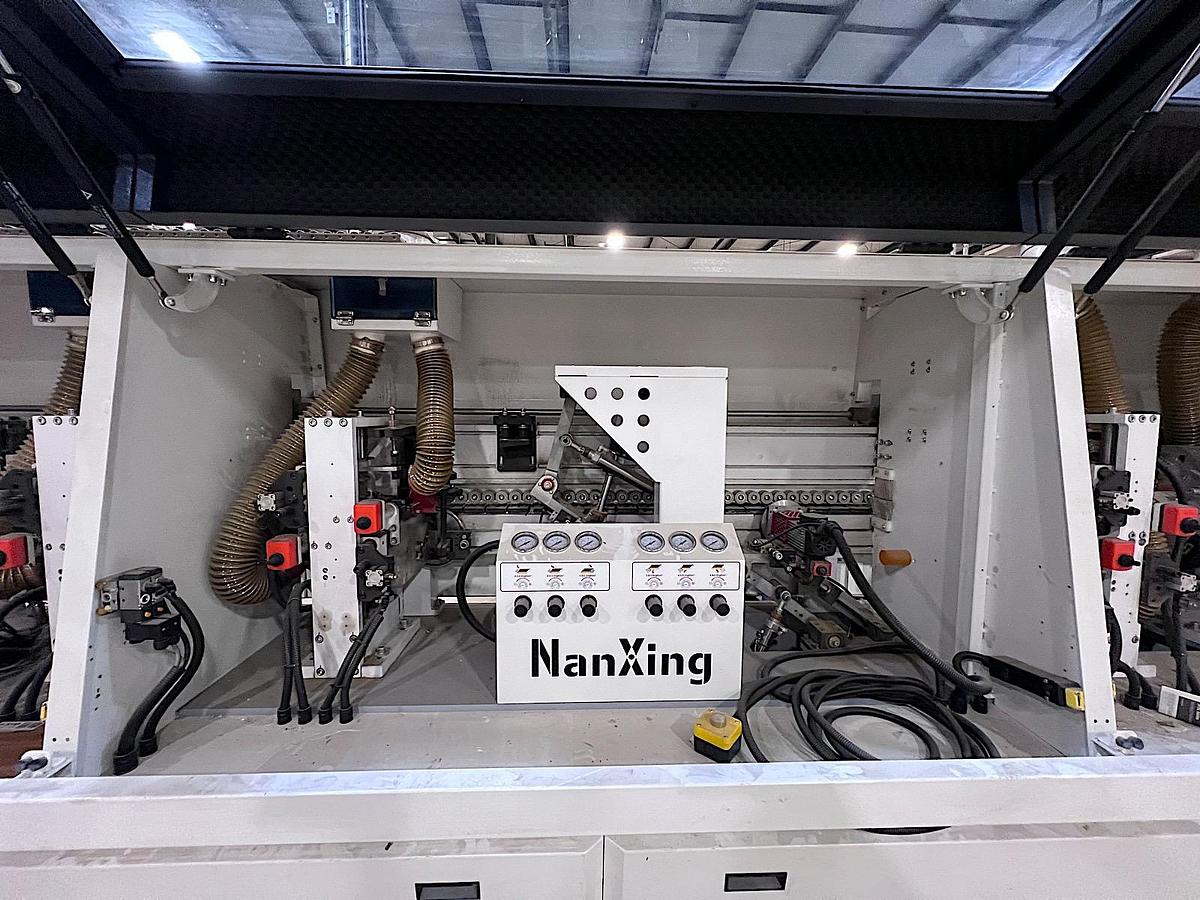

• Rough trimming
• Fine trimming

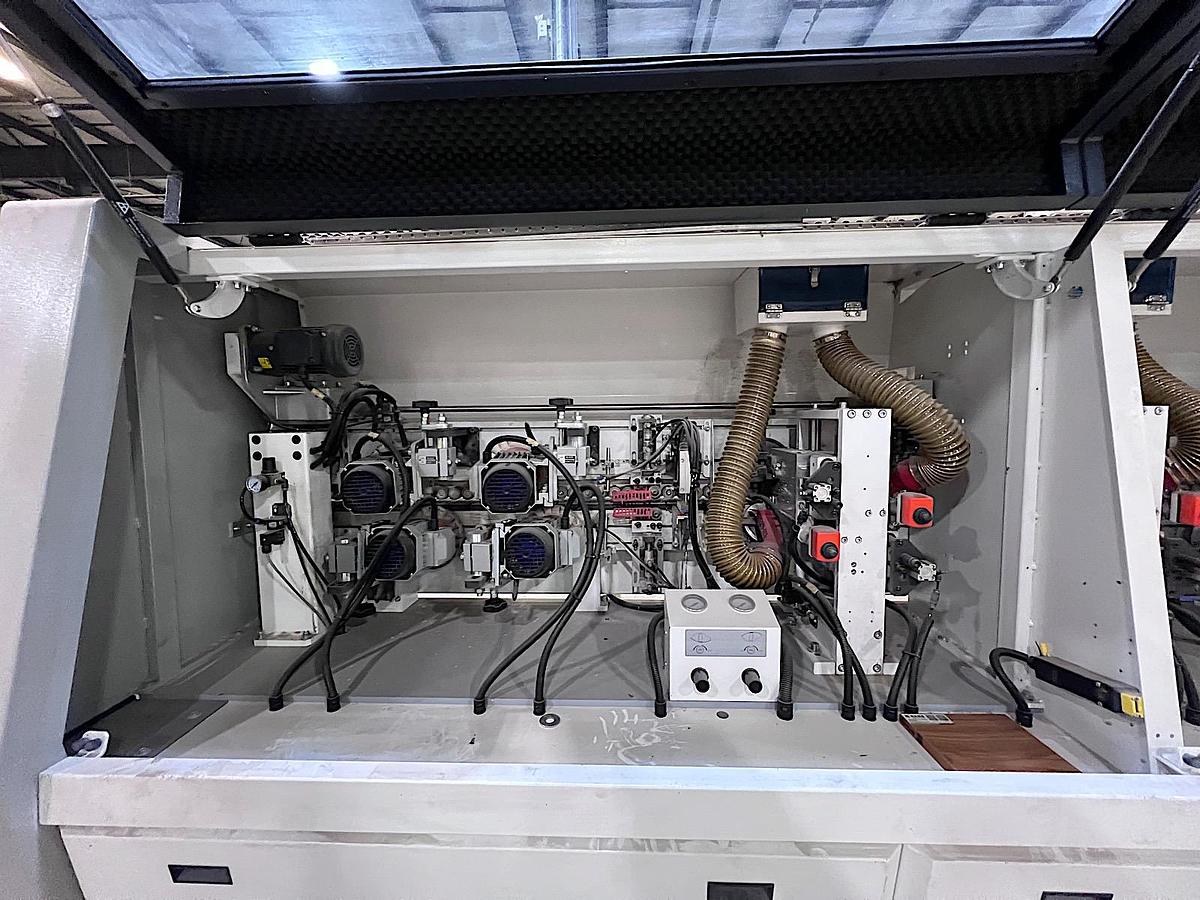

• Corner rounding / trimming
• Scraping (with air jet cleaning)
• Buffing
• Assistance rollers & compact press system for narrow edge banding (min ~30mm short edge, 45mm capability shown in demos)

Technical Specifications (based on Nanxing NB7CJ / NB7CJMN series):

• Min. panel size: ~120 × 80mm (narrow parts down to 30–60mm with assists)
• Panel thickness: 9–60mm (some configs 10–60mm)
• Edge tape thickness: 0.4–3mm (PVC, ABS, thin plastic; some configs support thicker solid strips)
• Feeding speed: Variable 16 / 20 / 24 m/min
• Total power: ~22–24 kW
• Power supply: 380V / 50Hz, 3-phase (common industrial)
• Air pressure required: 0.7 MPa
• Dust extraction: φ125mm × multiple ports
• Overall dimensions: Approx. 7700 × 1050–1450 × 1650mm
• Weight: ~2600–2800 kg
