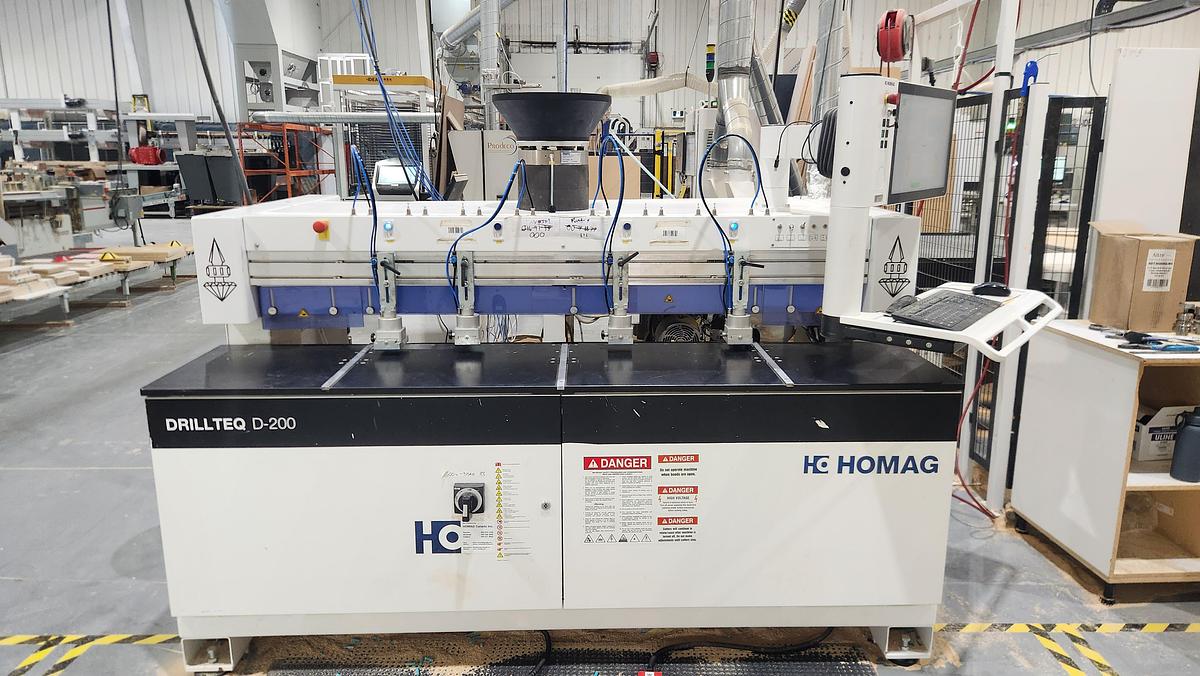

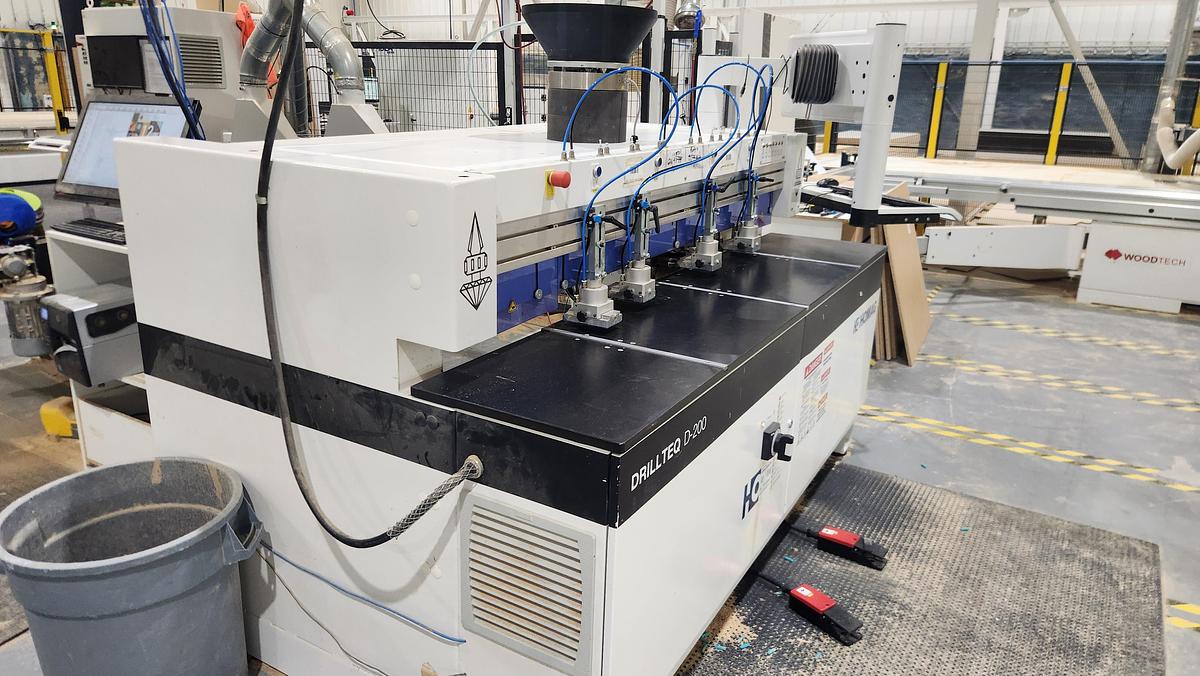

2019 Homag Drillteq D-200 CNC DRILLING / DOWEL INSERTION MACHINE

2019 HOMAG DRILLTEQ D-200 CNC DRILLING AND DOWEL MACHINE

IS EQUIPPED WITH FOUR PNEUMATIC CLAMPING CYLINDERS FOR SECURE WORKPIECE FIXATION, MANUALLY ADJUSTABLE REFERENCE FENCES (LEFT, CENTER, AND RIGHT) FOR VERSATILE POSITIONING, AND A SINGLE DRILLING UNIT FEATURING THREE INDEPENDENT HORIZONTAL SPINDLES POWERED BY A 2.3 HP (1.7 KW) MOTOR OPERATING AT UP TO 3,420 RPM (WITH SOME CONFIGURATIONS REACHING 7,500 RPM). THESE SPINDLES HANDLE DRILL SHANKS UP TO 10 MM IN DIAMETER AND BITS UP TO 70 MM LONG. DOWEL INSERTION IS MANAGED BY A DEDICATED HOPPER AND SHOOTER, SUPPORTING 8 MM DIAMETER WOODEN DOWELS (30 MM OR 35 MM LENGTHS) WITH TOLERANCES OF ±1 MM IN LENGTH AND ±0.2 MM IN DIAMETER. A WATER TANK WITH PUMP ENSURES CLEAN, CHIP-FREE DRILLING, WHILE DUST EXTRACTION COMPATIBILITY MAINTAINS A SAFE WORKSPACE.
