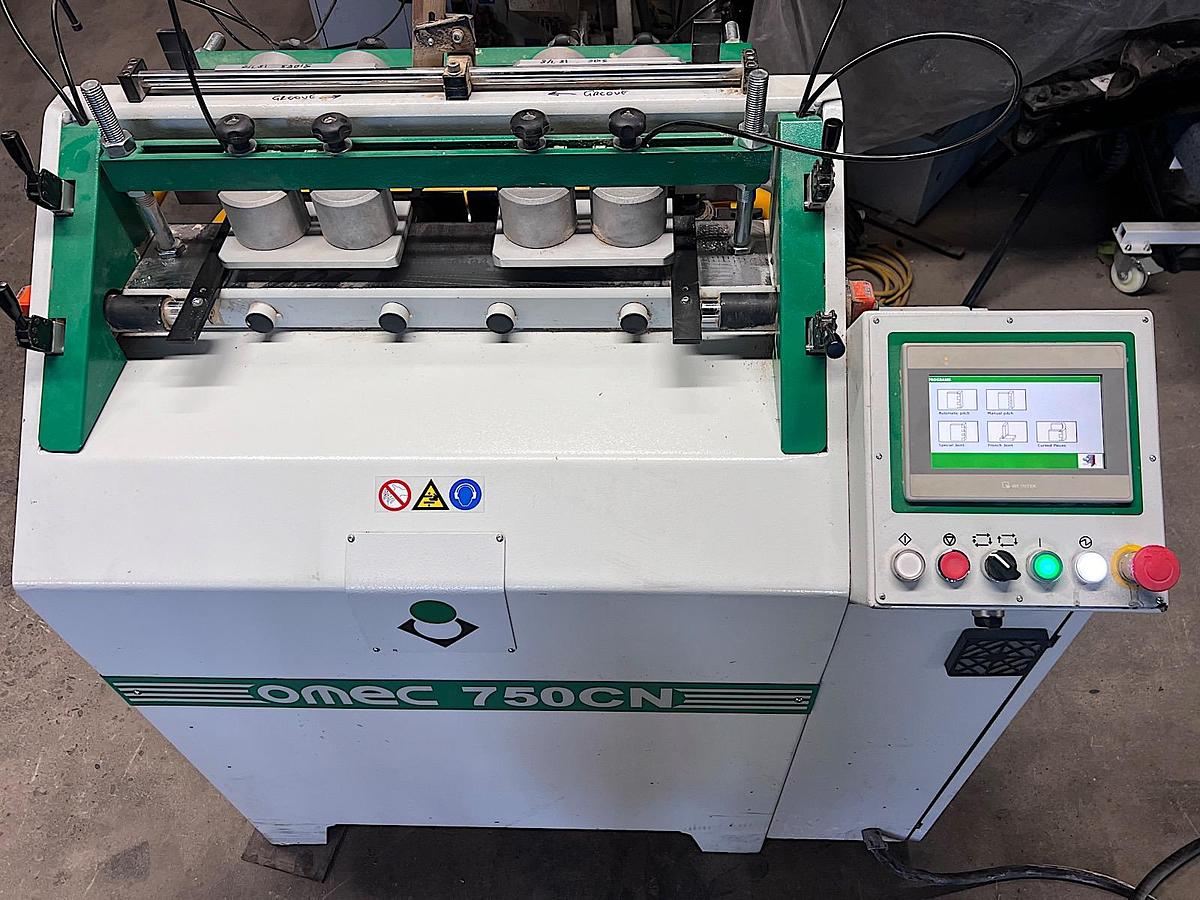

2020 Omec 750 CN C Dovetail Machine

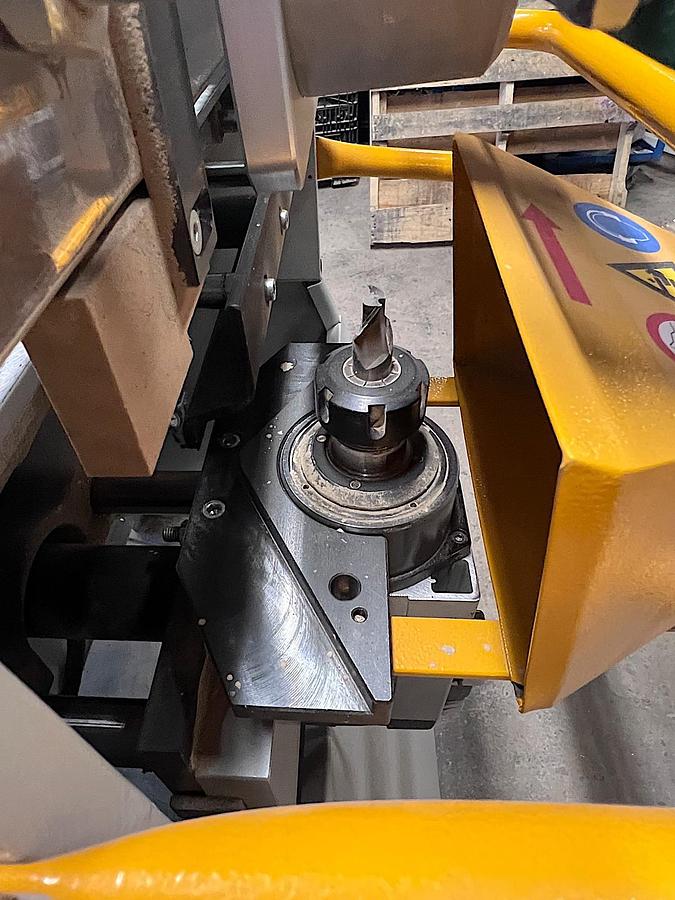

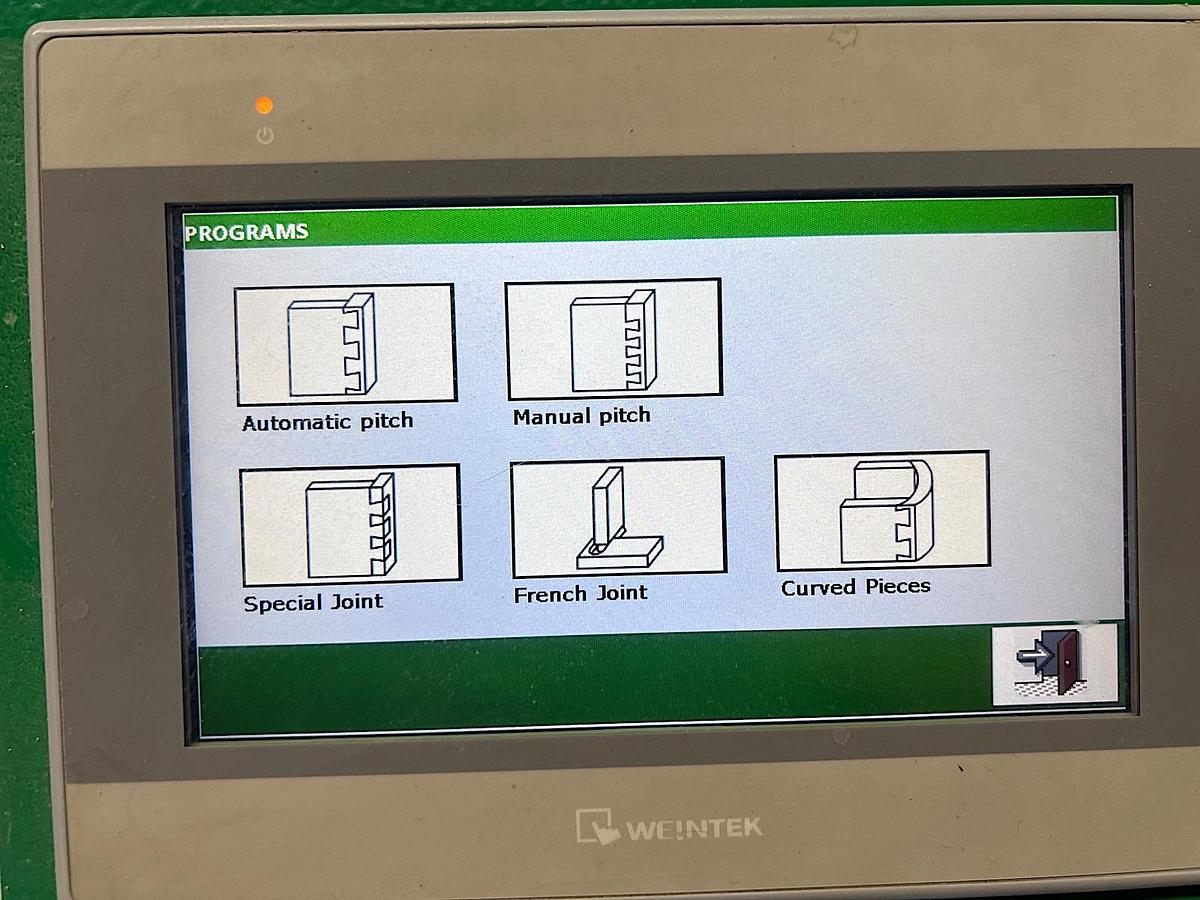

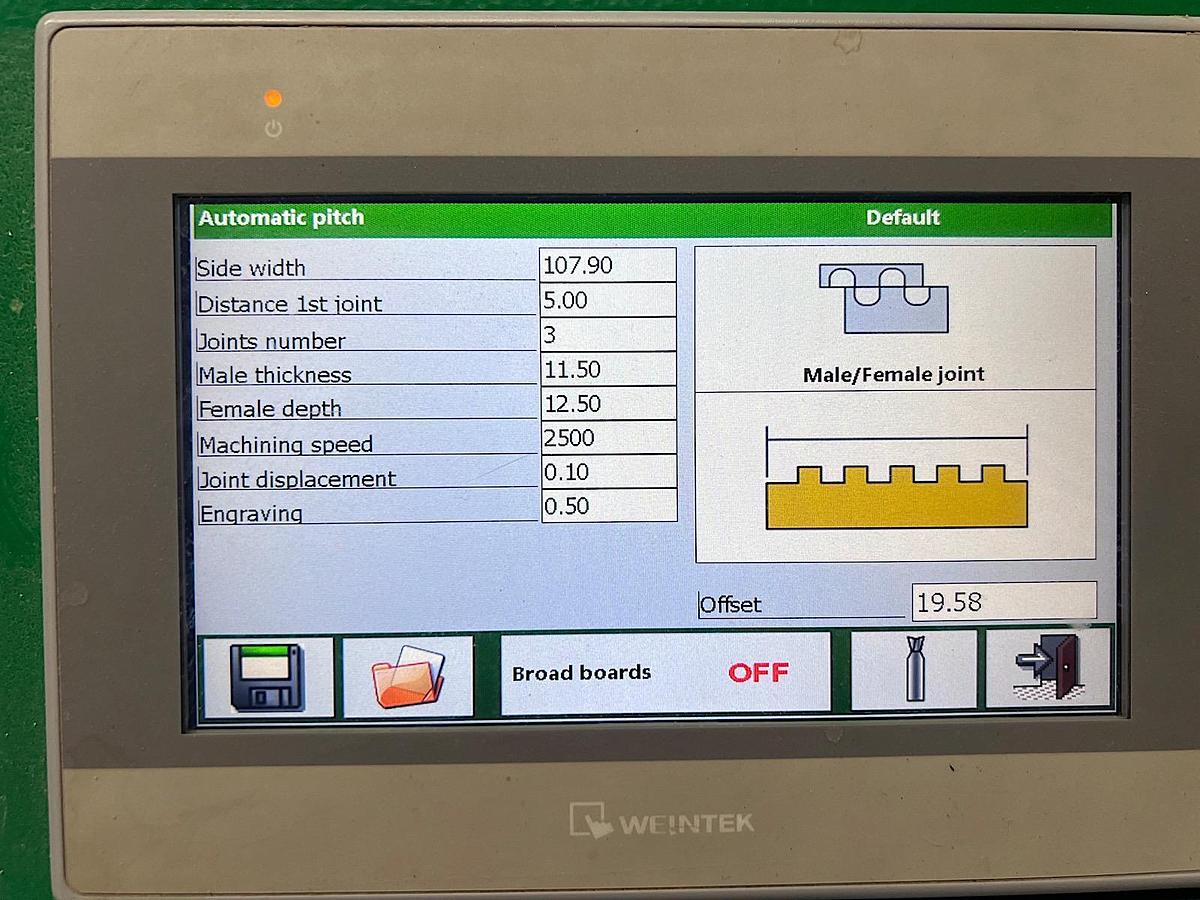

The OMEC 750CN is a two-axis automatic CNC dovetail machine designed for precision woodworking, ideal for crafting dovetail and parallel indents for drawers and furniture components. Equipped with a high-speed 18,000–21,000 RPM spindle and a single mill cutter, it produces indents of varying heights with exceptional accuracy. The machine supports simultaneous cutting of male and female workpieces, offering flexibility for single or paired operations. Its user-friendly touchscreen interface allows operators to input workpiece dimensions and customize dovetail patterns, adjusting variables like pitch, depth, number of indents, cutting speed, and tool feed. With a production capacity of up to 60 drawers per hour, the OMEC 750CN features pneumatic clamps, a noise- and dust-reducing spindle cover, and a robust design (weighing 312–410 kg). It accommodates workpieces from 200 mm to 1500 mm in length and 60 mm to 530 mm in width, with indent heights of 6–25 mm. Programmable for up to 40–600 custom programs, it ensures repeatability and efficiency, making it perfect for high-end dovetail drawer manufacturers seeking flexibility and precision.

Under power available for testing
