2017 Felder H08 16 31 5x10 Cnc Router with Auto Unload Table

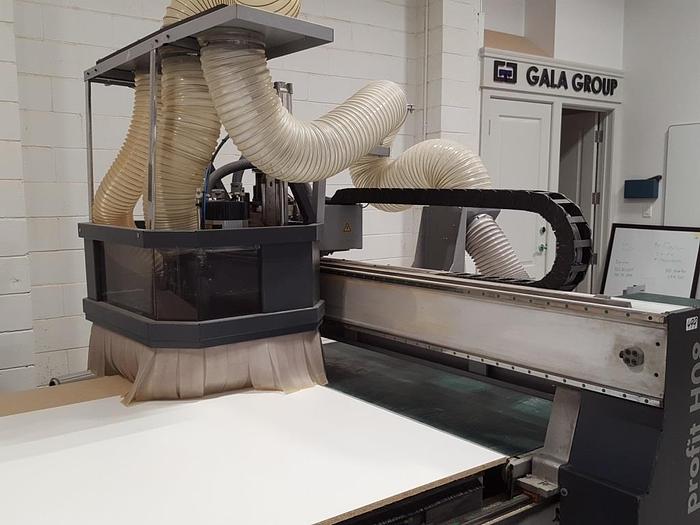

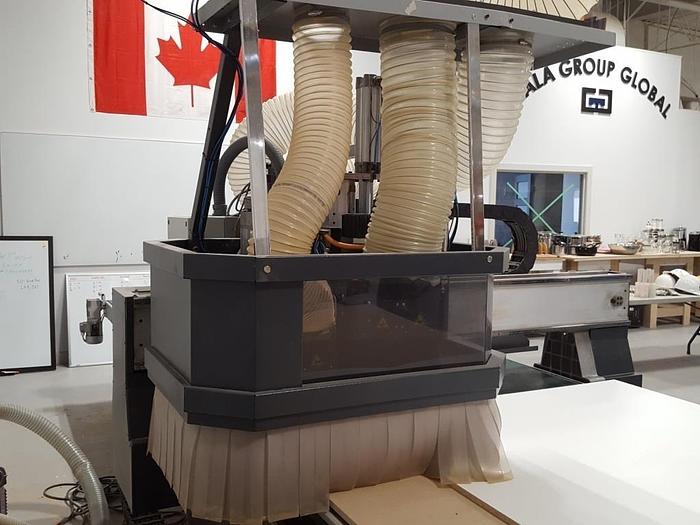

The Felder Format-4 Profit H08 16.31 is a CNC machining center designed for professional nesting applications, offering precision and efficiency in a compact footprint. It features a working area of 3090 mm (X) x 1530 mm (Y) x 85 mm (Z), making it suitable for processing standard panel sizes like 5'x10' (3090 mm x 1530 mm). The machine is equipped with a matrix table featuring optimized grid geometry for secure workpiece positioning, a high-performance milling spindle (typically 10 kW with an HSK-F63 tool holder in the Professional package, running up to 24,000 rpm), and a vertical drilling unit with 8 spindles. It also includes a tool changer with up to 15 positions for quick tool swaps, enhancing productivity.

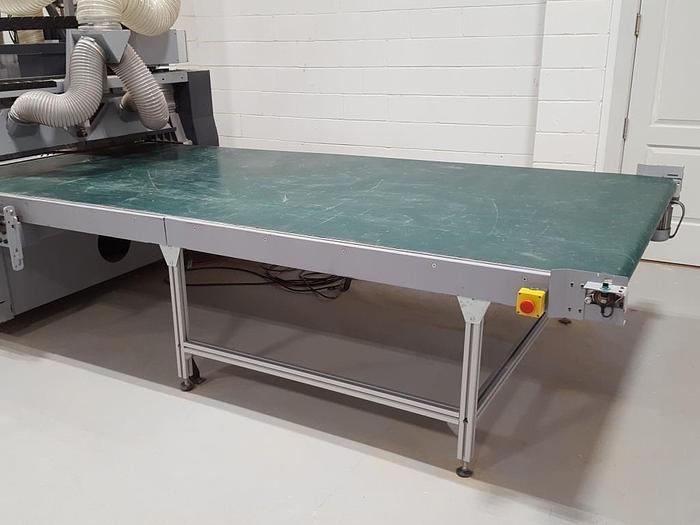

This machine features the automatic unloading unit with an electromotive offloading pusher. This addition allows finished workpieces to be automatically pushed off the table after processing, reducing manual handling and speeding up production cycles.
