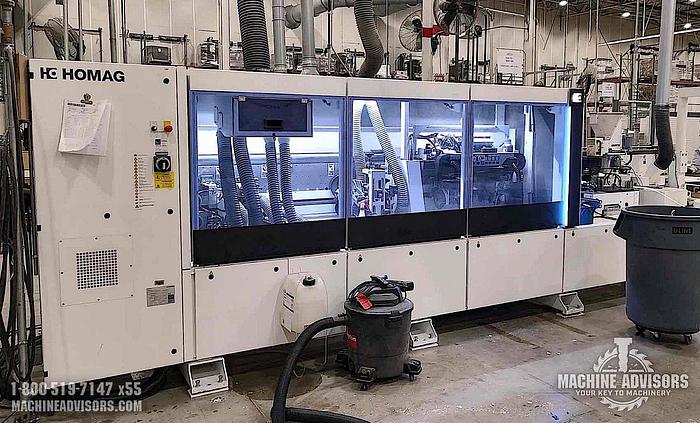

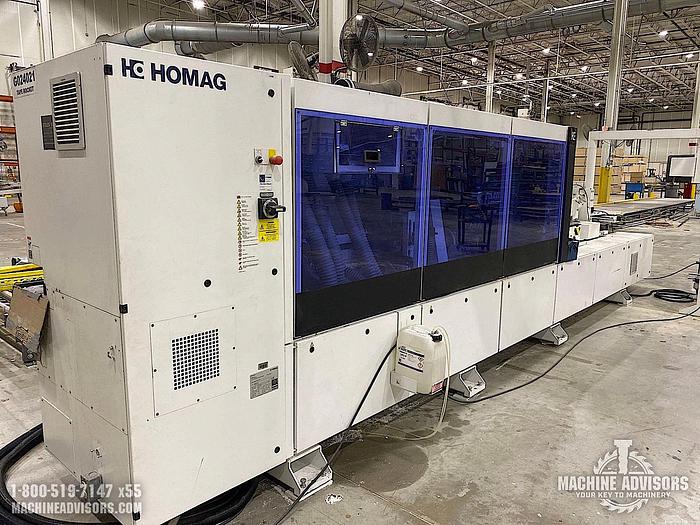

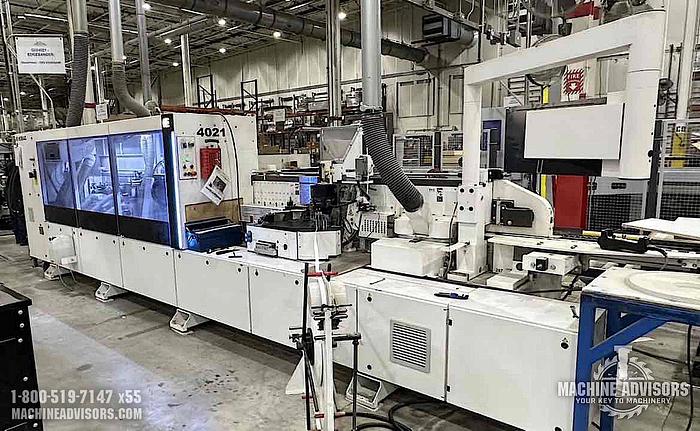

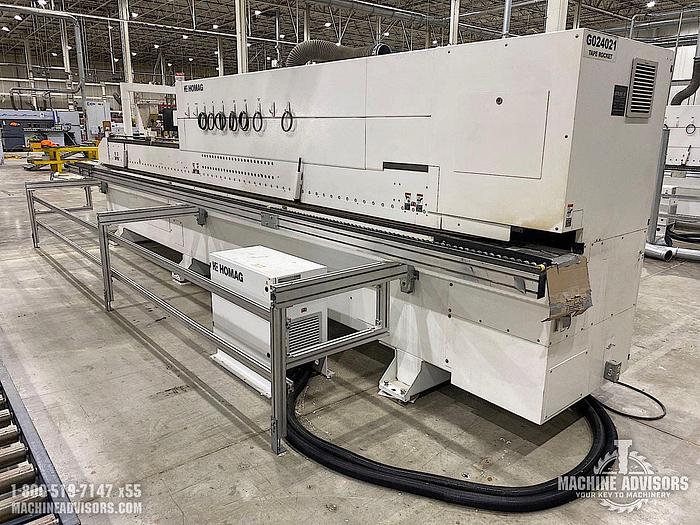

2020 Homag Edgeteq S-500 CNC Edgebander

The single-sided EDGETEQ S-500 provides precise gluing and flawless post-processing of edges, with the option to use PUR and airTec. Its selectable feed rate of 16-20, 25 (30) m/min allows for tailored productivity in woodworking shops and businesses with high performance needs. Automation and additional functionality can be customized for these edge banding machines.

Specifications:

• Tape Rocket 2.0 Left Hand
• Edge Thickness: 0.3-3mm
• Edge Height: 12-64mm
• Minimum Workpiece Width: 60mm with workpiece thickness of 22mm
• Workpiece Thickness: 8-60mm
• Machine Length; 24'
• Working Height: 3'

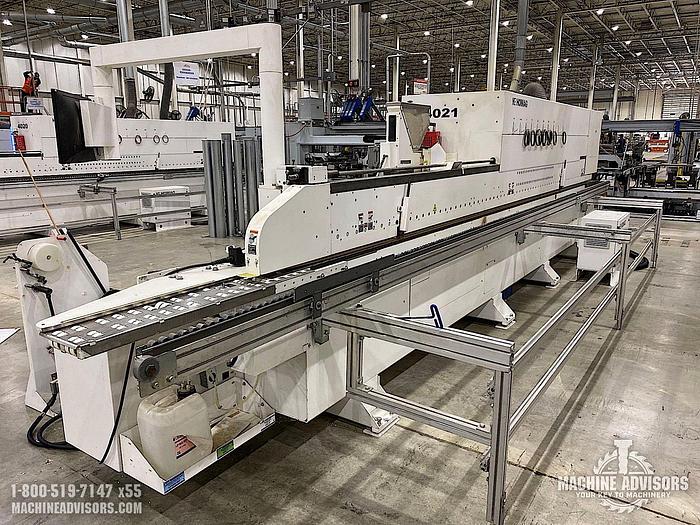

• Extendable Workpiece Support 3.2'
• Variable Feed Speed: 52 1/2 - 82' Minute
• Workpiece Overhang: 1 1/8" 480 Volts-32AMP

Features:

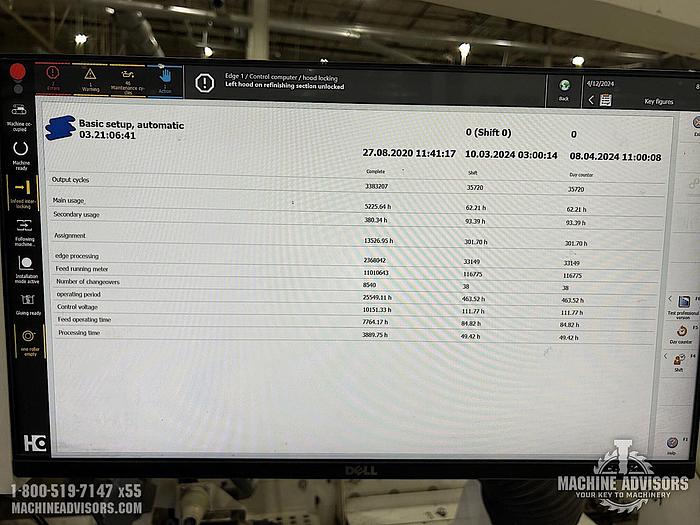

• Homag Powertouch CNC Controls
• LPZ Release Agent Spraying Unit
• Pre Milling Unit
• Panel Pre Heating
• GA65P Glue Unit

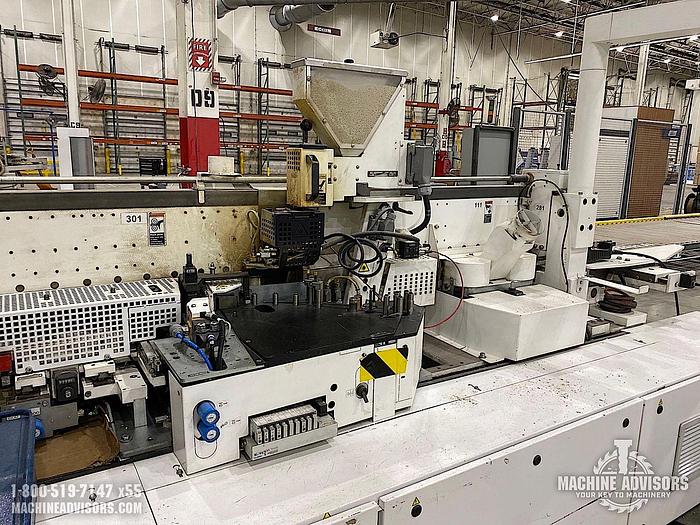

• Quickmelt Pre Melter
• Quick Clamping System
• Glue Roller Drive
• Precision Controlled Edge Feeding
• Guillotine
• PK25 End Trimming Unit
• PF20 Fine Trimming Unit
• PN 10 Profile Scrapping Unit
• FA06 Edge Buffing Unit
• Tapio Ready
• Homag flat screen CNC controls
