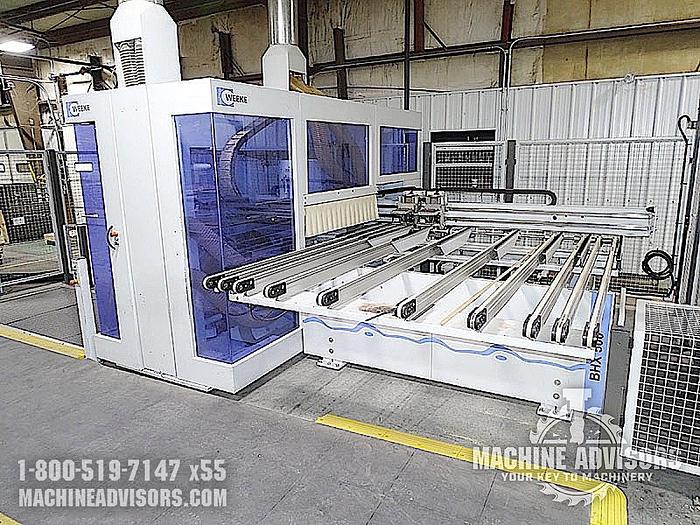

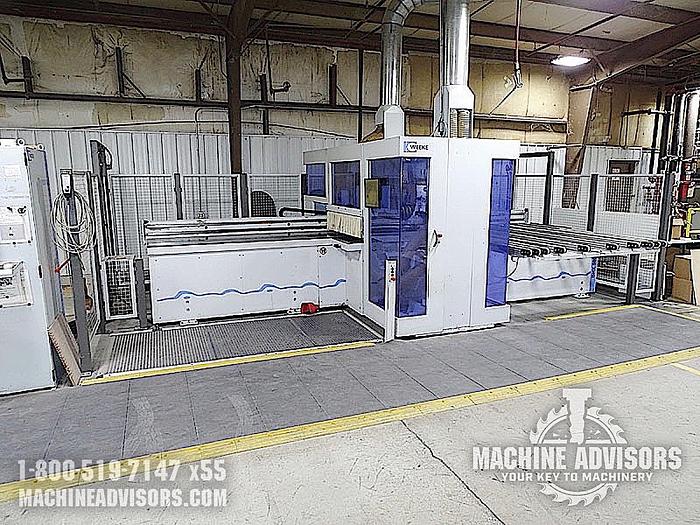

Weeke Optimat BHX 500 CNC-Processing Machining Center w/ Feed-through

Weeke Optimat BHX 500 CNC-Processing Machining Center w/ Feed-through

orCall 1-800-519-7147


This CNC processes both sides of cupboards at once, making identical or mirrored parts in one step. The concept of the Optimat BHX 500 is based on dividing the machine into three technology ranges: the loading area, processing area, and withdrawal area. This division enhances independence and optimizes processing steps in terms of quality and time.

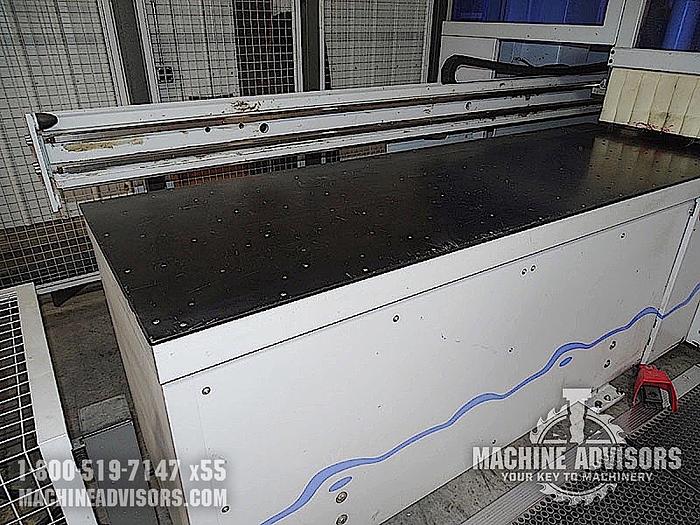

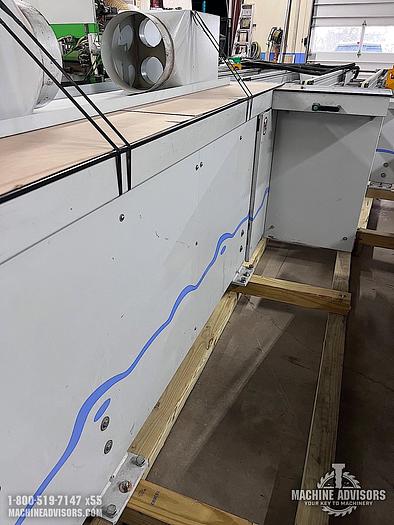

  • 33" x 100" air flotation infeed table

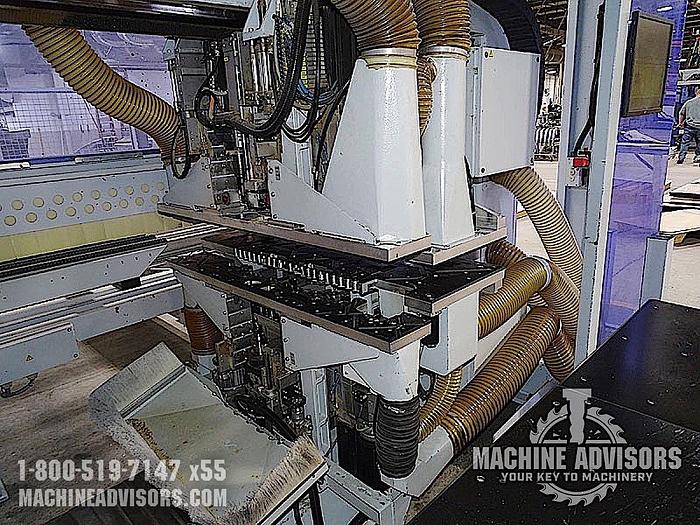

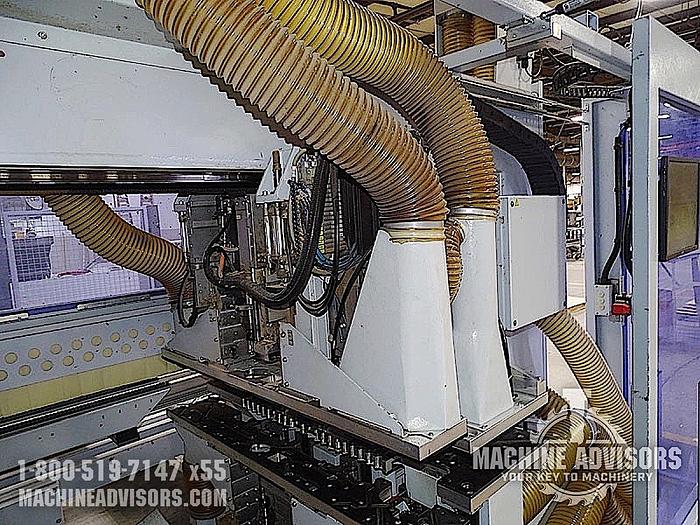

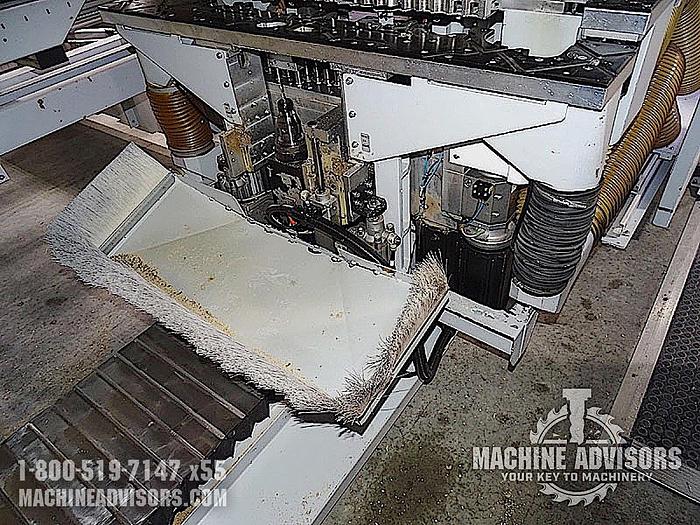

  • Top and bottom machining - routing, boring and sawing
  • (3) axes, 3-5/8" maximum thickness
  • Machines (2) work pieces at one time
  • Working area: X-axis 108", Y-axis 54"
  • Top and bottom routers: each 6 kW (8 HP), 350v, 3PH (17,340 rpm)

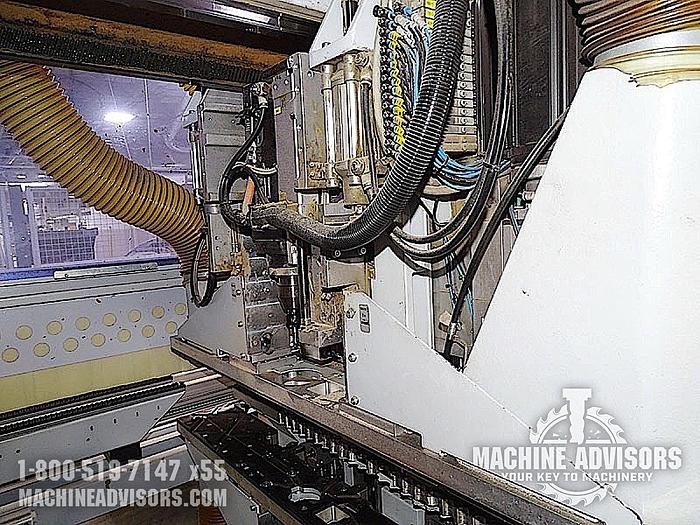

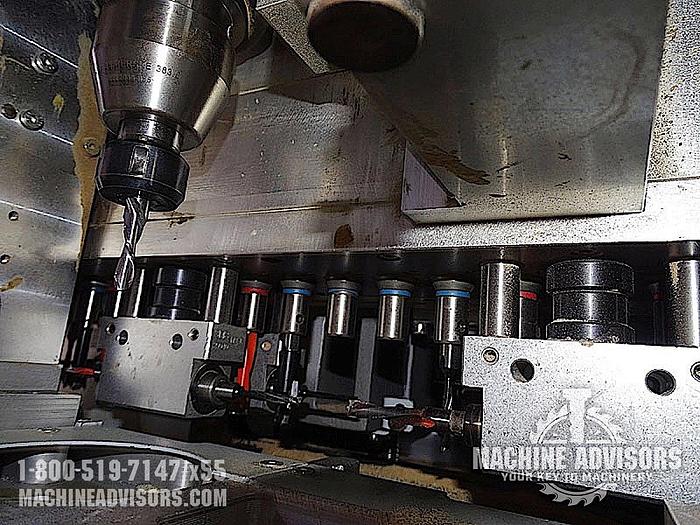

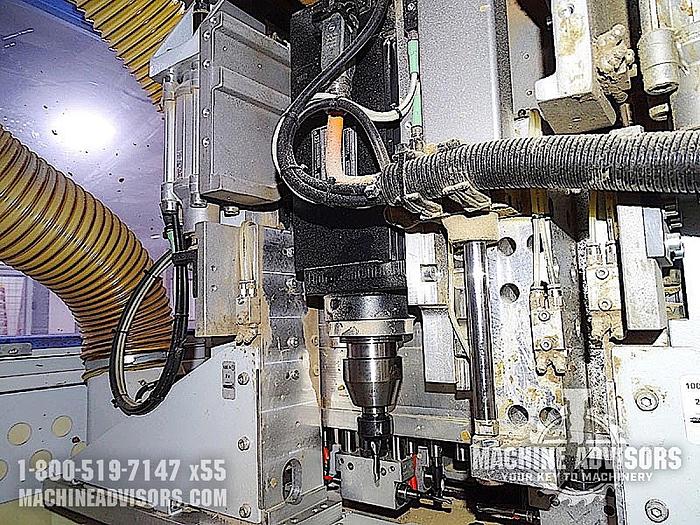

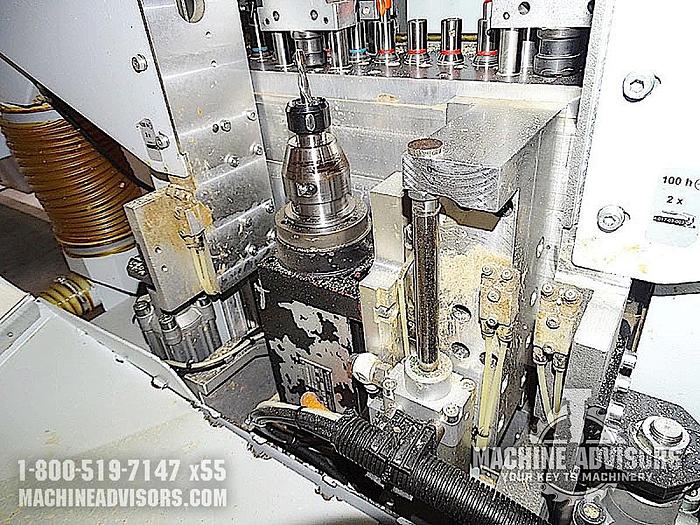

  • Top and bottom boring units: horizontal and vertical
  • Horizontal in the X: (8) spindles - (4) opposed spindle blocks (each)
  • Horizontal in the Y: (2) spindles (each)
  • Verticals in X: (36) spindles (each)
  • Verticals in the Y: (36) spindles (each)

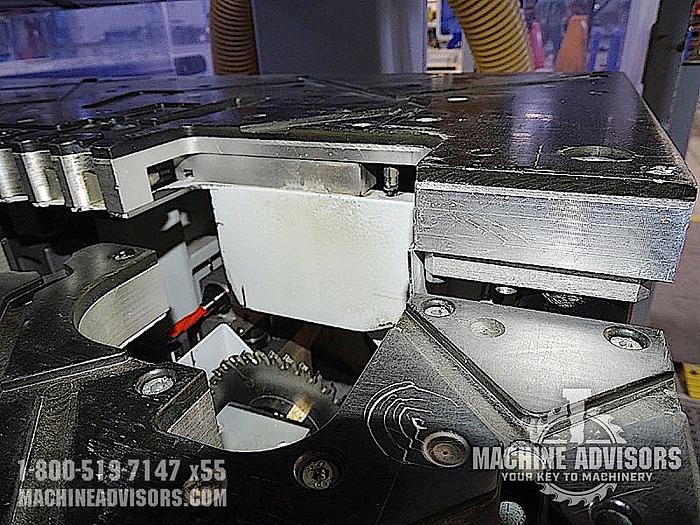

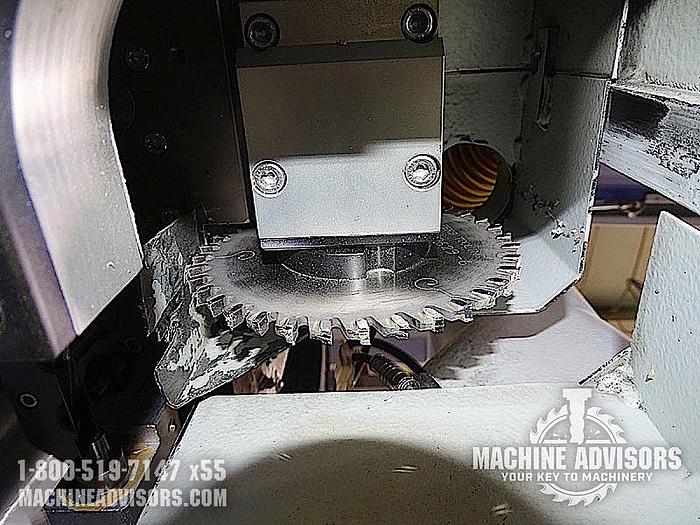

  • (2) 2.2 kW (3HP), 350v, 3PH boring motors Top and bottom scoring/sawing units
  • Operate in the X-axis: each 1.1 kW (1½ HP), 350v, 3PH

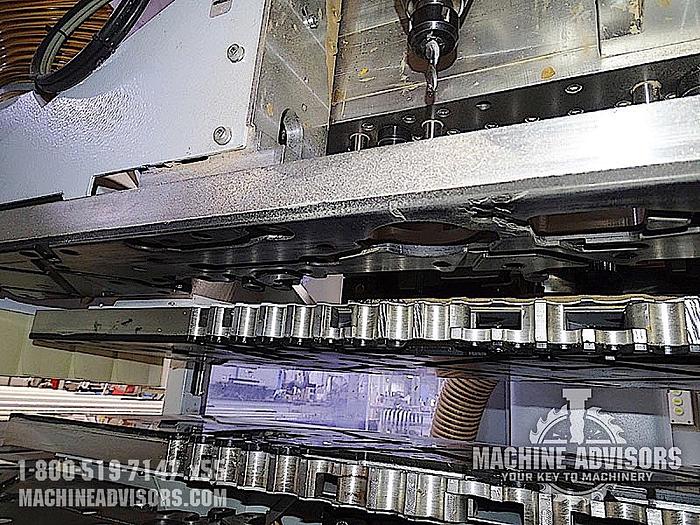

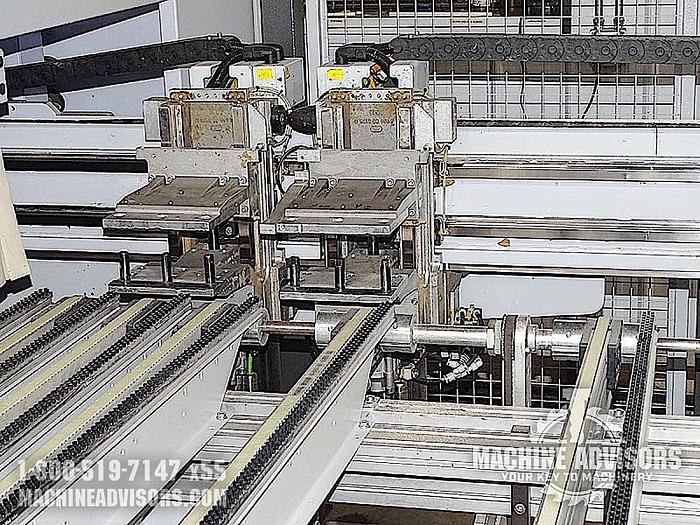

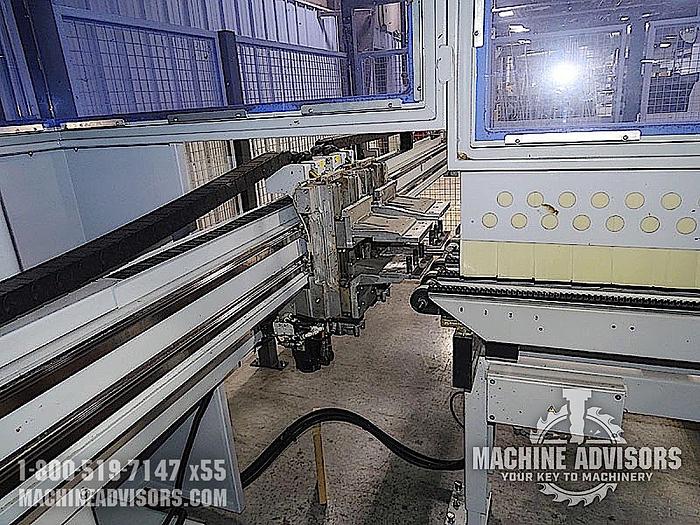

  • (2) gripper/feed units

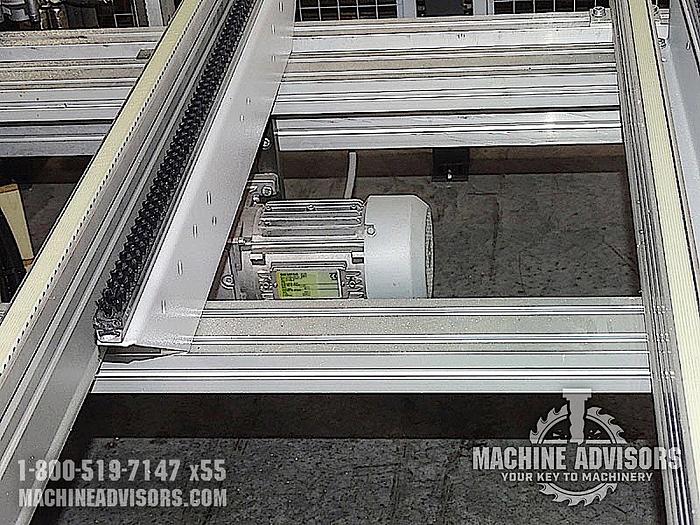

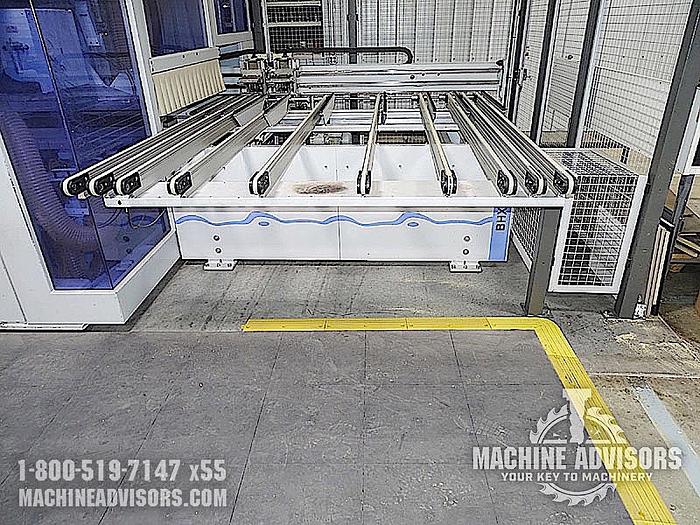

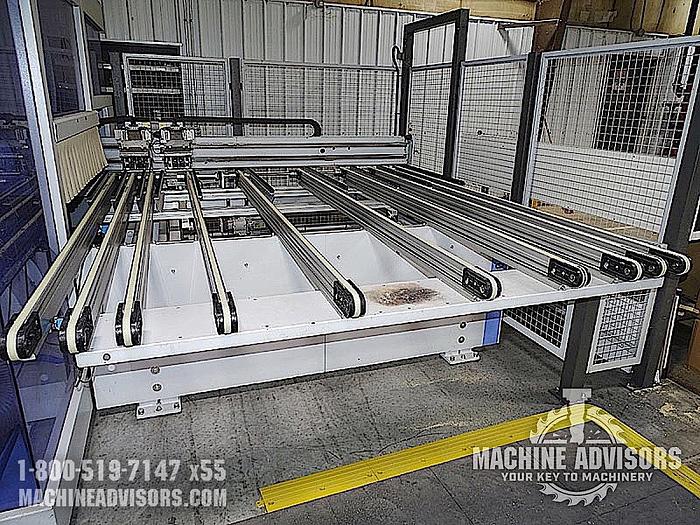

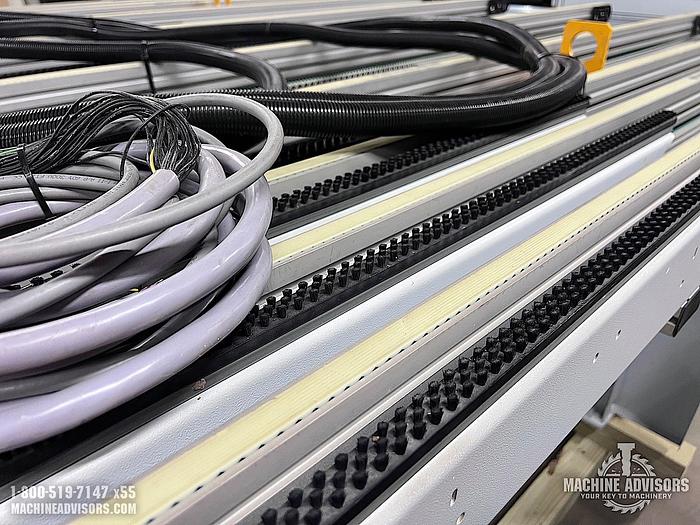

  • Lateral transfer outfeed with (9) belts

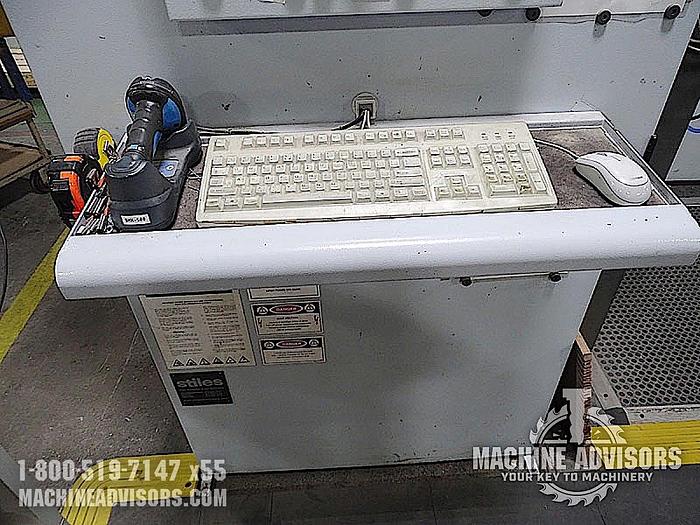

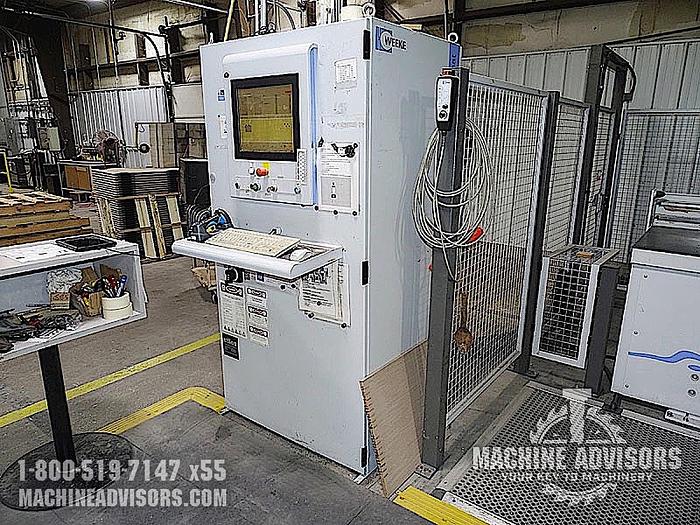

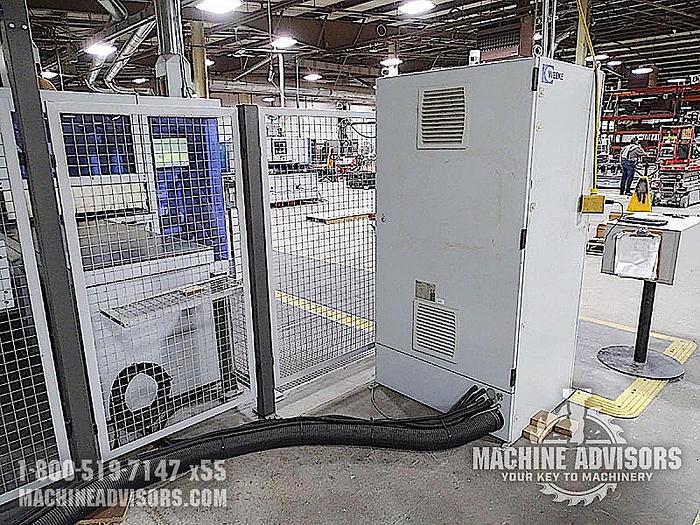

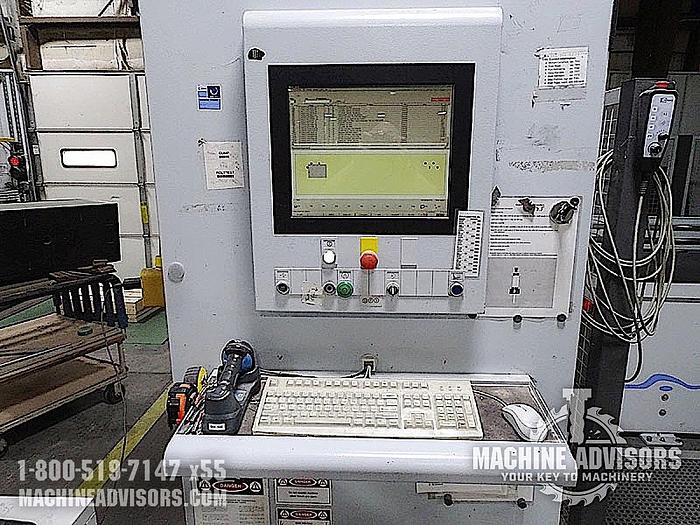

  • Free-stand controls and electrical cabinet

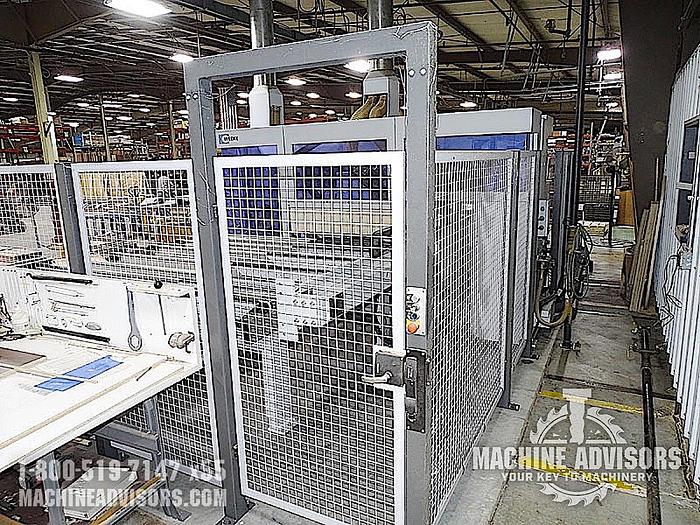

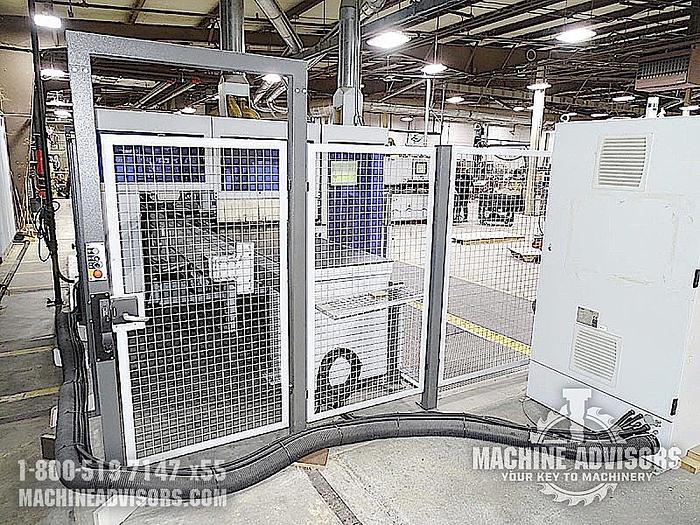

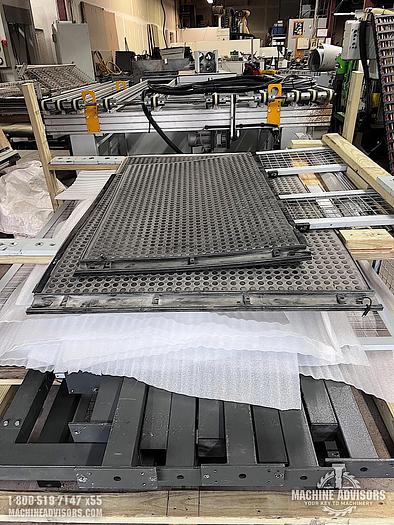

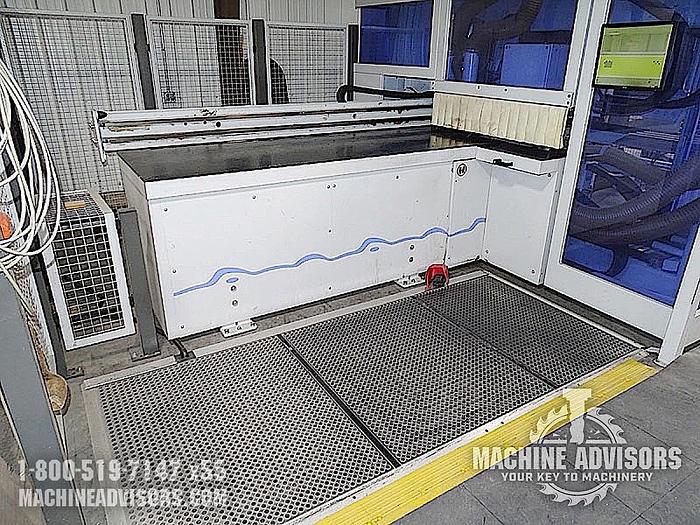

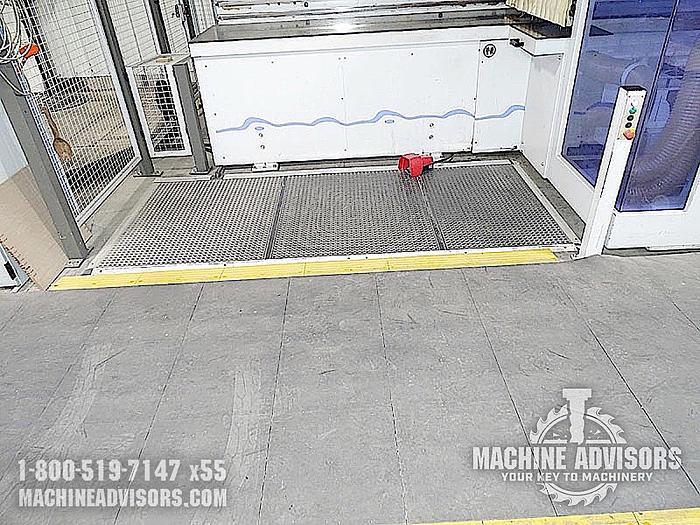

  • Includes safety cage and mats

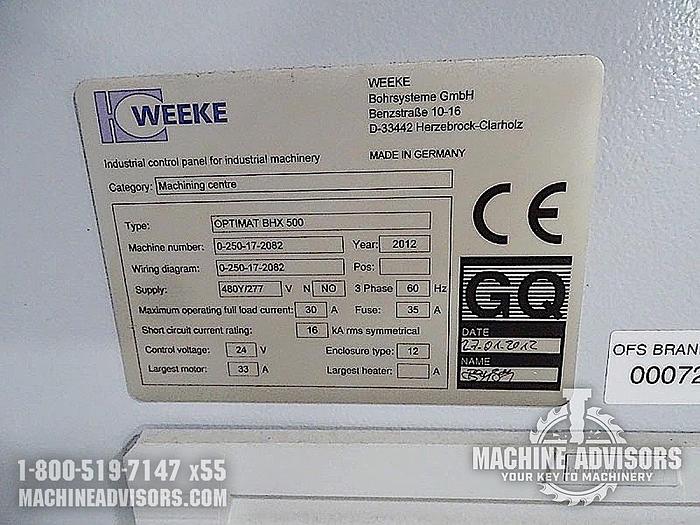

ModelOptimat BHX 500
Serial Number0-250-17-2082
Stock NumberMA-0815230830-23
Power480/277V, 60Hz, 3Ph
