2018 Homag Drillteq V-200 Vertical CNC Machining Center

2018 Homag Drillteq V-200 Vertical CNC Machining Center

orCall 1-800-519-7147

Description

A versatile CNC system suitable for operations within a compact 5 square meters. These adaptable machines serve various purposes such as drilling, trimming, and grooving, providing an optimal solution to enhance efficiency, save space, conserve energy, and reduce costs. They are especially well-suited for just-in-time production in trade businesses and other small enterprises, as well as for customized production in larger companies.


Workpiece Width Min: 70mm, Max 850mm

Workpiece Length Min:200mm, Max 3050mm

Workpiece Thickness Min: 12mm, Max 60mm


Benefits:

  • Rapid processing saves time
  • Compact design saves space
  • Easy operation saves you energy
  • Low price saves you money


Features:

  • PowerTouch operating display
  • No setup required thanks to a vacuum-free clamping system

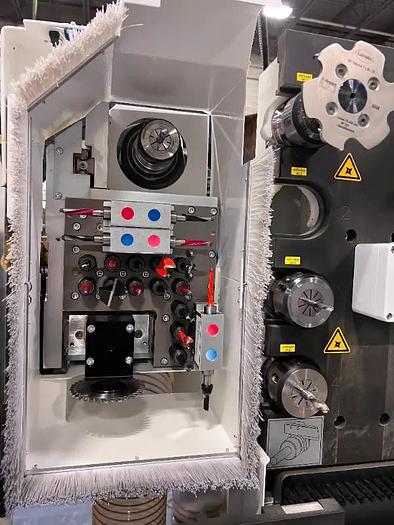

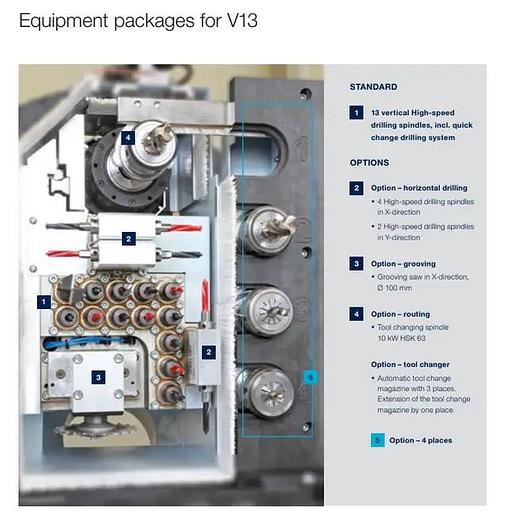

  • 13 vertical high-speed drill spindles including quick-change drill system
  • 4 Horisontal drills in X, 2 in Y
  • Grooving saw in X direction
  • Automatic tool change magazine with 4 positions


Additional Features:

  • Barcode scanner and software

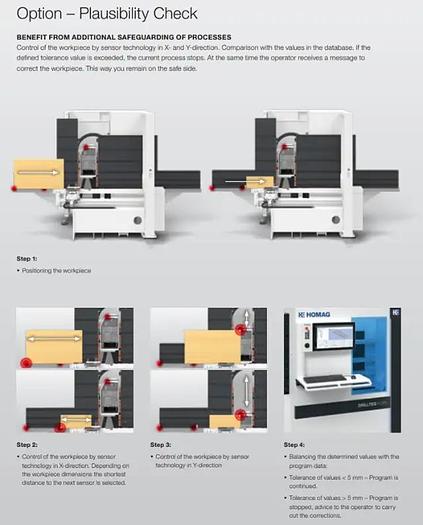

  • PLAUSIBILITY CHECK (X/Y) FOR VERTICAL
  • WORKPIECE LENGTH 3050 MM INCL. ROLLER CONVEYOR
  • 2nd Monitor at the operator side to confirm program


Purchased brand new in 2018 from Homag Canada, this machine includes rigging bars and a skid.

Specifications

ManufacturerHomag
ModelDrillteq V-200
Year2018
ConditionUsed
Serial Number0-250-66-5324
Stock NumberMA-0815230830-23
Power600V, 50Hz, 3Ph
LocationBrantford, Ontario
Dimensions (mm)3050 x 850
Net Weight (kg)1580
