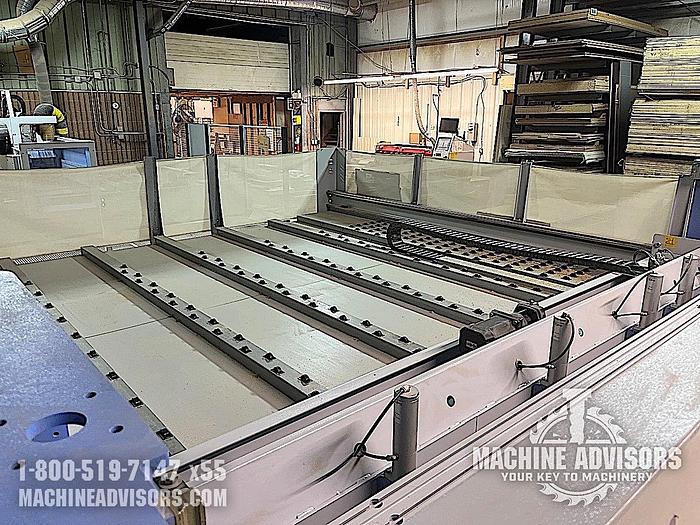

2014 Holzma "OPTIMAT HPP300/38/38/X" CNC Panel / Beam Saw

This machine is a must need addition to any shop where efficient panel production is required.

Features:

• 3,800 mm/149" cutting length
• 3,700 mm/145" cutting width
• 95 mm/3.7" main blade projection
• 16 - 492 FPM saw carriage forward speed
• 492 FPM saw carriage reverse speed
• Scoring saw 3 HP
• 280 mm/11" maximum blade diameter\
• 45 mm/1.8" bore
• Main saw 28 HP
• 380 mm/14.9" maximum blade diameter
• 60 mm/2.4" bore
• Right-hand reference fence
• Rear roller track
• Pusher beam with seven (7) pneumatic grippers
• 295 FPM forward and reverse speed
• Three (3) air floatation tables, 84" L x 32" W
• PC control with Windows OS, standard keyboard/mouse, flat screen monitor
