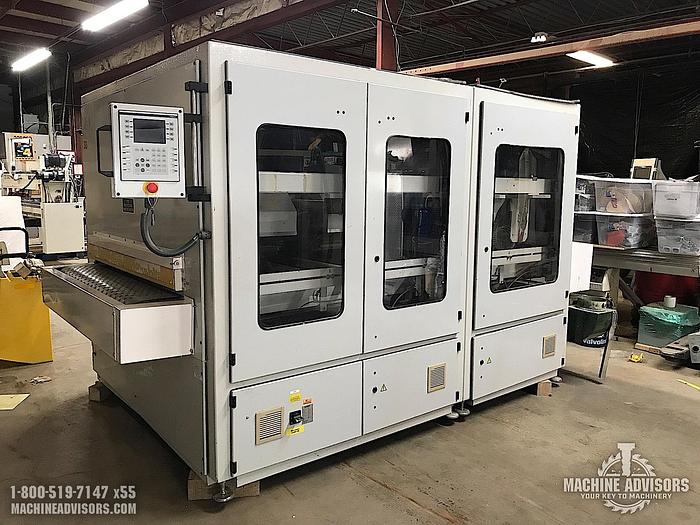

2003 UniSander 2.4.0 KV + 1.2.0 V Cross-Sanding Machine
No longer available
2003 UniSander 2.4.0 KV + 1.2.0 V Cross-Sanding Machine
Description
For high quality and versatile sanding, you'll want this machine for your woodworking operation.

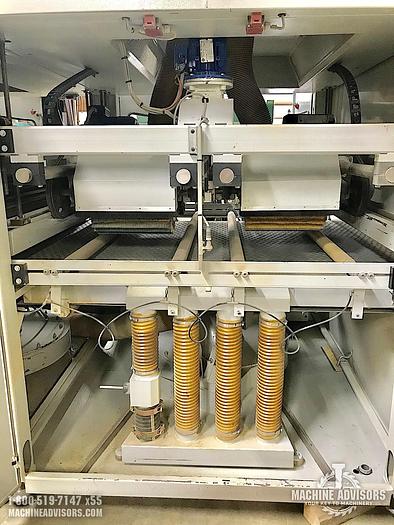

The UniSander simple principle, ensures high quality. UniSander provides extremely gentle sanding of exceptional quality. The patented cross-sanding unit is ideal for profiled workpieces and plates, including even very small items, allowing you to fully utilize the extreme versatility of the UniSander. Specifications:

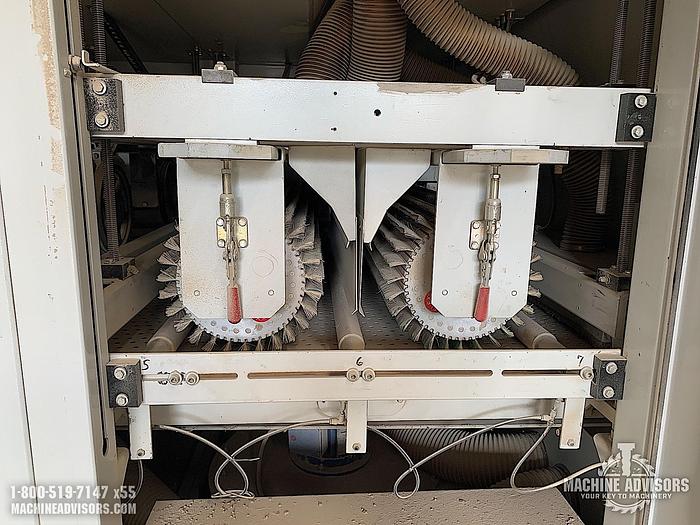

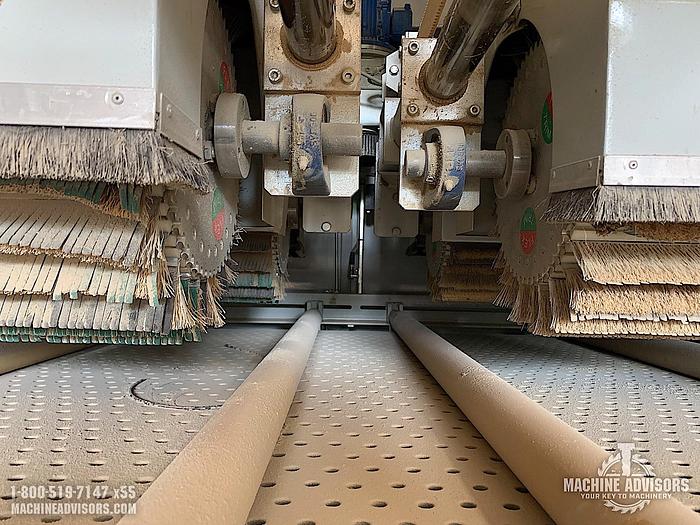

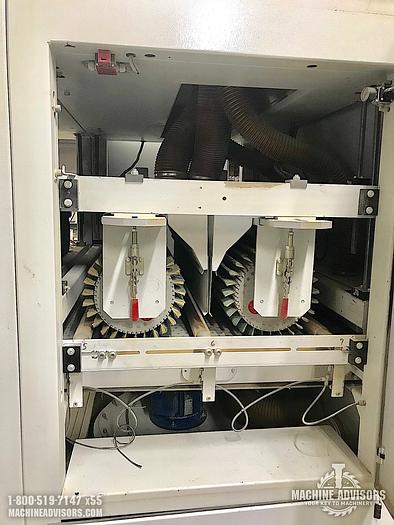

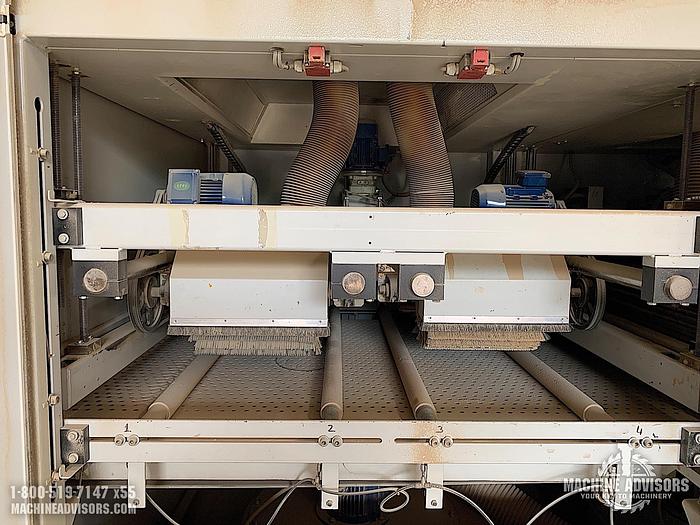

- Sanding heads: 2 running with / 2 running against
- 2 Sanding heads: 1 running with / 1 running against
- Feed rate: 3 –12 meter / min.
- Speed sanding heads: 50 – 450 Rpm
- Operation side: Right / Left
- Voltage: 3 * 400 V, 50 Hz +N+PE
- Safety: 64 A
- Sucking out: 4000 m³/hour – 25 m/sec
- Prepared for line installation.
Item size:
- Length: min 100 mm
- Height: min 5 mm - max 150 mm
- Width: 1300 mm up to 2100 mm
- The vacuum table can fix 100 x 100 mm
Features:
- Turbo Blower + Cleaning brushes
- Roller table with pressure rollers
- Vacuum table with/without pressure rollers
- Super grip belt med pressure rollers
Specifications

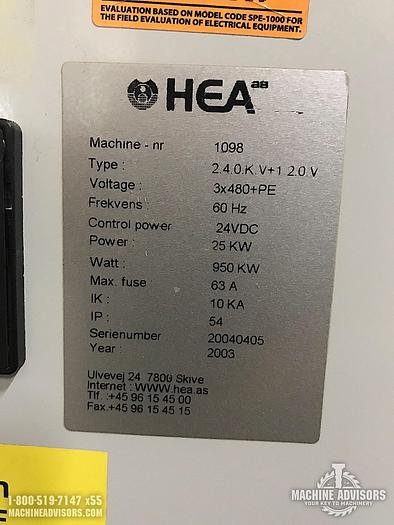

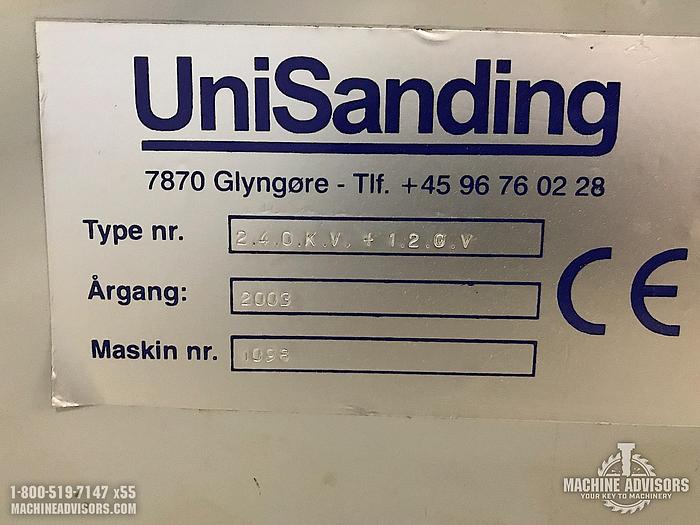

Manufacturer | Unisanding |
Model | Unisander 2.4.0KV+1.2.0V |
Year | 2003 |
Condition | Used |
Serial Number | 1098 |
Stock Number | MA-0815230830-19 |
Power | 400V, 60Hz, 3Ph |
Dimensions (mm) | 2185 x 2000 x 2000 |
