SlipCon Perfection BBDD/1350 Brush Finishing Sander
No longer available
SlipCon Perfection BBDD/1350 Brush Finishing Sander
Description
Specifications
- 53" wide capacity
- 2" Thickness capacity
- Motor for sanding rollers, 2 @ 2.5 kW (3.4 HP)

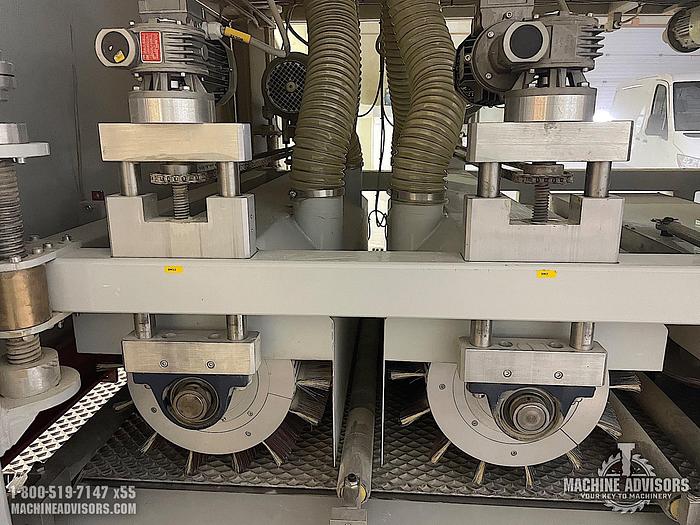

- First unit: 16" diameter rotating brush sanding roller (11" core) with 56 helical grooves, variable speed (10 – 300 RPM), clockwise/counter-clockwise rotation and separate motorized height adjustment
- Second unit: 16" diameter rotating brush sanding roller (11" core) with 56 helical grooves, variable speed (10 – 300 RPM), clockwise/counterclockwise rotation and separate motorized height adjustment

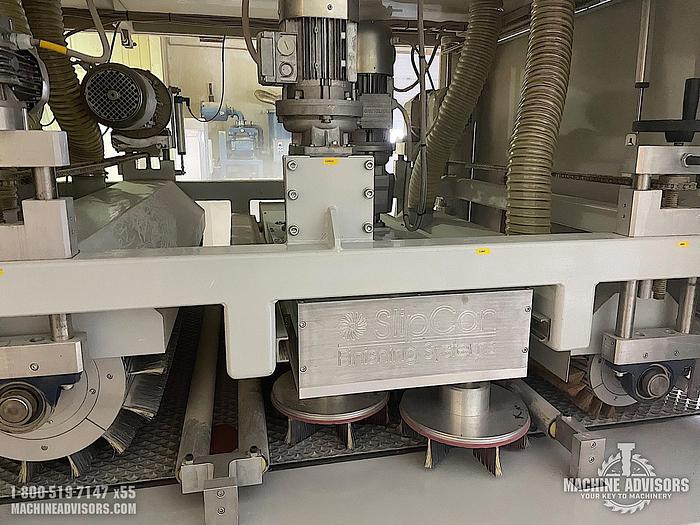

- Third unit: 11 @ 10" diameter rotating sanding discs with 24, 3" grooves mounted on a disc station that oscillates from left to right with separate height adjustment of the disc-station (to run discs only or rollers only or everything together)
- Motor for disc station, 2.5 kW (3.4 HP), 50 – 300 RPM with clockwise and counter-clockwise rotation
- Motor for disc station oscillation: 0.5 kW (0.67 HP) at 10 – 60 RPM
- 10" Diameter panel cleaning brush with 2.5 kW (3.4 HP) motor at 50 – 150 RPM controlled by separate potentiometer
- Pneumatic blow off station timed to run only when material is under unit
- Vacuum bed conveyor belt with 7.5 kW (10 HP) vacuum motor
- Feed belt with 1.8 kW (2.4 HP) variable speed motor
- Separate variable RPM adjustments for discs and rollers
- Motorized thickness adjustment
- 5 Spring loaded hold down rollers
- Motorized height adjustment of hold down rollers
- PLC with 10" color HMI touchscreen
- Eight 4" diameter dust outlets on top of machine
- Vacuum blower outlet on end of machine has a 200 mm (7.9") outlet
- Switch manual/automatic (start machine from control panel or from finishing line)
Specifications
Manufacturer | SlipCon |
Model | Perfection |
Year | 2007 |
Condition | Used |
Stock Number | MA-0815230830-22 |
Power | 480V, 40A, 60Hz, 3Ph |
